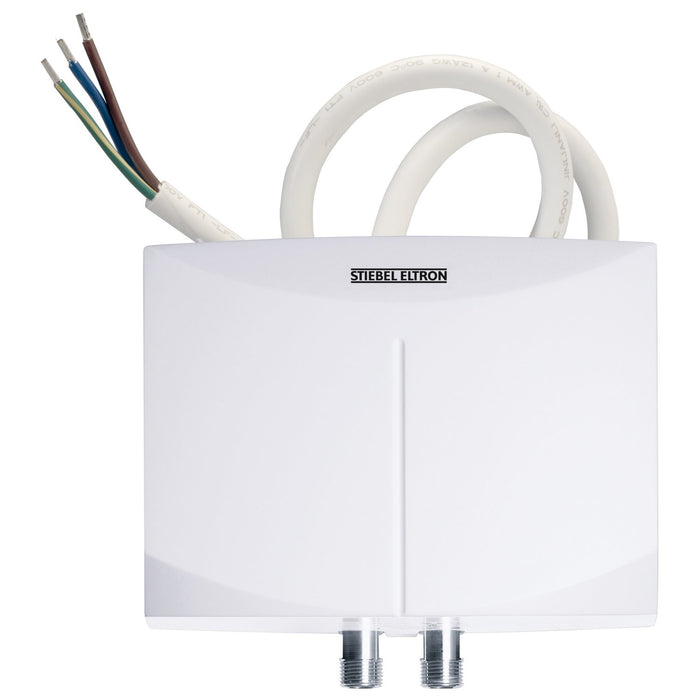

Stiebel Eltron 231045 Mini 2 Point of Use Tankless Electric Water Heater, 1.8 kW, 120V, 7-1/2" W x 6-1/2" H x 3-1/4" D

Spec Sheet Install Manual

Choosing the right Tankless Electric Water Heater for your home.

Stiebel Eltron 231045 Details

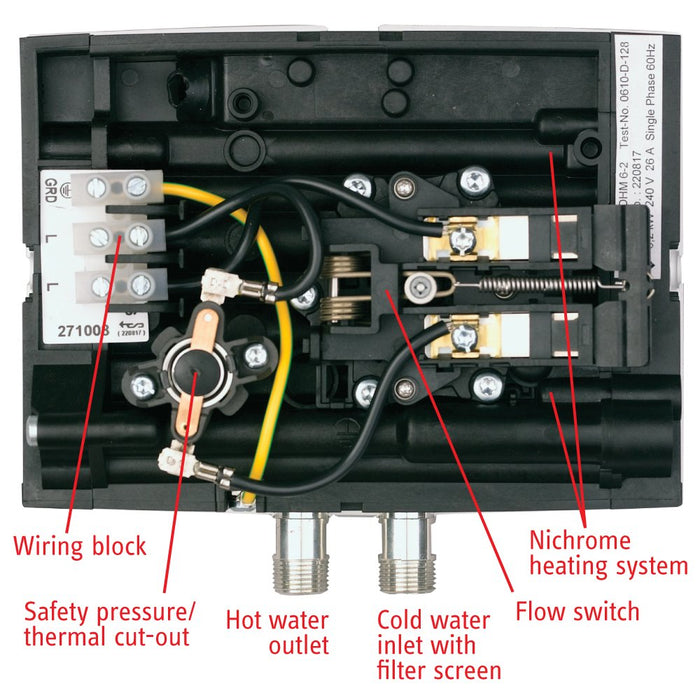

An excellent addition to any hotel, school, gas station and more, this Stiebel Eltron 231045 Mini 2 tankless electric water heater is designed for installation at the point-of-use for an energy-efficient means of supplying an unlimited supply of hot water while eliminating standby heat loss! Activated by a minimum 0.21 GPM flow rate, this unit boasts 1.8 kW of heating power and a high-limit pressure cutout with manual reset for optimum safety and peace of mind. It includes a 0.5 GPM aerator; no pressure relief valve, drains, or circulating pumps are needed. The Stiebel Eltron 231045 Mini 2 point-of-use tankless water heater features a compact, space-saving design with an attractive, high-impact polycarbonate housing.

Overall Dimensions:
Left to Right: 7 1/2"
Front to Back: 3 1/4"
Height: 6 1/2"

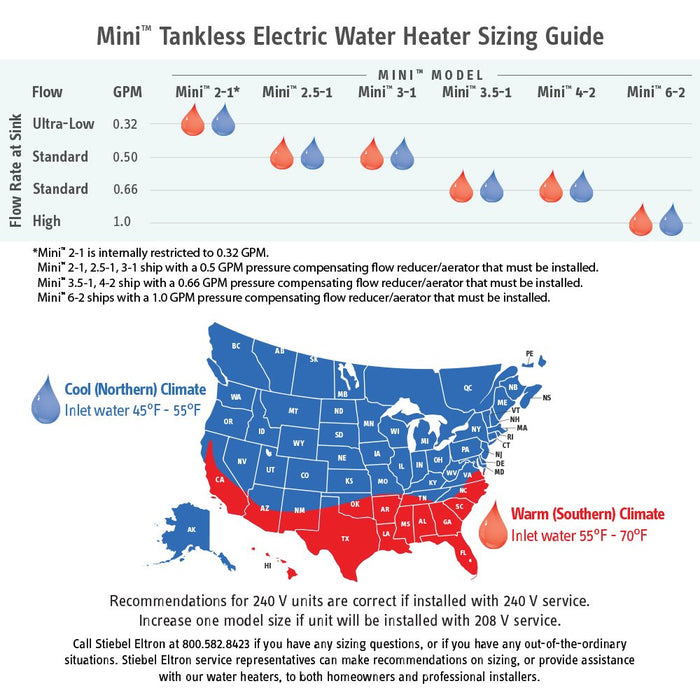

Choosing the right tankless electric water heater has never been easier than with Stiebel Eltron! If you aren’t sure which model you need for your business, simply utilize the manufacturer’s flow chart and determine which heater will serve you best!

Amps 16 Amps
Hertz 60 Hertz
Phase 1
Voltage 120
Wattage 1.8 Kilowatts
Flow Rate 0.21 GPM
Made in America Yes
Power Type Electric
Style Tankless
Type Water Heaters
Usage Single Point of Use

Width 7 1/2 Inches
Depth 3 1/4 Inches
Height 6 1/2 Inches
