Upgrades any ESP-LX Series Controller to an IQ Central Control Satellite Controller
Network Communication Cartridges upgrade ESP-LXME, ESP-LXMEF, ESP-LXD and ESP-LXIVM Series standalone controllers to IQ satellite controllers capable of being controlled by the IQ Platform. The communication cartridge connects to the back of the controller faceplate and provides the communication link between the IQ central computer and the remote site controllers.
Features
- IQ is the perfect irrigation control solution for parks departments, school districts, property managers, landscape maintenance contractors and water managers.
- IQ can manage small single-controller sites as well as large multi-controller sites. IQ NCC cartridges are compatible with the ESP-LXME Controller with 1 to 48-station capacity, ESP-LXD Decoder Controller with 1 to 200-station capacity, ESP-LXIVM Controller with 1 to 60-station capacity and ESP-LXIVM Pro with 1 to 240 station capacity
- IQ NCC cartridges are initially configured through a setup wizard provided in the ESP-LX Series Controller IQ Settings dial position. Communication setting parameters are configured through the IQ software or the NCC Configurator Software designed for netbook/laptop use on the job site
- Single controller sites would use an IQ NCC cartridge configured as a Direct satellite. A Direct satellite has an IQ central computer communication connection but no network connections to other satellites in the system
Server & Client Satellites
- Multi-controller sites would use one IQ NCC cartridge configured as a Server satellite and the other NCC cartridges configured as Client satellites. The Server atellite has an IQ central computer communication connection and shares this communication connection with the Client satellites though high-speed data cable or radios. The communication connection between Server and Client satellites is called the IQNet™
- Satellites on a common IQNet can share weather sensors and master valves
- Server and Client satellites using high-speed data cable for IQNet communication require installation of an IQ CM Communication Module. Server and Client atellites using radio communication for IQNet communication require installation of an IQSSRADIO radio. Each cartridge kit includes cables to connect the NCC cartridge to connection module and/or radio
Specs
- Includes embedded 4G Cellular Data Modem with antenna connector
- Includes internal antenna for plastic controller enclosures (optional 4G external antenna available for metal case controller enclosures)
- Requires 4G Cellular data service plan purchased from Rain Bird with cellular service included
- Used for Direct or Server Satellite applications requiring wireless Cellular communication with the IQ central computer
- Available with 1st year of communication service included
- 4G Cartridge with included communication service not offered in all areas
- Includes embedded Ethernet Network Modem with RJ-45 port
- Includes RJ-45e patch cable (requires LAN network static IP address)
- Includes RS-232 Port for IQ Direct Cable or External Modem communication connection to the IQ central computer, and external modem cable (IQ Direct Cable provided with IQ Software Package)
- Used for Direct or Server Satellite applications requiring direct cable connection or external modem (radio or other 3rd-party device) communication with the IQ central computer, and for Client Satellite applications requiring IQNet high-speed data cable or radio communication with the Server Satellite
Model Comparison
-

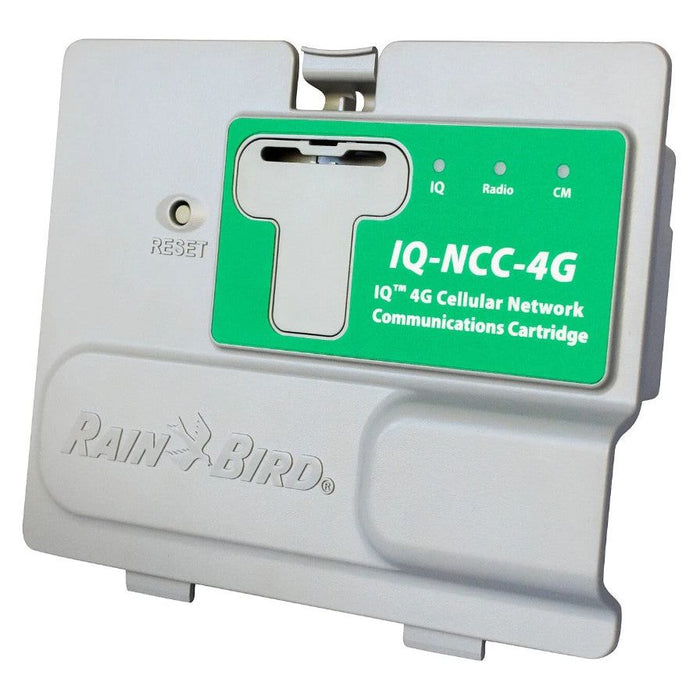

IQ4G-USA: 4G Cellular Data Modem with antenna connector, for use in USA.
-
IQ-NCC-EN: Ethernet Network Modem with RJ-45 port
-
IQ NCC-RS RS232: RS-232 Port for IQ Direct Cable or External Modem communication connection to the IQ central computer, and external modem cable
-
IQ4G International versions: 4G Cellular Data Modem with antenna connector. Add suffix to specify region. Add: "-CAN" (Canada), "-EUR" (Europe), "-AUST" (Australia), "-INTL" (International/Other)
Network Communication Accessories
-
IQ-FSCM-LXME: IQNet high-speed data cable connections for ESP-LXME Controller
-
IQ-CM-LXD: IQNet high-speed data cable connections for ESP-LXD Controller
-
IQ SS-Radio: IQNet wireless radio communication between Server and Client satellite controllers
