Install Manual
This bundle includes the i12-NG Tankless water heater, 2.5" to 3" Stainless steel adapter, and the 3" Horizontal vent kit.

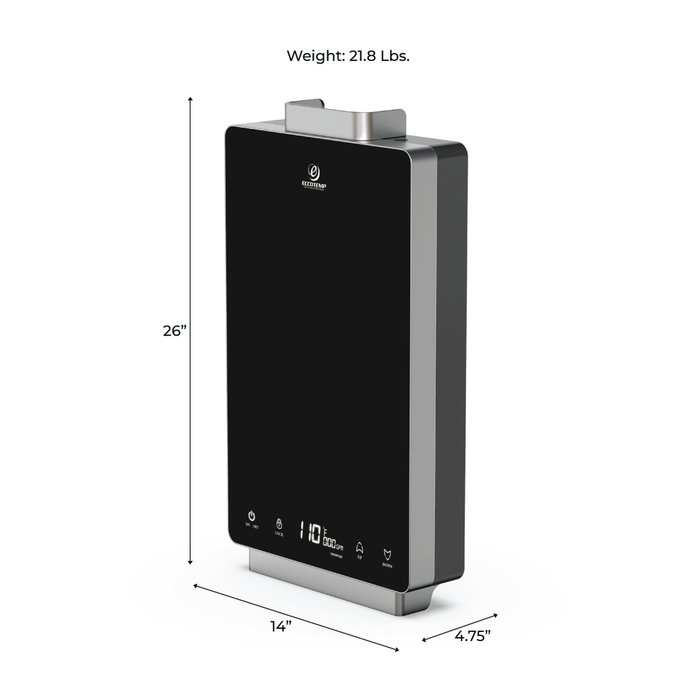

The Eccotemp i12 Natural Gas 4 Gallon Per Minute (GPM) Tankless Water Heater has a new revolutionary design, making it unlike any other Tankless Water Heater on the market today. The Eccotemp i12-NG is perfect for vacation cabins, cottages, and smaller homes. This model features a sleek, black tempered glass front paneling, fully automatic temperature controls for precision, and a touch screen with an LED temperature display that shows output temperature and GPM flow. The Eccotemp i12-NG is also equipped with child locking technology. The Eccotemp i12-NG is a gas-powered, indoor model designed for small to medium hot water production where you need more than one hot water application at the same time. This model also offers a 35 to 40-degree Fahrenheit temperature rise when operating at a flow rate of 4 GPM and a 77-degree Fahrenheit temperature rise at 1.5 GPM. This bundle comes with a Horizontal Stainless Steel Vent Kit, ready to install and with its 120-volt UL listed power cord powering the internal exhaust fan and digital display. The Eccotemp i12 only pulls about 2 watts while idle and 1.07 Amps during operation, making it an ideal energy efficient appliance.
Product Features:
- Activates only on demand and no pilot light needed, reducing energy consumption
- Easy to use LED display controls
- Safe electronic ignition system

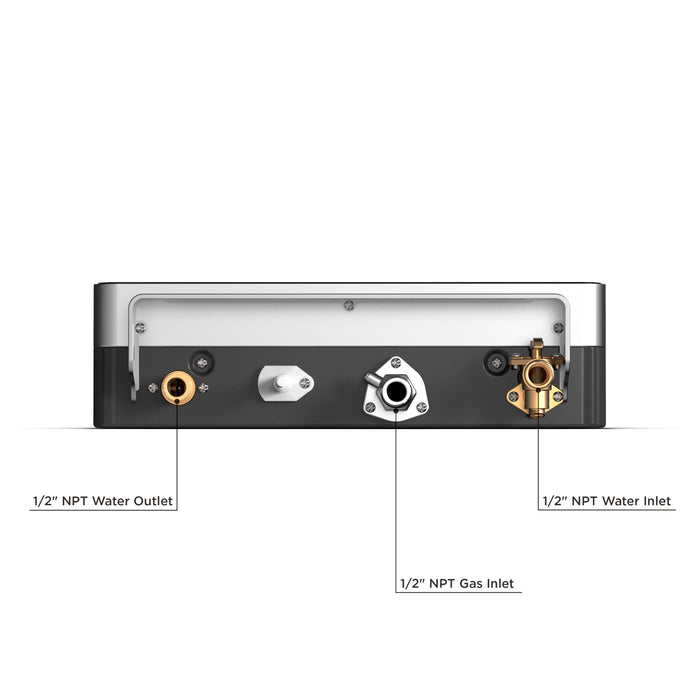

- Uses standard 1/2" NPT water fittings
- 4 GPM flow capacity
- Energy factor: 79%
- Hot water capacity range: 0.6 - 4.8 GPM
- Maximum/Minimum gas rate: 25,000 - 80,000 BTUs
What’s Included:
- 3” Stainless Steel Horizontal Vent Kit
- 120-volt UL Listed Power Cord
- 2.5”-3” Stainless Steel Adapter
- Hardware Pack
- Instruction Manual
- 2-Year Limited Warranty
2.5 to 3" Stainless steel adapter
This stainless steel adapter can be used with the Eccotemp i12 series taking it from a 2.5" to a standard 3" vent system. Total length is 6". Note, you may need to purchase a straight pipe piece with a backflow preventer to ensure that freezing air does not come back through the vent pipe.

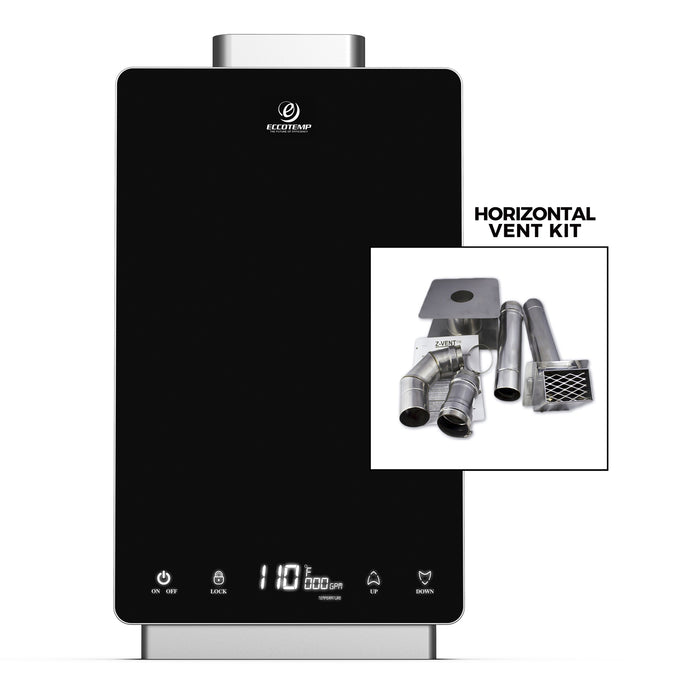

Eccotemp Horizontal Vent Kit 3"
This 3" single walled Z-Flex Horizontal vent kit is for horizontal installations only. You will need to purchase additional Z-Vent straight pipe. You will need to determine how many additional feet as well as need a condensation drain. Also, remember a max vent run of 20’ subtracting 4’ for every 90 Degree elbow in the run.
- (1) Termination Hood with backflow preventer
- (1) 3" x 90 Degree Elbow
- (1) 3" x 1' Pipe
- (1) 3" Wall Thimble
- (1) 3" Paloma Appliance Adapter
Made of AL-294C stainless steel. This is Category II/III and UL approved.
The Eccotemp i12 has been tested for use at elevations up to 2000 feet. Installation and use of the Eccotemp i12 above 2000 feet may affect overall product efficiency and performance. Installation and use of the Eccotemp i12 above 5000 feet is not recommended.
IMPORTANT NOTE: Cannot be used for HYDRONIC SYSTEM, RECIRCULATING, or FLOOR HEATING.
Please Note: Failure to clean and descale your water heater quarterly can result in lime and sediment build up within the heater, which can void your warranty!
