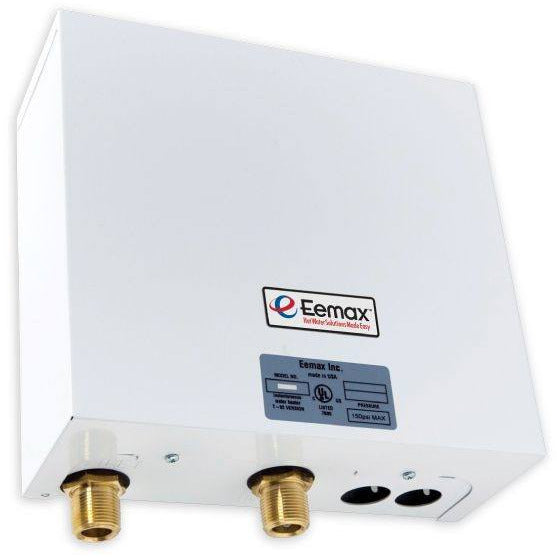

Eemax 23KW Tankless Electric Water Heater

Spec Sheet Install Manual

Choosing the right Tankless Electric Water Heater for your home.

Features

• On demand hot water - no delay
• Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
• 99% Efficient, .99 energy factor
• Endless hot water - No storage capacity to deplete
• Reduces installation cost and material - No T&P valve required (check local codes)
• Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
• Easy Installation - Simple NPT fittings that require no soldering. Unit mounts directly to the wall with common hardware.
• Prevents Legionella bacteria growth
• Reduces calcification and sedimentation
• Field Serviceable - All major component are field replaceable and readily available
• Proudly made In the USA

California P65 Warning

Specifications

Performance

• GPM Turn On: 0.7
• Physical Max Volume: 3.0 gpm
• Minimum Operating Temp: N/A
• Max Operating Temp: 140°
• Minimum Operating Pressure: 25 PSI
• Max Pressure Rating: 150 PSI

Electrical

• Power: 23kW
• Volts: 240V
• Phase: Single
• Amperage: 96 (2 x 50)
• Recommended Wire Size: 2 sets of 6 AWG

Physical

• Height: 10.12 inches
• Width: 10.68 inches
• Depth: 4.32 inches
• Weight: 10.5 lbs
• Color: White
• Cover Material: Powder coated
• Element Type: Replaceable cartridge - bare wire
• Element Material: Ni Chrome

Plumbing

• Water Connection: 3/4''
• NPT or Compression: NPT
• Plumbing Configuration: bottom
• Hot or Cold Feed: Pre-heated or Cold water Inlet
• Aerator Supplied: No
• # of Aerators Supplied: N/A
• GPM Flow Rate of Aerator Supplied:: N/A

Performance

GPM Turn On: 0.7
Physical Max Volume: 3.0 gpm
Minimum Operating Temp: N/A
Max Operating Temp: 140°
Minimum Operating Pressure: 25 PSI
Max Pressure Rating: 150 PSI
Electrical

Power: 23kW
Volts: 240V
Phase: Single
Amperage: 96 (2 x 50)
Recommended Wire Size: 2 sets of 6 AWG

Height: 10.12 inches
Width: 10.68 inches
Depth: 4.32 inches
Weight: 10.5 lbs
Color: White
Cover Material: Powder coated
Element Type: Replaceable cartridge - bare wire
Element Material: Ni Chrome
