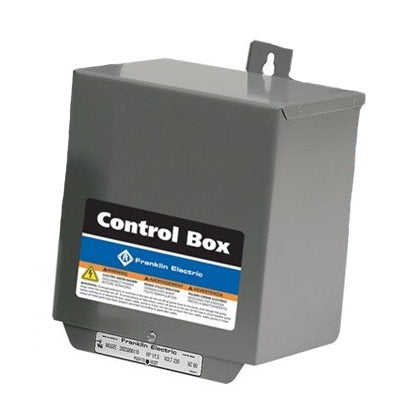

Franklin single-phase controls are designed and optimized specifically for Franklin Electric motors. Controls are an integral part of a submersible motor power system. Rigorous component testing ensures the most robust products in the industry.

QD & CRC Features:

  • Exclusive Franklin Electric QD Relay
  • Suitable for outdoor mounting
  • Capacitor Start
  • Run Capacitor (Only CRC Boxes)
  • UL listed for US and Canada (60 Hz models)

Standard, Deluxe & XL Deluxe Features:

  • Heavy duty box-type terminals accept up to AWG #2 wire
  • External access to overload resets
  • Multiple-size knockouts
  • User-friendly connection diagrams
  • Easy access to grounding lugs

              Volts 230 VAC
              Control Box Max Amps 13.2 A
              Rating 2 hp / 1.5 kW
              Control Box Nominal Amps 10 A
              Hz 60 Hz
              Input Phase Single-Phase
              Input Voltage 230 VAC
              Control Box Type Standard
              Enclosure Rating Type 3R
              Minimum Operating Temperature 14 °F
              Maximum Operating Temperature 122 °F
              Storage Temperature -13° to 144 °F (-25° to 65 °C)

              Product Length 8.03 "
              Product Width 5.84 "
              Product Height 10.5 "
              Product Weight 6.75 lb
              Product Weight with Pack 7 lb
              Carton Length 8.13 "
              Carton Width 6.25 "
              Carton Height 11.25 "
              Bottom Knockout Two 1.31" diameter holes for 1" conduit connection; One 1.75" knockout for 1.25" conduit; One 0.88" knockout for 0.5" conduit connection
