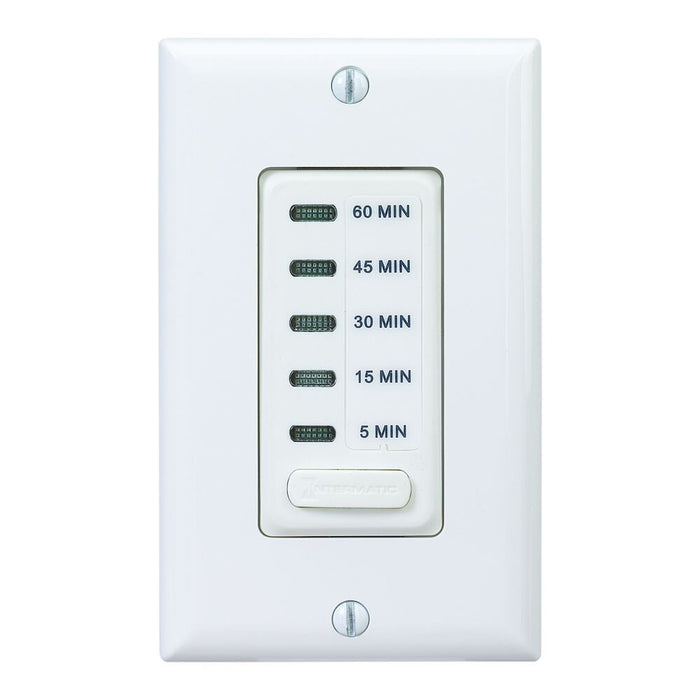

Intermatic EI205W Electronic Countdown Timer, White

Specifications | Instructions

Intermatic EI205W Electronic Countdown Timer, 120 VAC, 60 Hz, Preset Times 5,15,30,45 Minute,1 Hour, Without Hold, White

This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

• No programming required
• Provides silent operation in time ranges from five minutes to 1 hour
• Single-button time selection, with some models having a HOLD mode, for continuous ON operation
• Replaces single-pole switches in a variety of applications
• Incandescent/fluorescent/CFL/LED compatible
• For use with decorator-style wall plate (not included)
• Requires neutral connection

Applications:

• Air Movement & Ventilation
• Indoor Lighting Control

Specifications:

• Color: White
• Operation Mode: Countdown
• Hold Mode Included: No
• Countdown Time: 1 Hr
• Neutral Connection Required: Yes
• Warranty Period: 1-Year limited
• Ballast Fluorescent: 8 A, 1000 VA
• Electronic Ballast LED: 500 VA
• Motor Three Phase Ranges: 1/4 HP
• RoHS Certification: Yes
• Tungsten Incandescent: 1000 W
• Operating Temperature Max (°F): 104
• Operating Temperature Min (°F): 32
• Input Voltage Range(s): 120 VAC, 60 Hz
• Wiring Configurations: Single
• Wall Plate Configurations: Single-Gang
• Mechanism Type: Digital/Electrical
• Time Presets: 5 min, 15 min, 30 min, 45 min, 1 hr
• Application Compatibilities: CFL, Fluorescent, Incandescent, LED
• Category: Electronic Countdown Timers Web

Color White
Input Voltage Range(s) 120 VAC, 60 Hz
Mechanism Type Digital/Electrical
Operation Mode Countdown
Wiring Configurations Single
Hold Mode Included No
Wall Plate Configurations Single-Gang
Countdown Time 1 hr
Neutral Connection Required Yes
Time Presets 5 min, 15 min, 30 min, 45 min, 1 hr
Warranty Period 1-Year limited
Application Compatibilities CFL, Fluorescent, Incandescent, LED
Ballast Fluorescent 8 A, 1000 VA
CAProp65Message
Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin China
Electronic Ballast LED 500 VA
Motor Load Ratings (Ranges) 1/4 HP
Resistive Heater 15 A, 1800 W
RoHS Certification Yes
Tungsten (Incandescent) Range(s) 1000 W
Tungsten Incandescent 1000 W
Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104
Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32

Product Depth (in) 1.438
Product Depth (mm) 36.5
Product Height (in) 4.125
Product Height (mm) 104.8
Product Width (in) 1.688
Product Width (mm) 42.93
