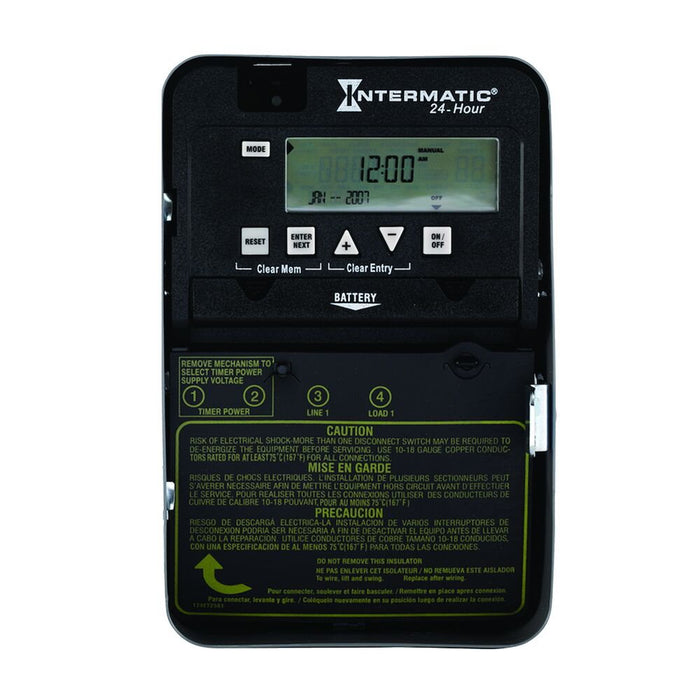

Intermatic ET1105C 24-Hour 1 Circuit Electronic Control, 120-277 VAC

Specifications | Instructions

Intermatic ET1105C 24-Hour 1 Circuit Electronic Control, 120-277 VAC, SPST, Indoor Metal Enclosure

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.

Features:

• Selector switch to determine input voltage between 120-277 VAC
• Up to 28 events total
• To-the-minute accuracy
• Temporary override or permanent manual override
• Automatic Daylight Saving Time adjustment
• Astronomic models enable dusk-to-dawn scheduling

Applications:

• Indoor Lighting Control
• Machinery & Pump Controls
• Timing/Scheduling ON/OFF

Specifications:

Backup Type Battery
Input Voltage Range(s) 120-277 VAC, 50/60 Hz
MaximumOnOffOperations 14
Number Of Circuits 1
Operation Mode 24 hour
Switch Type SPST
Enclosure Type Indoor type 1 metal
Minimum ON/OFF Times 1 min
Electronic Series ET1100 Series
Maximum ON/OFF Times Indefinite
Maximum Power Consumption (W) 6 W
Wiring Option Terminals
OnOffOperations 14
Warranty Period 1-Year limited
Battery Service Type Field Serviceable
Battery Type AAA
CAProp65Message Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin China
Daylight Savings Adjustment Automatic
Electronic Ballast Load Ratings Ranges 1 A, 120-277 VAC
Inductive Load Ratings NO Ranges 30 A, 120/240 VAC
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Magnetic Ballast (NO) Range(s) 20 A, 120-277 VAC
Motor Load Ratings NO Ranges 1 HP, 120 VAC; 2 HP, 240 VAC
Resistive (NO) Range(s) 20 A, 28 VDC; 30 A, 120/240 VAC
Tungsten (NO) Range(s) 5 A, 120/240 VAC
Voltage Selection Type Selector Switch
Wire Size Max #8 AWG
Wire Size Min #14 AWG
Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40

Product Depth (in) 3.4375
Product Depth (mm) 87.3
Product Height (in) 7.875
Product Height (mm) 200
Product Width (in) 5.125
Product Width (mm) 130.2
