Specifications | Instructions

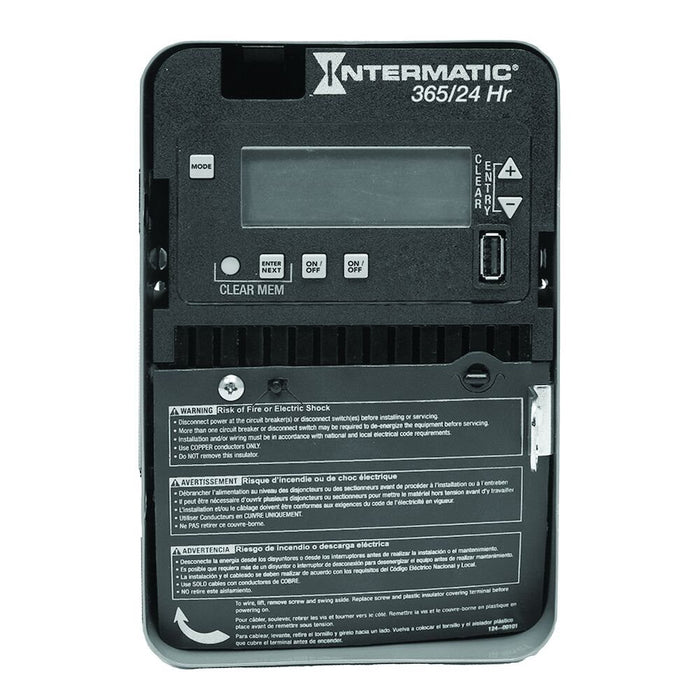

Intermatic ET2125C 24-Hour/365 Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST/DPST, Indoor Metal Enclosure

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Features:

  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy

    Applications:

    • Indoor Lighting Control
    • Machinery & Pump Controls
    • Timing/Scheduling ON/OFF

    Specifications:

    Backup Type Supercapacitor Input Voltage Range(s) 120-277 VAC, 60 Hz
    Maximum ON/OFF Operations 96 Number Of Circuits 2
    Operation Mode 24 hour Switch Type 2xSPST, 1xDPST or Pulse
    Enclosure Type Indoor type 1 metal Minimum ON/OFF Times 1 min
    Operation Features Holiday Electronic Series ET2000 Series
    Maximum ON/OFF Times Indefinite Maximum Power Consumption (W) 5 W
    Minimum Pulse Time 2 sec ON/OFF Operations 96
    Warranty Period 2-Year limited Wiring Option Terminals
    Application Compatibilities LED Backup Protection Time 100 Hour
    Backup Restoration Time 30 Minutes Category Electronic Controls Web
    Daylight Savings Adjustment Automatic Electronic Ballast LED 10 A
    Electronic Ballast Load Ratings NO Ranges 10 A, 120/277 VAC Inductive Load Ratings NO Ranges 30 A, 120-240 VAC
    Knockout Dimensions Back (1) combination 1/2" - 3/4" Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
    Magnetic Ballast (NO) Range(s) 20 A, 120-277 VAC Maximum Pulse Time 2 sec
    Motor Load Ratings NO Ranges 1 HP, 120 VAC; 2 HP, 240 VAC Resistive (NO) Range(s) 20 A, 28 VDC; 30 A, 120-240 VAC
    Tungsten (NO) Range(s) 5 A, 120-277 VAC Voltage Selection Type Auto Voltage
    Wire Size Max #8 AWG Wire Size Min #14 AWG
    Operating Temperature Max (°C) 40 Operating Temperature Max (°F) 104
    Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
    Product Depth (in) 3.4375 Product Depth (mm) 87.3
    Product Height (in) 7.875 Product Height (mm) 200
    Product Width (in) 5.125 Product Width (mm) 130.2
    Unit Carton Height (in) 8 Unit Carton Length (in) 5.236
    Unit Carton Weight (lb) 2.75 Unit Carton Width (in) 3.15

    General
    Model Number EI600WC
    Description 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 20A, White
    UPC Code 078275101418
    Brand Intermatic
    Country of Origin (Intermatic) CHINA
    Warranty Period 5-Year limited
    Application Compatibilities Incandescent; Fluorescent; CFL; LED
    Harmonized Code 9107.00.8000

    Control Specifications
    Minimum ON/OFF Times 1 min
    Maximum ON/OFF Operations 40
    Operation Mode 24-hour
    Operation Features Astronomic; Daylight Saving Time
    Mechanism Type Digital/Electrical
    Backup Type Battery
    Backup Protection Time 3 Years
    Battery Type CR2 Lithium
    Battery Service Type Replaceable

    Mechanical Specifications
    Wall Plate Configurations Single-Gang

    Product Dimensions (H x W x D) in 4.125 x 1.75 x 1.8125 in
