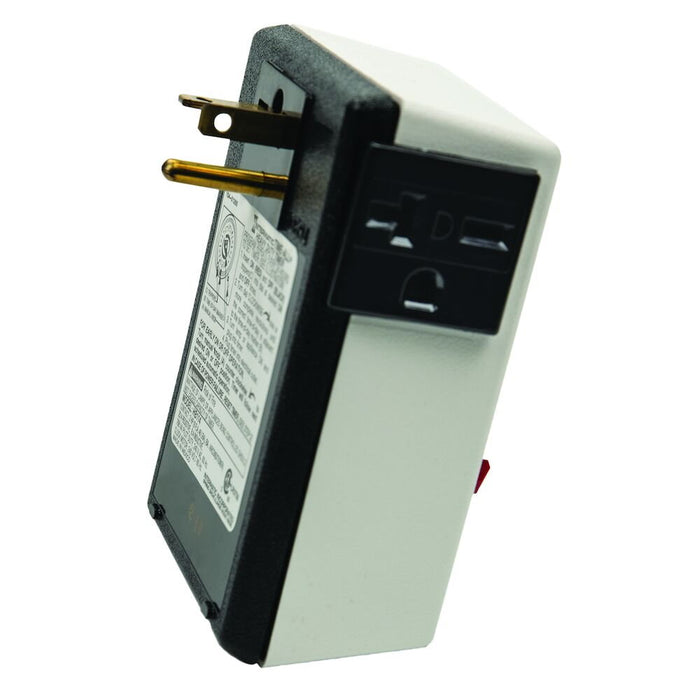

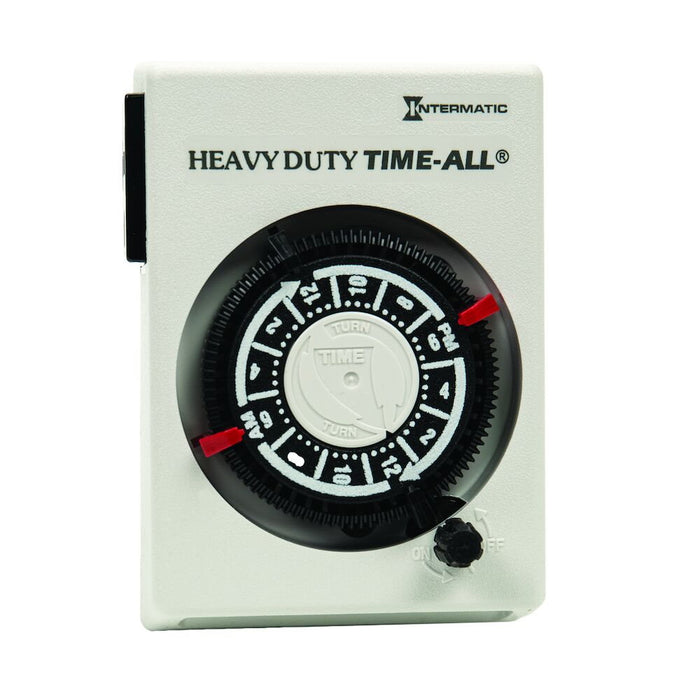

Intermatic - HB114 - Heavy-Duty Appliance Plug-In Timer

Intermatic - HB114 - Heavy-Duty Appliance Plug-In Timer

by Intermatic
SKU HB114
Sold out
$ 24.58 - $ 24.58
$ 24.58
$ 24.58 - $ 24.58
$ 24.58

Install Manual

Plug-in timers provide 24-hour ON/OFF scheduling for high power appliances, such as window mounted air conditioners, by accepting their specialized NEMA plugs.

Features:

  • 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
  • Minimum 30-min ON/OFF time
  • Manual ON/OFF Override
  • Grounded 125 and 240 V NEMA receptacle and plug
  • Plugs directly into wall outlet

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control

Specifications:

Color White Input Voltage Range(s) 240 VAC, 60 Hz
Mechanism Type Analog/Mechanical Operation Mode 24 hour
Resistive 20 A, 240 VAC, 60 Hz Usage Environments Indoor
Minimum ON/OFF Times 30 min Plug Configurations 6-20
Number of Plugs 1 ON/OFF Operations 2
Warranty Period 1-Year limited Airconditioner Load Ratings 8 A, 240 VAC, 60 Hz
Inductive 8 A, 240 VAC, 60 Hz Motor (Three-Phase) 2 HP, 240 VAC, 60 Hz
Pilot Duty (NO) 768 VA, 240 VAC, 60 Hz Rating General Purpose
Watts 4800 Product Depth (in) 2 1/8
Product Depth (mm) 54 Product Height (in) 4 1/4
Product Height (mm) 108 Product Width (in) 3
Product Width (mm) 76 Unit Carton Height (in) 4.375
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.549
Unit Carton Width (in) 3


Color White Input Voltage Range(s) 240 VAC, 60 Hz
Mechanism Type Analog/Mechanical Operation Mode 24 hour
Resistive 20 A, 240 VAC, 60 Hz Usage Environments Indoor
Minimum ON/OFF Times 30 min Plug Configurations 6-20
Number of Plugs 1 ON/OFF Operations 2
Warranty Period 1-Year limited Airconditioner Load Ratings 8 A, 240 VAC, 60 Hz
Inductive 8 A, 240 VAC, 60 Hz Motor (Three-Phase) 2 HP, 240 VAC, 60 Hz
Pilot Duty (NO) 768 VA, 240 VAC, 60 Hz Rating General Purpose
Watts 4800 Product Depth (in) 2 1/8
Product Depth (mm) 54 Product Height (in) 4 1/4
Product Height (mm) 108 Product Width (in) 3
Product Width (mm) 76 Unit Carton Height (in) 4.375
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.549
Unit Carton Width (in) 3

Product Depth (in) 2 1/8
Product Height (in) 4 1/4
Product Width (in) 3
