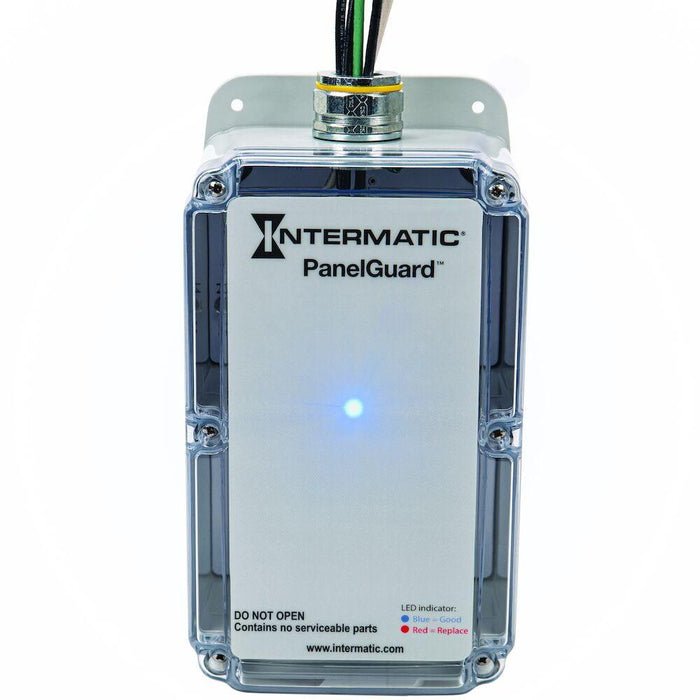

Intermatic L10F23D1DG1 Surge Protective Device, 4-Mode, 120/240 VAC 3Ph High Leg Delta, Type 2, EMI/RFI Filter, Surge Current Rating 100kA

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Features:

  • Type 2 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection
  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Optional advanced electrical noise filter (UL 1283)
  • Blue LED protection status indicator, and red LED service indicator

Applications:

  • Distribution Panel
  • Service Entrance

Specifications:

Color Gray Modes of Protection 4
Surge Protection Type 2 Enclosure Type NEMA Type 4X
Surge Protection Technology Individually integrated thermal disconnect technology TPMOV Voltage 120/240 VAC 3-Phase High Leg Delta
Filter EMI/RFI Filter Warranty Period 5-Year limited
Has LED Remote Contact Audible Alarm No Maximum Surge Current Rating Per Phase 100 kA
AC Sinewave Tracking (EMI/RFI) Level Sinewave tracking (EMI/RFI) level is up to 54? dB? from 2 kHz to 100 MHz Conduit Size 3/4"
Diagnostics Indicator Blue LED Protection Status Indicator, Red LED Service Indicator Maximum Continuous Operating Voltage (L-G) 150
Maximum Continuous Operating Voltage (L-L) 300 Maximum Continuous Operating Voltage (L-N) 150
Maximum Continuous Operating Voltage (N-G) 150 Maximum Continuous Operating Voltage HG 300
Maximum Continuous Operating Voltage HL 300 Maximum Continuous Operating Voltage HN 300
Maximum Surge Current Rating Per Mode 100 kA Nominal Discharge Current 20 kA
RoHS Certification Yes Short Circuit Current Rating 200 kA
Surge Protection LED Indicator Yes Voltage Protection Rating (L-G) 1200
Voltage Protection Rating (L-L) 1200 Voltage Protection Rating (L-N) 600
Voltage Protection Rating (N-G) 700 Voltage Protection Rating HG 2000
Voltage Protection Rating HL 2000 Voltage Protection Rating HN 1200
Wire Size Max #10 AWG Operating Temperature Max (°C) 80
Operating Temperature Max (°F) 176 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 3.29
Product Depth (mm) 83.57 Product Height (in) 10.59
Product Height (mm) 268.99 Product Width (in) 5.25
Product Width (mm) 133.35 Unit Carton Height (in) 4.375
Unit Carton Length (in) 12.625 Unit Carton Weight (lb) 0.6
Unit Carton Width (in) 6.375
