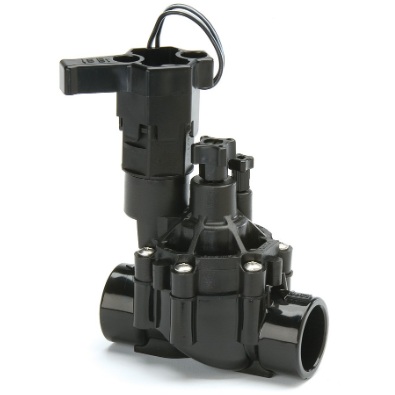

Rain Bird - DVF100SS 1" DVF Series Inline Plastic Residential Irrigation Valve with Flow Control - Slip x Slip

Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.

Additional features:

• All of our valves work with any standard sprinkler timer.
• Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
• Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
• 1.25 in. (3,2 cm) stainless steel phillips head screws.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers.
• 1 in. (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations
• Unique, easy-to-turn patented pressure assisted flow control mechanism
• Double-filtered pilot-flow design for maximum reliability
• Balanced-pressure diaphragm for long life
• External bleed to manually flush system of dirt and debris during installation and system start-up
• Internal bleed for spray-free manual operation
• Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
