Replaces model C199ep.

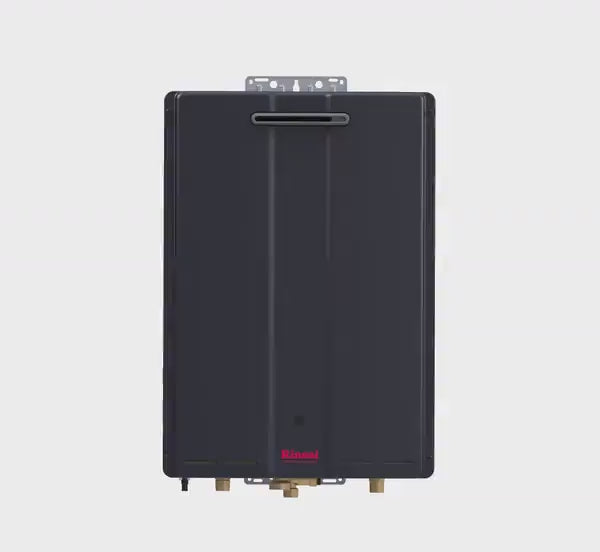

With an enhanced combustion design, the Rinnai SENSEI Tankless Water Heater provides a better experience for both users and installers. Like all Rinnai Tankless Water Heaters, it's also vertically integrated. That means all key components are manufactured by Rinnai — to ensure Rinnai quality.
Condensing Technology for Colder Climates
The Rinnai SENSEI offers freeze protection down to -4o F (for outdoor units) or -22o F (for indoor units) through:
- NEW integrated check valve that prevents backflow from outside cold air
- NEW Fiber Mesh Premix Burner
- Integrated logic to temporarily activate the unit in extreme cold climates
Most Flexible Venting in the Industry
The Rinnai® Sensei™ can go in an old condensing vent system for replacement if needed, but new installs can use smaller, lighter, less expensive concentric venting.
Now Including 2" Venting Options
Specifications
| Dimensions |
Product Width (inches): 14.76 |
| Product Height (inches): 33.86 |
| Product Depth (inches): 22.05 |
| Mobile Home Certified |
Yes |
| Product Weight (lbs) |
72.3
|
| Wi-Fi Capable |
Yes |
| Energy Star Certified |
Yes |
| Circ-Logic Compatible (S/N - Production Date) |
Yes |
| Recirculation Capable |
Yes |
| Recirculation Pump |
No
|
| Cold Water Inlet Connection |
3/4" MNPT/19mm |
| Domestic Hot Water Temperature Range (Standard) (°F/°C) |
98F-120F / 37C-49C |
| Domestic Hot Water Temperature Range (Optional) (°F/°C) |
98F-185F / 37C-85C |
| Gas Supply Connection |
3/4" MNPT/19mm |
| Gas Type |
|
| Hot Water Outlet Connection |
3/4" MNPT/19mm |
| Isolation Valves Included |
Yes |
| Manufacturer Model Number |
REU-N3237WC-US-P |
| Maximum BTU |
199,000 BTU/h |
| Minimum BTU |
15,000 BTU/h
|
| Maximum Altitude |
10,200' |
| NOx Level |
Less Than 14Ng/J (20ppm) |
| Commercial Warranty (Years) |
Heat Exchanger: 8, Labor: 1, Parts: 5 |
| Residential Warranty (Years) |
Heat Exchanger: 15, Labor: 1, Parts: 5 |
* It is recommended that a trained and qualified professional who has attended a Rinnai training class complete the installation. The warranty may be voided due to any improper installation.
— Installation and service must be performed by a licensed professional.
