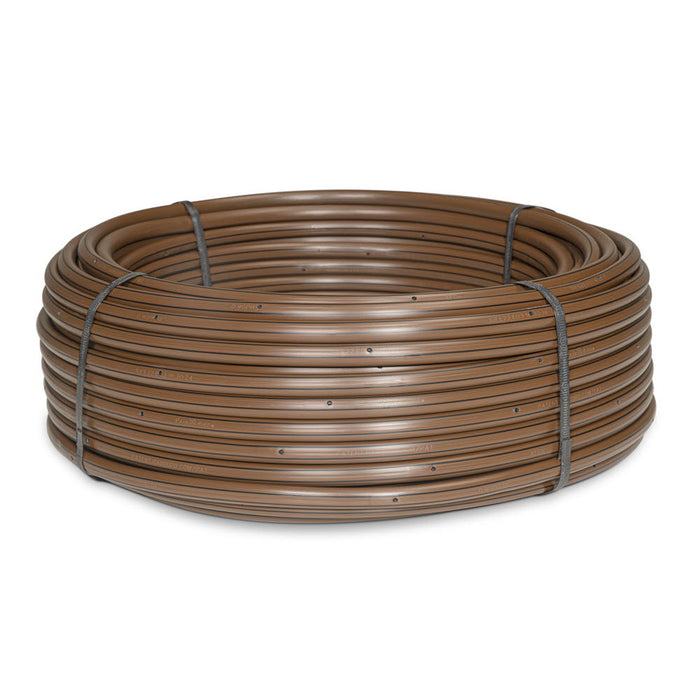

Rain Bird XFDE0612500 0.6 GPH 12 Inch Spacing 500 ft. XFDe Dripline
Achieve efficient watering across large areas with the highly flexible Rain Bird XFDE0612500 XFDe Dripline, featuring 0.6 GPH emitters spaced every 12 inches on a 500 ft. coil, designed for extra-long lateral runs. This advanced dripline is ideal for large zones where laterals might exceed 400 feet, offering the longest maximum run lengths in the landscape industry—up to 50% longer than competitors. The XFDE0612500 utilizes a unique, proprietary tubing material that provides significant flexibility and kink resistance, allowing for a tight 3" bend radius for fast, easy installation around corners with less waste. Installation time is further reduced by the self-dispensing coil design.
Rain Bird's low-profile, pressure-compensating emitters ensure a consistent 0.6 GPH flow rate along the entire lateral length, even with varying inlet pressures (up to 60 psi), enhancing watering uniformity. Each emitter features a self-rinsing mechanism and a raised inlet to minimize dirt intrusion. The durable, dual-layered tubing (brown over black standard) offers unmatched resistance to chemicals, algae growth, and UV damage. This dripline accepts a variety of Rain Bird XF fittings, Easy Fit Compression Fittings, and other 17mm insert fittings.
Features:
- XFDe Dripline - 0.6 GPH, 12 in. Spacing, 500 ft. Coil
- Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
- Choice of flow rates, spacing and coil lengths provides design flexibility for a variety of non-turfgrass applications
- Accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Insert Fittings and 17mm insert fittings
- Use an Air/Vacuum Relief Valve Kit when installation is below soil
- The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reliability in the pressure range of 8.5 to 60 psi
- Dual-layered tubing (brown over black) provides unmatched resistance to chemicals, algae growth and UV damage
Specifications:
- Outside diameter: 0.634" (16.1 mm)
- Inside diameter: 0.536" (13.6 mm)
- Wall thickness: 0.049" (1.2 mm)
Operating Range:
- Pressure: 8.5 to 60 psi (0.58 to 4.14 bar)
- Temperature: Up to 100° F (43.3 C) water; up to 125 F (51.7° C) ambient
- Required filtration: 120 mesh
