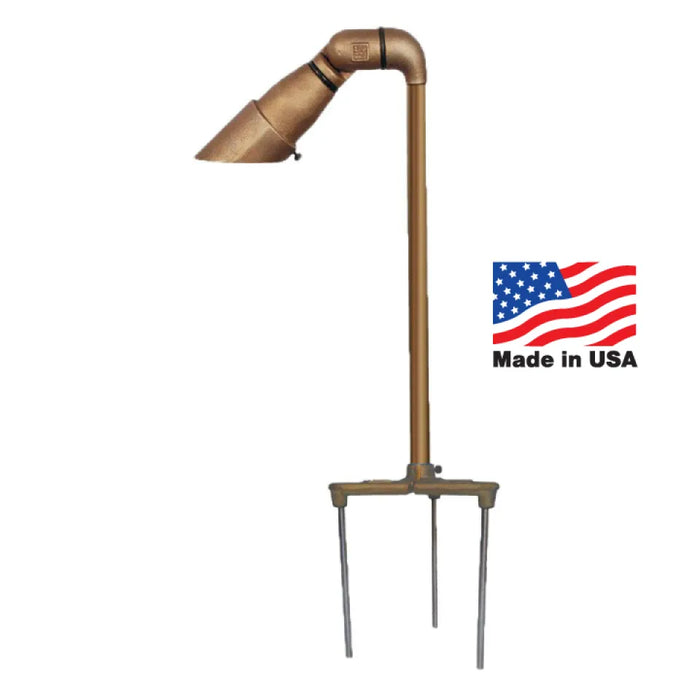

CAST Lighting Classic MR-16 Directional/Area/Path Light
Brand: CAST Lighting | SKU: CBAL1CB
Product Overview
The CAST Lighting Classic MR-16 Directional/Area/Path Light is a low-voltage CAST Lighting path or area light for walkways, planting beds, garden paths, and outdoor living spaces. It is meant to add useful ground-level visibility while keeping the fixture style coordinated with other CAST landscape lighting products.
Use this model when the project calls for a matching CAST path light or area light with the finish, height, lamp style, and voltage requirements shown on the product page. Before ordering, confirm fixture spacing, mounting location, and the total low-voltage run so the layout has even coverage without crowding the path.
Key Features
- Bronze construction noted by the manufacturer
- Drop-in bi-pin lamp configuration when specified for this model
- Used for fixture mounting, replacement, or adjustment
- Physical dimensions confirmed from manufacturer data
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Lamp specifications: Lamp: 12V MR-16 (50W max.) Lamp not included
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750
- Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13.
- Suitable for wet locations.
- FCC Class B Conducted and Radiated.
- Construction: Body: Solid Sand-Cast Bronze Stem: 18 in. Heavy Gauge Copper, (unthreaded end to secure in stake with set screw), 0.115 in. wall thickness.
- Knuckle: Solid Sand-Cast Bronze, continuously adjustable, secured with 303 stainless steel Philips Head screw.
- Shroud: Solid Sand-Cast Bronze Stake: Solid Eurometal O-Rings: Silicone Rubber (double O-Ring under shroud for water protection when facing downwards).
- Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring, Aluminum heat reflector
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead)
Dimensions
- Stem and Body: 20.5 in. high x 10.25 in. wide (when extended at 90° angle); 2.5 in. diameter shroud Stake: Fixture provided with large SOLD BRONZE talon mount stake with three 1/4 in. x 7 in. stainless steel spikes (CTSL1CB) Weight: 8 lbs.
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CBAL1CB typically used?
This path or area light is typically used for walkways, planting beds, and outdoor path or area lighting.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
Why Buy CAST Lighting Classic MR-16 Directional/Area/Path Light?
The CAST Lighting Classic MR-16 Directional/Area/Path Light gives you a clearer way to match a CAST Lighting path or area light to the job. Big Frog Supply keeps the key details organized so homeowners, contractors, and maintenance teams can compare the SKU, application, and compatibility notes before ordering.
