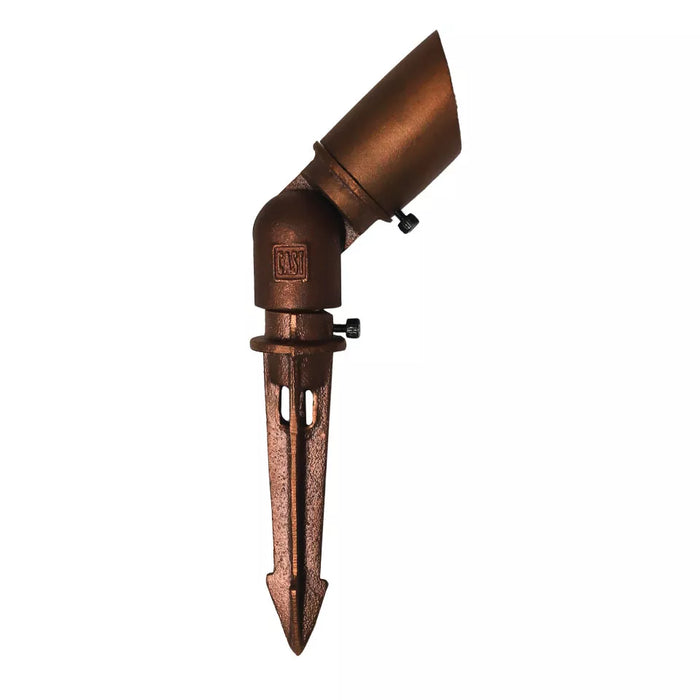

CAST Lighting 36º Beam Angle, 105 Lm (15 Watt Halogen Equivalent)
Brand: CAST Lighting | SKU: CCSL10536B
Product Overview
The CAST Lighting 36º Beam Angle, 105 Lm (15 Watt Halogen Equivalent) is a CAST Lighting accent or spot-style fixture for highlighting trees, architectural details, signs, planting beds, and other landscape focal points. It is designed for low-voltage outdoor lighting layouts where beam direction, fixture placement, and lamp or LED selection affect the finished result.
Use this model when you need a CAST fixture that can support focused accent lighting in a new layout or match an existing CAST installation. Before ordering, confirm the beam spread, lamp or LED requirements, mounting method, finish, and transformer load for the complete run.
Key Features
- Bronze construction noted by the manufacturer
- Physical dimensions confirmed from manufacturer data
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Construction: Solid sand cast bronze body and base Solid sand cast bronze stake 5’ tin-coated #18-2 No-Ox® marine-grade wire.
- LED Specifications: CCSL10536B (15 watt halogen equivalent) LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs.
- Color Temp: 2736°K CRI: 81 Input voltage: 10 to 24V, AC or DC Power: 2.8 watts,.26 amps, Power Factor:.89 Volt Amps: 3.15 Lumen output-fixture: 89 lm Center Beam Candela: 358 FCC compliant for EMI interference DISCONTINUED CCSL18336B (25 watt halogen equivalent) LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs.
- Color Temp: 2794°K CRI: 80 Input voltage: 10 to 24V, AC or DC Power: 2.69 watts,.25 amps, Power Factor:.88 Volt Amps: 3.06 Lumen output-fixture: 153 lm Center Beam Candela: 417 FCC compliant for EMI interference CCSL18354B (25 watt halogen equivalent) LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs.
- Color Temp: 2885°K CRI: 79 Input voltage: 10 to 24V, AC or DC Power: 2.68 watts,.26 amps, Power Factor:.87 Volt Amps: 3.08 Lumen output-fixture: 153 lm Center Beam Candela: 238 FCC compliant for EMI interference DISCONTINUED CCW270B (35 watt halogen equivalent) LED Light Source: 2 Cree LED’s, Life(L70) 60,500 hrs.
- Color Temp: 2758°K CRI: 82 Input voltage: 10 to 24V, AC or DC Power: 2.82 watts,.4 amps, Power Factor:.9 Volt Amps: 3.2 Lumen output-fixture: 49 lm Center Beam Candela: 94 FCC compliant for EMI interference CCW105B (10 watt halogen equivalent) LED Light Source: 1 Cree LED, Life(L70) 60,500 hrs.
- Color Temp: 2787°K CRI: 82 Input voltage: 10 to 24V, AC or DC Power: 2.82 watts,.27 amps, Power Factor:.88 Volt Amps: 4.81 Lumen output-fixture: 49 lm Center Beam Candela: 29 FCC compliant for EMI interference Listings: Emmision Standards: FCC Class A conducted and radiated UL 8750 recognized
- CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires RoHS
- Packaging: 6/case
Dimensions
- Body: 4.5” Stake: 6.5” Knuckle: 2.5”
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CCSL10536B typically used?
This accent or spot light is typically used for trees, architectural features, signs, and landscape focal points.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
Why Buy CAST Lighting 36º Beam Angle, 105 Lm (15 Watt Halogen Equivalent)?
The CAST Lighting 36º Beam Angle, 105 Lm (15 Watt Halogen Equivalent) gives you a clearer way to match a CAST Lighting accent or spot light to the job. Big Frog Supply keeps the key details organized so homeowners, contractors, and maintenance teams can compare the SKU, application, and compatibility notes before ordering.
Construction: Solid sand cast bronze
body and base Solid sand cast bronze
stake 5’ tin-coated #18-2 No-Ox® marine-grade wire. LED Specifications: CCSL10536B (15 watt halogen equivalent)
LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs.
Color Temp: 2736°K CRI: 81
Input voltage: 10 to 24V, AC or DC
Power: 2.8 watts,.26 amps,
Power Factor:.89
Volt Amps: 3.15
Lumen output-fixture: 89 lm Center Beam Candela: 358 FCC compliant for EMI interference DISCONTINUED CCSL18336B (25 watt halogen equivalent)
Color Temp: 2794°K CRI: 80
Power: 2.69 watts,.25 amps,
Power Factor:.88
Volt Amps: 3.06
Lumen output-fixture: 153 lm Center Beam Candela: 417 FCC compliant for EMI interference CCSL18354B (25 watt halogen equivalent)
Color Temp: 2885°K CRI: 79
Power: 2.68 watts,.26 amps,
Power Factor:.87
Volt Amps: 3.08
Lumen output-fixture: 153 lm Center Beam Candela: 238 FCC compliant for EMI interference DISCONTINUED CCW270B (35 watt halogen equivalent)
LED Light Source: 2 Cree LED’s, Life(L70) 60,500 hrs.
Color Temp: 2758°K CRI: 82
Power: 2.82 watts,.4 amps,
Power Factor:.9
Volt Amps: 3.2
Lumen output-fixture: 49 lm Center Beam Candela: 94 FCC compliant for EMI interference CCW105B (10 watt halogen equivalent)
LED Light Source: 1 Cree LED, Life(L70) 60,500 hrs.
Color Temp: 2787°K CRI: 82
Power: 2.82 watts,.27 amps,
Volt Amps: 4.81
Lumen output-fixture: 49 lm Center Beam Candela: 29 FCC compliant for EMI interference
Listings: Emmision Standards: FCC Class A conducted and radiated UL 8750 recognized; CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
RoHS
Packaging: 6/case
