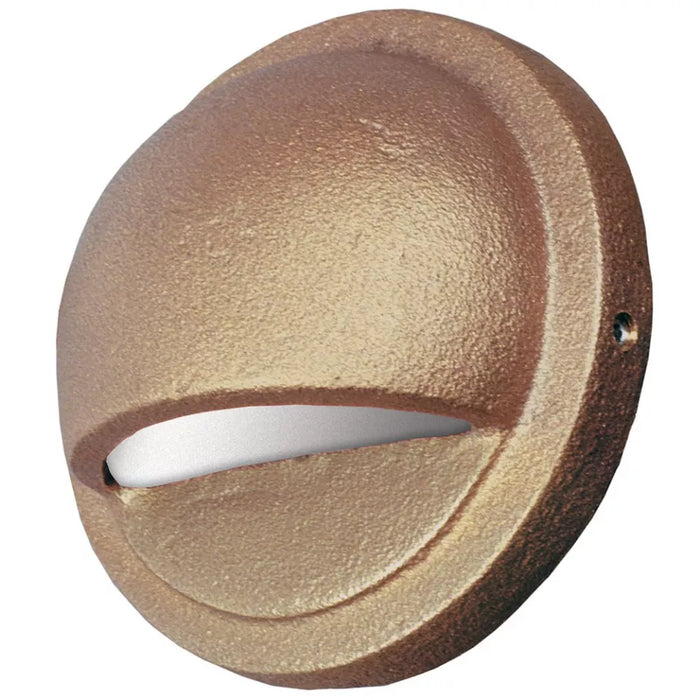

CAST Lighting Classic Integrated LED Deck Light
Brand: CAST Lighting | SKU: CDL1LED1
Product Overview
The CAST Lighting Classic Integrated LED Deck Light is a CAST Lighting deck or low-profile accent fixture for steps, decks, walls, posts, and similar outdoor hardscape locations. It is used in low-voltage landscape lighting systems where controlled light output and fixture placement help improve visibility without overpowering the space.
Use this model when the project calls for a CAST deck light or replacement fixture with the same mounting style, finish, voltage, and lamp or LED requirements. Before ordering, confirm the cutout or mounting location, wire access, and spacing across the full run.
Key Features
- Bronze construction noted by the manufacturer
- Drop-in bi-pin lamp configuration when specified for this model
- Integrated LED option within the matched product family
- Used for fixture mounting, replacement, or adjustment
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750
- Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13.
- Suitable for wet locations.
- FCC Class B Conducted and Radiated.
- Construction: Body: Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws.
- Includes (2) stainless steel mounting screws
- Packaging: Packed 5/box
- fully assembled Specifications for CDL1CB:
- Lamp specifications: *Includes 2.5W, 9-15 volt operating range, T5 LED lamp (SL921T5200L). *Halogen Option: 12V, 18W T-5 Xelogen-18W max. (CWB921X)
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead)
Dimensions
- 3.75” diameter x 1.75” height” Weight: 2 lbs.
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CDL1LED1 typically used?
This deck light is typically used for steps, decks, walls, and low-profile accent locations.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
Why Buy CAST Lighting Classic Integrated LED Deck Light?
The CAST Lighting Classic Integrated LED Deck Light gives you a clearer way to match a CAST Lighting deck light to the job. Big Frog Supply keeps the key details organized so homeowners, contractors, and maintenance teams can compare the SKU, application, and compatibility notes before ordering.
Listing:
Listing: All CAST Lights conform to: UL Std's 1838 & 8750;
CE;
Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13.
Suitable for wet locations.
FCC Class B Conducted and Radiated.
RoHS
Construction:
Body: Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws
Packaging: Packed 5/box; fully assembled Specifications for CDL1CB:
Lamp specifications: *Includes 2.5W, 9-15 volt operating range, T5 LED lamp (SL921T5200L). *Halogen Option: 12V, 18W T-5 Xelogen-18W max. (CWB921X)
Wiring: Tin-coated No-Ox marine-grade
wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve. Special Warning Instructions: Since the SCB socket is grounded to the fixture
body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer. LED Specifications for CDL1LED1:
LED Light Source: 1 CREE LED, Life (L70) 60,500 hrs.,
Color Temp. 2759°K, CRI 81
Input Voltage: 10 to 24V, AC or DC
Power:.27 Amps, 2.82 Watts,
Power Factor.88,
Volt Amps 3.2
Lumen output-fixture: 49 lm Center Beam Candela: 29 Lead Wire: 5’ tin coated #18/2 NO-OX marine grade wire FCC compliant for EMI interference
