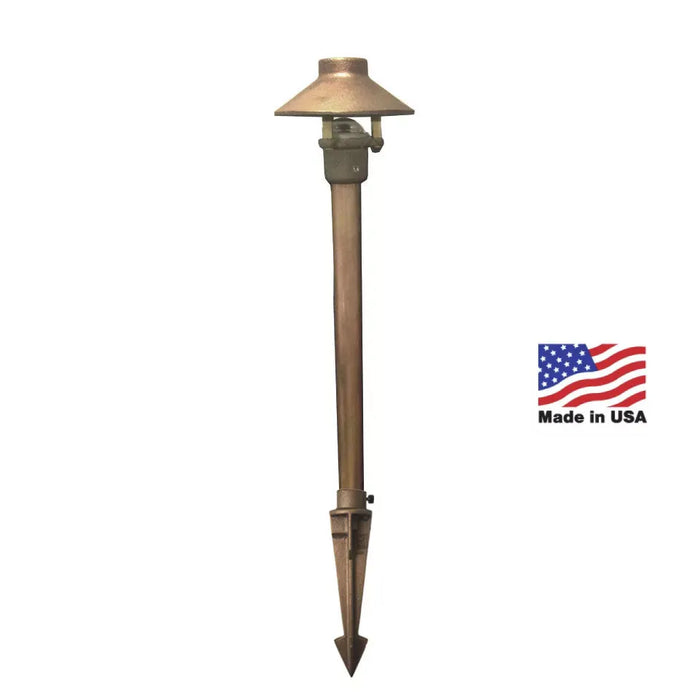

CAST Lighting Classic Mini China Hat Area/Path Light (Integrated LED)
Brand: CAST Lighting | SKU: CCH5LED1
Product Overview
The CAST Lighting Classic Mini China Hat Area/Path Light (Integrated LED) is a low-voltage CAST Lighting path or area light for walkways, planting beds, garden paths, and outdoor living spaces. It is meant to add useful ground-level visibility while keeping the fixture style coordinated with other CAST landscape lighting products.
Use this model when the project calls for a matching CAST path light or area light with the finish, height, lamp style, and voltage requirements shown on the product page. Before ordering, confirm fixture spacing, mounting location, and the total low-voltage run so the layout has even coverage without crowding the path.
Key Features
- Bronze construction noted by the manufacturer
- Integrated LED option within the matched product family
- Used for fixture mounting, replacement, or adjustment
- Physical dimensions confirmed from manufacturer data
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Listing: conform to UL Std’s 1838 & 8750
- Certified to CAN/CSA Std’s C22.2 No. 250.0 & C22.2 No. 250.13.
- Suitable for wet locations.
- FCC Class B conducted and radiated.
- RoHs.
- LED Specifications for CCH5LED1 LED Light Source: 1 Cree LED, Life(L70) 62,000 hrs.
- Color Temp: 2829°K CRI: 81 Input voltage: 10 to 24V, AC or DC Power: 2.71 watts,.27 amps, Power Factor:.84 Volt Amps: 3.23 Lumen output fixture: 58 lm Center Beam Candela: 21 FCC compliant for EMI interference
- Construction: Hat and Body: Solid Bronze Stake: Solid Eurometal Stem: Heavy gauge copper (0.05 in. wall thickness) unthreaded end to secure in stake with set screw (top and bottom), 1/2 in. NPT (stem bottom)
- Wiring: Tin-coated No-Ox® marine-grade wiring (inside fixture and external 25 ft. #16-2 lead)
- socket wire crimped and environmentally sealed with waterproof shrink tubing
Dimensions
- Stem, Body, and Hat: 13.25” tall x 4” wide Stake 6.25” Weight: 5 lbs.
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CCH5LED1 typically used?
This path or area light is typically used for walkways, planting beds, and outdoor path or area lighting.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
Why Buy CAST Lighting Classic Mini China Hat Area/Path Light (Integrated LED)?
The CAST Lighting Classic Mini China Hat Area/Path Light (Integrated LED) gives you a clearer way to match a CAST Lighting path or area light to the job. Big Frog Supply keeps the key details organized so homeowners, contractors, and maintenance teams can compare the SKU, application, and compatibility notes before ordering.
