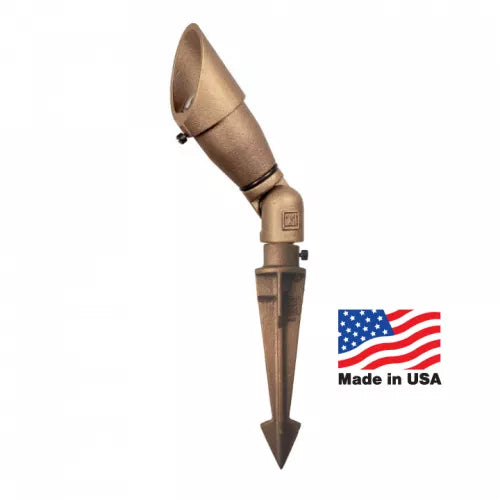

CAST Lighting Classic MR-16 Bullet/Spot Light USA
Brand: CAST Lighting | SKU: CBL1CB USA
Product Overview
The CAST Lighting Classic MR-16 Bullet/Spot Light USA is a CAST Lighting accent or spot-style fixture for highlighting trees, architectural details, signs, planting beds, and other landscape focal points. It is designed for low-voltage outdoor lighting layouts where beam direction, fixture placement, and lamp or LED selection affect the finished result.
Use this model when you need a CAST fixture that can support focused accent lighting in a new layout or match an existing CAST installation. Before ordering, confirm the beam spread, lamp or LED requirements, mounting method, finish, and transformer load for the complete run.
Key Features
- Bronze construction noted by the manufacturer
- Drop-in bi-pin lamp configuration when specified for this model
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Lamp specifications: Lamp: 12V MR-16 (50W max.)Lamp not included or MR-16 LED Lamp
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750
- Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13.
- Suitable for wet locations.
- FCC Class B Conducted and Radiated.
- Construction: Body: Solid Sand-Cast Bronze Knuckle: Solid Sand-Cast Bronze, Continuously adjustable, secured with 303 stainless steel Philips Head screw.
- Shroud: Solid Sand-Cast Bronze Locking Ring: Solid brass Stake: Solid Sand-Cast Bronze O-Rings: Silicone Rubber Lens: Covex borosilicate glass Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring.
- Aluminum heat reflector
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead)
- socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve
Dimensions
- Stake: 8.5 in.
- Weight: 5 lbs.
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CBL1CB USA typically used?
This accent or spot light is typically used for trees, architectural features, signs, and landscape focal points.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
Why Buy CAST Lighting Classic MR-16 Bullet/Spot Light USA?
The CAST Lighting Classic MR-16 Bullet/Spot Light USA gives you a clearer way to match a CAST Lighting accent or spot light to the job. Big Frog Supply keeps the key details organized so homeowners, contractors, and maintenance teams can compare the SKU, application, and compatibility notes before ordering.
