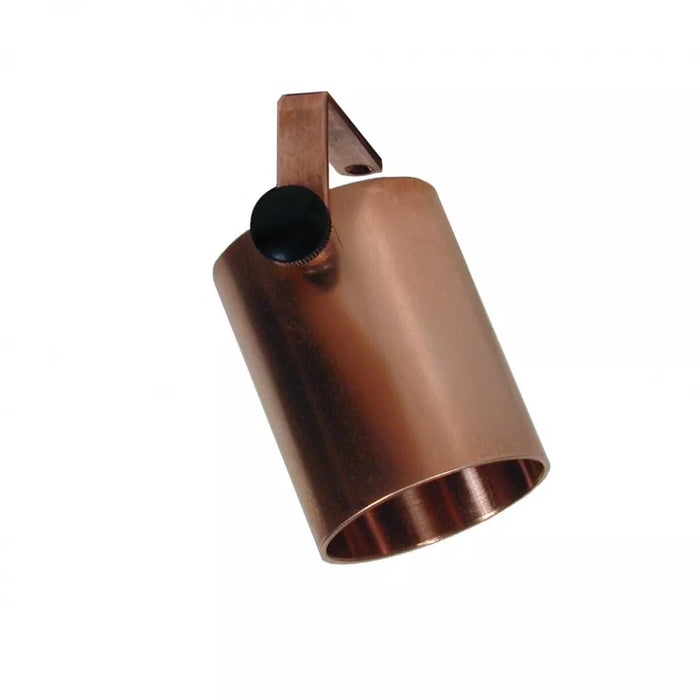

CAST Lighting Classic Niche Light
Brand: CAST Lighting | SKU: CNL1CB
Product Overview
The CAST Lighting Classic Niche Light is a CAST Lighting low-voltage landscape lighting product for compatible outdoor lighting layouts. It is used when the project needs a matching CAST fixture, part, lamp, control, or accessory with the specifications shown on this page.
Use this item when the SKU, voltage requirements, dimensions, finish, mounting style, and compatibility notes match your project or existing CAST Lighting system. Before ordering, confirm the full layout needs and any product documents available in the resources area.
Key Features
- Bronze construction noted by the manufacturer
- Physical dimensions confirmed from manufacturer data
Common Uses
- Low-voltage landscape lighting systems
- CAST Lighting fixture installs, repairs, and replacement work
- Professional outdoor lighting projects
Technical Specifications
- Lamp specifications: Lamp: *2.5W, 9-15 volt operating range, T5 LED Lamp (SL921T5200L) included. *Halogen Option: 12V 10W T-3 Wedge Base - 18W max. (CWB1210X)
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750
- Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13.
- Suitable for wet locations.
- FCC Class B Conducted and Radiated.
- Construction: Shroud and Bracket: Copper Base: Solid sand-cast bronze Internal Reflector: Polished aluminum Socket Assembly: High-temperature socket
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #18-2 lead)
- socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve
- Packaging: Packed 5/box
- fully assembled
Dimensions
- Body: 3.5 in. x 2.25 in. wide Weight: 2lbs.
Compatibility & Installation Notes
Confirm the SKU, lamp type, voltage requirements, mounting needs, and project conditions before ordering or installation. Use the available CAST Lighting documentation for product-family details and installation requirements.
Frequently Asked Questions
Where is CNL1CB typically used?
This landscape lighting fixture is typically used for low-voltage landscape lighting layouts.
What should I check before ordering?
Confirm the fixture style, voltage, lamp or LED requirements, finish, mounting method, and dimensions against your project or existing CAST Lighting system.
Can this replace an existing CAST Lighting fixture?
Yes, if the SKU, size, mounting style, and electrical requirements match the fixture you are replacing.
Where can I find specs or installation documents?
When available, spec sheets and manuals are listed in the product resources area so they stay easy to find without crowding the description.
