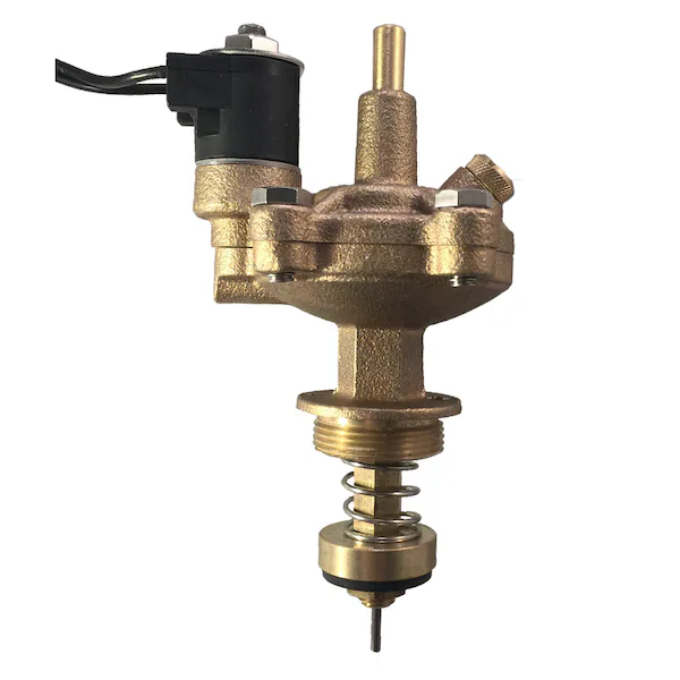

Champion AB-075-B-SD1 3/4-Inch Compact Automatic Irrigation Valve Actuator
Brand: Champion Irrigation | SKU: AB-075-B-SD1
Product Overview
The Champion AB-075-B-SD1 is a compact brass automatic actuator used to convert or service a compatible 3/4-inch Champion irrigation valve. Its 24VAC solenoid allows a compatible irrigation controller to open and close the valve automatically.
Choose this actuator when the existing valve body is serviceable and only the automatic control assembly needs to be installed or replaced. Confirm the valve series, 3/4-inch mounting connection, controller voltage, and actuator generation before ordering.
Key Features
- Compact automatic actuator assembly
- Durable brass construction
- 24VAC solenoid for standard irrigation controllers
- Manual bleed screw and flow control
- Fully repairable with compatible Champion actuator kits
Common Uses
- Converting a compatible manual Champion valve to automatic operation
- Replacing a compact actuator on an irrigation zone valve
- Controller-operated residential or light-commercial irrigation systems
Technical Specifications
-
Connection size: 3/4 in.
-
Actuator style: Compact AB
-
Solenoid: 24VAC, 60 Hz
-
Lead wire length: 14 in.
-
Maximum pressure: 150 PSI
-
Minimum flow: 5 GPM
-
Material: Brass
Compatibility & Installation Notes
Confirm the existing Champion valve accepts a 3/4-inch compact AB actuator and identify the actuator manufacturing generation when selecting future repair kits. Shut off the water supply and controller power before installation. This is an actuator assembly, not a complete anti-siphon valve body.
Frequently Asked Questions
Is this a complete irrigation valve?
No. It is the automatic actuator assembly for a compatible valve body.
What controller voltage does it require?
The solenoid is rated for 24VAC, 60 Hz.
Can it be operated manually?
Yes. The actuator includes a manual bleed screw and flow control.
Will it fit every Champion valve?
No. Confirm the valve series, size, threads, and actuator style before ordering.
