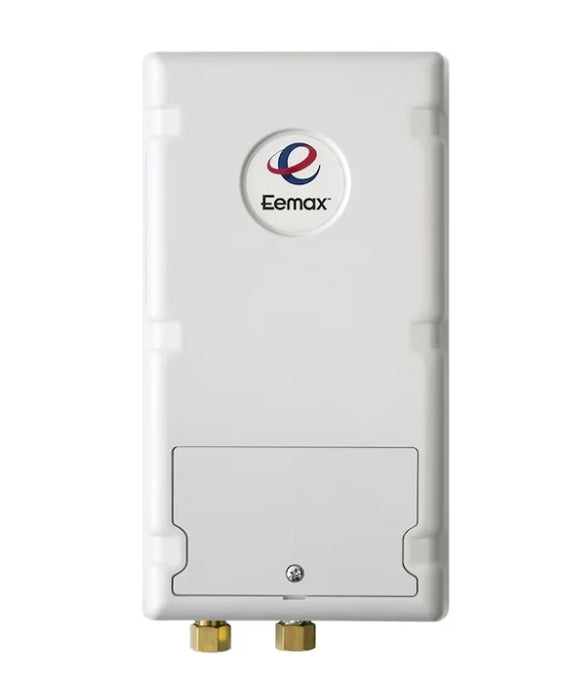

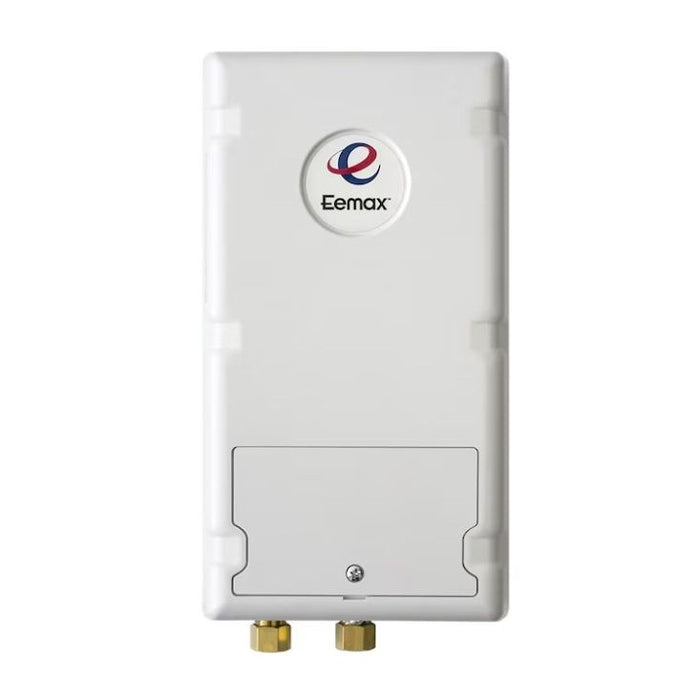

Eemax SPEX65T LavAdvantage Tankless Water Heater 6.5kW 240V
Brand: Eemax | SKU: SPEX65T
Product Overview
The Eemax SPEX65T LavAdvantage is a compact, point-of-use electric tankless water heater designed to deliver instantaneous, temperature-controlled hot water to multiple handwashing lavatories. Operating at 6.5kW and 240V, this microprocessor-controlled heater features active thermostatic technology that prevents fluctuations at the tap. Homeowners, facility managers, and contractors select this efficient model for commercial, industrial, and residential spaces to minimize wait times, reduce thermal lag, and cut down on water waste.
Key Features:
-
Thermostatic Control Accuracy: Microprocessor-driven power modulation monitors and scales energy input to maintain a stable, consistent output temperature within +/-1°F.
-
Ultra-Low Flow Activation: Features an industry-leading turn-on threshold of just 0.2 GPM, making it perfectly optimized for modern water-saving sensor or metering faucets.
-
SafeStart™ Technology: An intelligent internal startup mechanism actively checks for dry-firing conditions during installation, safeguarding the heating element from premature burnout.
-
Compact Footprint: The space-saving, lightweight design mounts directly under or adjacent to plumbing fixtures, eliminating the need for bulky traditional storage tanks.
-
Vandal-Resistant Housing: Encased in a rugged, durable enclosure designed to protect vital internal controls from tampering in public restrooms or high-traffic commercial spaces.
Technical Specifications:
-
Model: SPEX65T
-
Product Type: Electric Tankless Water Heater (Point-of-Use)
-
Finish/Color: White
-
Material: ABS-UL 94 5VA Rated Cover with Heavy-Duty Elements
-
Size/Dimensions: 10.75" H x 5.25" W x 3" D
-
Connection Size: 1/2" NPT Compression Water Connections
-
Voltage: 240V (Can be operated at 208V with 25% reduced temperature output)
-
Wattage: 6.5kW (6,500 Watts)
-
Flow Rate: 0.2 GPM Minimum Activation; 2.0 GPM Maximum Flow Rate
-
Pressure Rating: 25 PSI Minimum Operating Pressure; 150 PSI Maximum Operating Pressure
-
Location Rating: Indoor use only (Must protect from freezing environments)
Installation & Versatility:
-
Installation Type: Point-of-use wall mount, optimized for vertical installation underneath or next to a sink fixture.
-
Field Adjustment: Features a factory-set output of 120°F that can be field-adjusted using internal controls to accommodate specific safety, comfort, or sanitation requirements.
-
Compatibility: Integrates easily with standard 1/2" NPT compression plumbing fittings and accepts both cold or pre-heated water feeds to function as an effective booster heater.
-
Recommended Use: Multiple handwashing lavatories, high-traffic commercial office restrooms, strip malls, quick-service facilities, and ADA-compliant building layouts.
Frequently Asked Questions
Does this unit require a temperature and pressure (T&P) relief valve?
According to UL 499 criteria, this tankless water heater is not required to be equipped with a T&P relief valve during normal installation. However, you must always cross-reference your municipal or state plumbing codes to verify if a local variation mandates one.
Can the SPEX65T be mounted sideways or horizontally?
No. The unit must be mounted strictly in a vertical configuration with the plumbing connections pointing downward. Altering this orientation can trap internal air pockets and will lead to element failure or system damage.
What are the dedicated electrical requirements for this 240V heater?
The SPEX65T draws a total of 27 Amps. It requires a dedicated 240V electrical circuit, protected by a double-pole 30 Amp circuit breaker, and wired with a minimum conductor size of 10 AWG copper wire.
Can I use this water heater to service a kitchen sink or a shower?
No, this 6.5kW unit is engineered specifically for handwashing applications (lavatories). Its power output is not designed to support the higher flow rates and temperature demands required for kitchen basins or showering fixtures.
Why We Like It:
The Eemax SPEX65T is a premier choice for commercial handwashing configurations because it balances a 6.5kW output with true thermostatic precision at an ultra-low 0.2 GPM activation rate. This combination prevents the cold-water lag common with remote central tanks while seamlessly supporting multiple water-saving sensor faucets simultaneously. Before starting your installation, double-check your electrical panel to ensure you have a dedicated 30 Amp double-pole breaker and 10 AWG copper wiring ready. Always remember to run water completely through the unit for a minute or two to purge all internal air bubbles before switching on the power to safeguard your heating elements from dry-firing.
