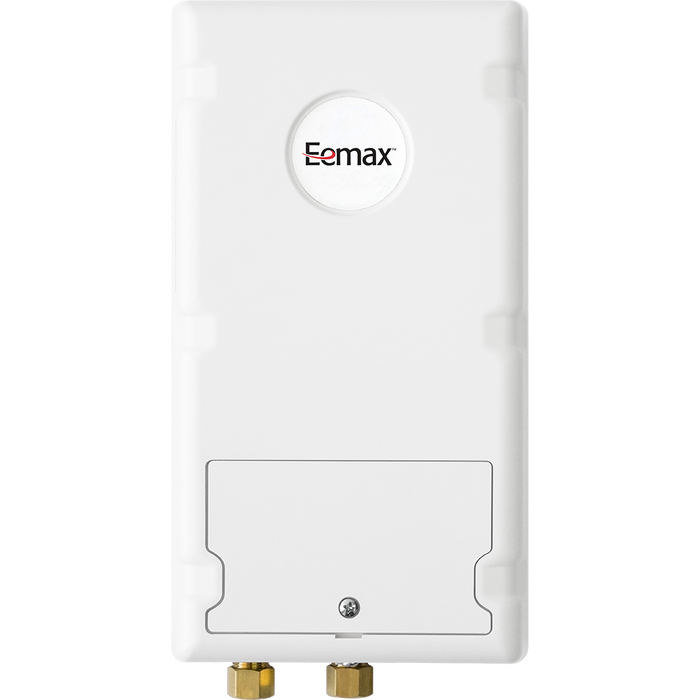

Eemax SPEX8208T LavAdvantage Tankless Water Heater 8.3kW 208V
Brand: Eemax | SKU: SPEX8208T
Product Overview
The Eemax SPEX8208T LavAdvantage is a compact, point-of-use electric tankless water heater engineered to deliver energy-efficient, on-demand hot water for residential and commercial environments. Operating at 8.3kW and 208V, this microprocessor-controlled heating solution is perfect for single lavatory faucets, kitchen sinks, wet bars, and utility areas. Facility managers, contractors, and DIYers choose this thermostatic unit for its space-saving under-sink design, multi-directional installation capabilities, and consistent temperature delivery.
Key Features:
-
Thermostatic Temperature Control: Active energy management modulates power to maintain precise output temperatures within +/-1°F.
-
Ultra-Low Flow Activation: Industry-leading 0.2 GPM turn-on threshold makes it ideal for variable or fixed flow applications like sensor and metering faucets.
-
SafeStart™ Technology: Automatically diagnostics and safeguards the internal mechanics upon start-up to avoid dry-firing occurrences.
-
Multi-Directional Mounting: Single-module design allows flexible installation in any orientation to adapt to tight plumbing configurations.
-
Silent Operation: Digitally controlled system functions with zero click noise, providing a quiet performance in public restrooms or home settings.
Technical Specifications:
-
Model: SPEX8208T
-
Product Type: Electric Tankless Water Heater (Point-of-Use)
-
Finish/Color: White
-
Material: ABS-UL Rated 94 5VA Cover; Replaceable Nichrome Cartridge Element Insert
-
Size/Dimensions: 9.75" H x 5.25" W x 3" D
-
Connection Size: 3/8" Integral Compression Fittings
-
Voltage: 208V
-
Wattage: 8.3kW (8,300 Watts)
-
Flow Rate: 0.2 GPM Minimum Activation; 3.0 GPM Maximum Flow Rate
-
Pressure Rating: 30 PSI Minimum Operating Pressure; 150 PSI Maximum Operating System Pressure
-
Location Rating: Indoor use only
Installation & Versatility:
-
Installation Type: Point-of-use wall mount, typically mounted under the sink directly below the fixture.
-
Field Adjustment: Digital LED display with accessible buttons allows a field-adjustable thermostat set point range between 70°F and 140°F.
-
Compatibility: Connects easily to 3/8" piping via integral compression fittings without soldering or sweat connections; accommodates cold or preheated water feeds.
-
Recommended Use: Commercial and residential handwashing sinks, office restrooms, kitchenettes, bar sinks, and ADA-compliant buildings.
Frequently Asked Questions
Does this unit require a temperature and pressure (T&P) relief valve?
This water heater is not required by UL 499 to utilize a temperature and pressure relief valve. However, you should check state and local plumbing codes to verify requirements for your specific installation location.
Can the SPEX8208T be mounted sideways or upside down?
Yes, this LavAdvantage unit features multi-directional mounting functionality and can be safely installed in any physical orientation depending on your available space.
What is the minimum flow rate required to activate the heater?
The unit activates at an industry-low 0.2 GPM, ensuring it triggers consistently even when paired with ultra-low-flow sensor faucets or water-saving metering valves.
Can I install this model in a hot water recirculation loop?
No, this point-of-use electric heater is designed only for on-demand applications and should not be used in continuous recirculation systems, as this may shorten component life.
Why We Like It:
The Eemax SPEX8208T is an outstanding choice for commercial handwashing applications or residential point-of-use spaces because it tackles low-flow temperature fluctuations perfectly. Its microprocessor prevents standard mechanical clicking and keeps hot water smooth and reliable. When prepping for installation, make sure your electrical setup includes a dedicated 208V single-phase circuit backed by a 40 Amp breaker and 8 AWG copper wiring. Always purge any remaining air from the lines for a few minutes before switching on the power to safeguard the heating element.
