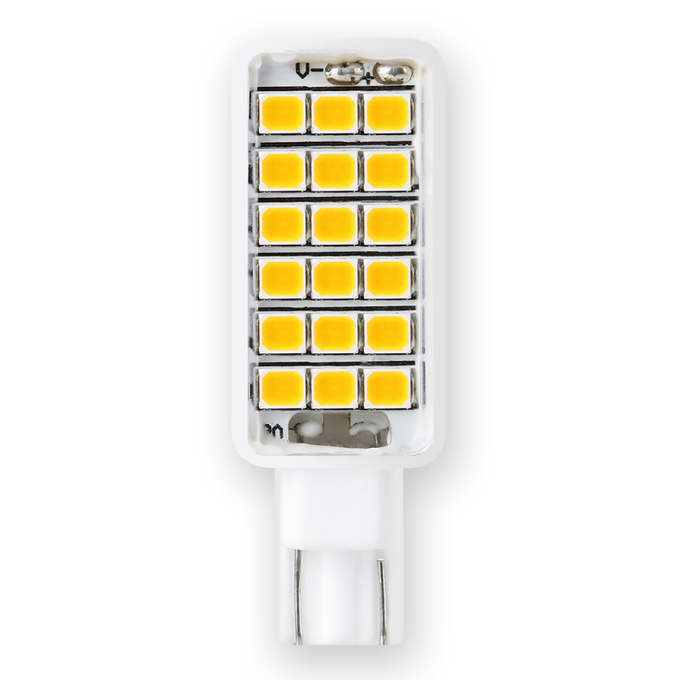

EmeryAllen 3W Linear Miniature Wedge LED Replacement Lamp - 2700K, 360 degree - EA-LMW-3.0W-002-2790
Brand: EmeryAllen | SKU: EA-LMW-3.0W-002-2790
Product Overview
The EmeryAllen EA-LMW-3.0W-002-2790 is a 3W Linear Miniature Wedge LED lamp designed for 12V AC/DC fixtures. It produces 350 lumens at 2700K with a 360 degree beam spread and 90.4 CRI.
Use this lamp as a retrofit for compatible Mini-Wedge fixtures when the existing socket, input voltage, physical clearance, and optical requirements match. EmeryAllen designs its miniature LED lamps for efficient replacement of traditional halogen or incandescent lamps while retaining compact fixture compatibility.
Key Features
- 3W LED lamp
- Mini-Wedge base / form factor
- Input voltage: 12V AC/DC
- Light output: 350 lumens
- Color / CCT: 2700K
- Beam spread: 360 degree
- CRI: 90.4
- Dimmable: Yes
- VA rating: 4.59
- Limited lifetime manufacturer warranty
Common Uses
- Landscape step lights
- Path lights
- Low-voltage outdoor fixtures
- Other compatible miniature-wedge applications
Technical Specifications
| Brand |
EmeryAllen |
| SKU |
EA-LMW-3.0W-002-2790 |
| Product Type |
Linear Miniature Wedge LED Replacement Lamp |
| Base / Form Factor |
Mini-Wedge |
| Input Voltage |
12V AC/DC |
| Wattage |
3W |
| Brightness |
350 lumens |
| Color / CCT |
2700K |
| Beam Spread |
360 degree |
| CRI |
90.4 |
| Dimmable |
Yes |
| VA Rating |
4.59 |

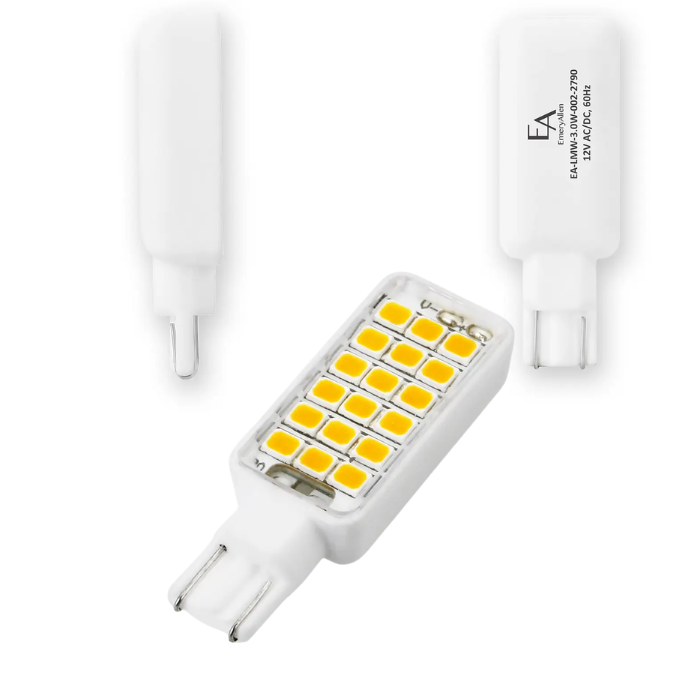

Dimensions
| Diameter / Width |
0.625 in. |
| Length |
1.75 in. |
Compatibility & Notes
Match the miniature-wedge base, voltage, and physical dimensions to the existing fixture. This SKU is listed as dimmable; use only with compatible transformers and dimmers.
Replacement Note: Always compare the existing lamp's base, voltage, physical dimensions, beam spread, and fixture rating before ordering. Small differences in lamp shape or length can affect fit in compact fixtures.
Frequently Asked Questions
What base does the EA-LMW-3.0W-002-2790 use?
This SKU uses a Mini-Wedge base or form factor.
What light output does the EA-LMW-3.0W-002-2790 provide?
It produces approximately 350 lumens at 2700K with a 360 degree beam spread.
Is the EA-LMW-3.0W-002-2790 dimmable?
Yes. This SKU is listed as dimmable; use it only with compatible dimming equipment.
How do I know if this EmeryAllen lamp will fit my fixture?
Match the existing lamp's base, input voltage, physical dimensions, and beam requirements. For enclosed or specialty fixtures, also confirm the fixture manufacturer's lamp compatibility.
Why Buy the EA-LMW-3.0W-002-2790?
The EA-LMW-3.0W-002-2790 gives you an exact EmeryAllen replacement option with clearly defined electrical and optical specifications. Choosing the correct SKU helps preserve fixture fit, beam performance, color, and light output while moving from traditional lamp technology to an efficient LED replacement.
