Kichler 15PC300SS Pro-Contractor Series 300W Transformer | 15V Stainless Steel

Product Details

The Kichler 15PC300SS is a heavy-duty, professional-grade 300W transformer built for large-scale residential and commercial landscape lighting projects. As the workhorse of the Pro-Contractor Series, it features a high-efficiency toroidal core that provides silent operation and cooler internal temperatures, even when running at near-full capacity. Housed in a rugged 304-grade stainless steel cabinet, this unit is designed to resist corrosion and weather damage for decades. It comes standard with a built-in mechanical timer and a dedicated port for an optional photocell, offering versatile control options for automated dusk-to-dawn lighting. With 15V output taps, it is specifically engineered to overcome voltage drop on long wire runs, ensuring that LED fixtures at the furthest edge of the property remain as bright as those nearest the house.

Key Features:

• 300W High Capacity: Provides ample power for 40-75+ LED fixtures, making it ideal for large estates and commercial perimeters.
• Premium Toroidal Core: Engineered for 95% efficiency and whisper-quiet performance, unlike traditional magnetic transformers that may buzz or hum.
• Enhanced 15V Taps: Optimized for LED systems, the 15V output provides the necessary "push" to maintain a consistent 10V-14V range across the entire lighting run.

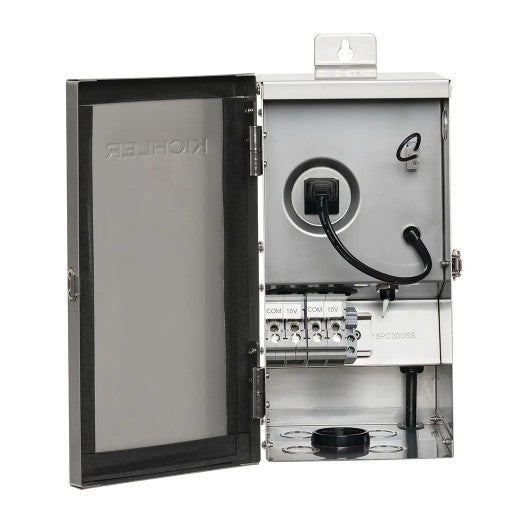

• Commercial-Grade Stainless Steel: Features a 304 stainless steel housing with a side-swinging door for unobstructed access during wiring and programming.
• Safety & Protection: Equipped with primary and secondary magnetic circuit breakers to protect the unit and your home from electrical shorts or overloads.

Specifications:

• Wattage: 300 Watts Max
• Input Voltage: 120V AC
• Output Voltage: 15V AC
• Core Type: Magnetic Toroidal
• Material: 304 Stainless Steel
• Protection: Integrated Magnetic Breakers
• Dimensions: 13" H x 5.75" W x 5.75" D
• Certifications: cETLus Listed for Wet Locations

Installation & Maintenance Tips:

• Wire Sizing: For a 300W load, it is recommended to use at least 12/2 or 10/2 low-voltage cable to minimize heat and voltage drop.
• Load Distribution: To maximize the life of the transformer, aim to load the unit to approximately 240W (80% of capacity).
• Mounting: Use the heavy-duty mounting bracket. Ensure the unit is mounted at least 1 foot above the ground to keep the wiring compartment clear of debris and snow.
• Timer Setup: Push the mechanical pins "IN" for the times you want the lights to be ON, and leave them "OUT" for OFF. Rotate the dial to sync with the current time of day.

Common Uses/Applications:

• Estate Entrances: Powers long runs of path lights and up-lights along driveways and gates.
• Commercial Property Borders: Ideal for providing consistent security lighting around office buildings or retail centers.
• Extensive Backyard Lighting: Perfect for systems including deck lighting, patio accents, and mature tree up-lighting on a single hub.

Common Questions:

Q: Can I use this with a smart home system?

A: Yes. You can remove the internal mechanical timer and replace it with a smart plug-in module or connect the transformer to a 120V smart-switched outlet.

Q: Does it have a 12V tap?

A: The 15PC series focuses on 15V taps to support the specific needs of modern LED drivers, which often require a higher starting voltage to compensate for cable resistance.

Q: Is it loud?

A: No. Because it uses a toroidal core (donut-shaped) rather than a stacked core, the magnetic vibrations are significantly reduced, resulting in nearly silent operation.

The Kichler 15PC300SS is the ultimate professional solution for high-capacity, high-efficiency landscape lighting that lasts.
