Product Overview

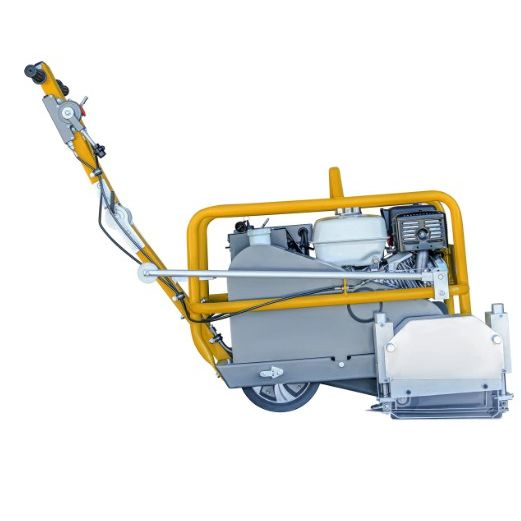

The Tomahawk Power TFS10H is a 10" early entry green concrete saw designed for cutting control joints in fresh concrete slabs before random cracking can develop. Powered by a 13 HP Honda GX390 engine, this larger early-entry saw fits 9" to 10" blades and cuts from 7/8" up to 1-1/2" deep for medium to large concrete pours. With electric blade depth adjustment, electric start, hydrostatic transmission, polyurethane wheels, an enclosed blade guard, triangular arbor, and adjustable handlebar, the TFS10H is built for concrete contractors, flatwork crews, commercial finishers, municipal crews, and rental fleets working on larger slab projects.
Key Features:
-
13 HP Honda GX390 Engine: Reliable Honda GX390 power supports demanding early-entry concrete cutting on medium to large pours.
-
10" Blade Capacity: Fits 9" to 10" early-entry concrete saw blades for larger green concrete joint cutting.
-
Up to 1-1/2" Cutting Depth: Cuts control joints from 7/8" to 1-1/2" deep, depending on blade setup and project requirements.
-
Early Entry Cutting: Designed to cut concrete slab joints soon after finishing to help reduce stress fractures and random cracking.
-
Electric Blade Depth Adjustment: Electric depth control helps the operator set and manage cut depth more efficiently.
-
Electric Start: Easy electric key start supports faster startup and less operator effort compared with pull-start-only equipment.
-
Hydrostatic Transmission: Helps provide controlled operation and smoother saw movement during long straight cuts.
-
Triangular Arbor: Triangular arbor design is built for early-entry blade compatibility and stable blade engagement.
-
3,000 RPM Blade Shaft Speed: Average blade shaft speed supports clean early-entry cuts through green concrete.
-
Polyurethane Wheels: Designed for safe operation on fresh concrete while helping protect the surface finish.
-
Enclosed Blade Guard: Helps protect the operator and jobsite from blade contact and cutting debris.
-
Adjustable Handlebar: Adjustable handlebar improves operator comfort and control during longer cutting runs.
-
EPA & CARB Compliant: Listed by Tomahawk as EPA and CARB compliant.
-
Warranty Coverage: Tomahawk lists a 3-year engine warranty and 2-year product warranty.
Technical Specifications:
-
Model: TFS10H
-
Product Type: Early Entry Green Concrete Saw
-
Brand: Tomahawk Power
-
Engine: Honda GX390
-
Horsepower: 13 HP
-
Power Source: Gasoline
-
Start Type: Electric
-
Transmission: Hydrostatic transmission
-
Maximum Blade Diameter: 9" - 10"
-
Maximum Depth of Cut: 7/8" - 1-1/2"
-
Average Blade Shaft Speed: 3,000 RPM
-
Arbor: Triangular
-
Blade Flanges: Triangular
-
Blade Depth Adjustment: Electric
-
Blade Guard Type: Enclosed
-
Handlebar Adjustment: Adjustable
-
Number of Belts: 1
-
Front Wheels: 4" / 101.6 mm
-
Rear Wheels: 10" / 254 mm
-
Fuel Tank Capacity: 6.4 U.S. qt / 6.1 L
-
Oil Capacity: 1.16 U.S. qt / 1.1 L
-
Maximum Weight Uncrated: 320 lb / 145.1 kg
-
Maximum Weight Crated: 380 lb / 172.3 kg
-
Dimensions: 45" x 27" x 36" / 114.3 cm x 68.5 cm x 91.4 cm
-
Product Warranty: 2 year
-
Engine Warranty: 3 year
-
Compliance: EPA and CARB compliant
-
Shipping Note: Oversized item; ships by freight truck
Package Includes:
-
TFS10H Concrete Saw: 10" early-entry green concrete saw for control joint cutting in fresh concrete.
-
Blades: Not included. Choose a compatible 10" early-entry blade based on aggregate hardness and cutting conditions.
-
Manuals & Guides: Follow Tomahawk's specification sheet, operations manual, and parts manual for setup, blade selection, depth adjustment, cutting, maintenance, and service.
Applications:
-
Concrete Control Joints: Cuts early-entry contraction joints to help control random cracking in new concrete slabs.
-
Green Concrete Slabs: Designed for cutting fresh concrete soon after finishing, depending on concrete mix, slab temperature, weather, and jobsite timing.
-
Medium to Large Concrete Pours: Built for larger flatwork projects where a 10" saw and deeper cut capacity are needed.
-
Parking Lots: Useful for control joint cutting on fresh commercial parking lot pours.
-
Sidewalks: Helps cut clean joints in municipal, commercial, and residential sidewalk work.
-
Driveways: Supports early-entry cuts on fresh driveway slabs to help manage stress cracking.
-
Garages: Useful for residential and light commercial garage slab joint cutting.
-
Patios: Helps cut control joints in patios, courtyards, and decorative flatwork.
-
Residential & Commercial Applications: Built for flatwork contractors, concrete finishers, rental fleets, and professional construction crews.
-
Decorative Jobsite Enhancements: Can be used for controlled joint placement on decorative concrete layouts when proper blade and timing are used.
Operation & Use Notes:
-
Early Entry Timing: Early-entry saws are used after concrete finishing while the slab is still green. Actual timing depends on concrete mix, weather, slab temperature, finishing method, and jobsite conditions.
-
Blade Selection: Blades are not included. Use a compatible 10" early-entry blade matched to the aggregate hardness and cutting conditions.
-
Cured Concrete Note: This saw is specifically designed for early-entry green concrete. For fully cured concrete, a standard walk-behind concrete saw or floor saw may be more appropriate.
-
Depth Control: Use the electric blade depth adjustment to set and maintain the desired joint depth. Do not exceed the listed 7/8"-1-1/2" cutting range.
-
Fresh Concrete Surface: Polyurethane wheels help protect the surface, but the slab must be firm enough to support safe operation without damaging the finish.
-
Hydrostatic Drive: Operate at a controlled pace and avoid forcing the saw through the cut. Let the blade and machine work at the correct speed for the material.
-
Silica Dust Safety: Concrete cutting can create respirable crystalline silica dust. Follow OSHA silica rules and use approved dust-control methods, ventilation, and respiratory protection where required.
-
Blade Safety: Inspect the blade, arbor, flanges, belts, guard, and fasteners before each use. Do not operate with damaged blades, missing guards, or loose components.
-
Fuel & Oil: Add proper fuel and oil before operation. Follow Honda and Tomahawk instructions for startup, shutdown, storage, and maintenance.
-
Hearing & Eye Protection: Wear hearing protection, safety glasses or face protection, gloves, boots, and appropriate clothing while cutting concrete.
-
Hot Surface Safety: Keep hands, clothing, and debris away from the engine, muffler, blade guard, belt area, and hot surfaces during and after operation.
-
Outdoor & Ventilation Safety: Gas-powered equipment must be operated in well-ventilated areas. Never run a gas engine indoors, in a garage, basement, enclosed building, or partially enclosed space because of carbon monoxide danger.
-
Transport Safety: At 320 lb uncrated and 380 lb crated, use proper loading equipment, ramps, lift gate, forklift, or approved lifting methods when loading, unloading, and moving the saw.
-
Freight Shipping: Tomahawk notes this is an oversized item requiring freight truck shipment. Shipping to a business address may help reduce transit time.
-
California Proposition 65: This product carries a California Proposition 65 warning.
Frequently Asked Questions
What is the Tomahawk TFS10H used for?
The TFS10H is used for early-entry cutting of control joints in fresh green concrete slabs to help control stress fractures and random cracking.
What engine does the TFS10H use?
Tomahawk lists the TFS10H with a Honda GX390 gasoline engine and 13 HP power.
What size blade does the TFS10H use?
The TFS10H fits 9" to 10" early-entry concrete saw blades.
How deep can the TFS10H cut?
Tomahawk lists the depth of cut range at 7/8" to 1-1/2".
What is the blade shaft speed?
Tomahawk lists the average blade shaft speed at 3,000 RPM.
What arbor does the TFS10H use?
Tomahawk lists the TFS10H with a triangular arbor.
Does the TFS10H include a blade?
No. Tomahawk lists the package contents as the TFS10H Concrete Saw with blades not included.
Can the TFS10H be used on cured concrete?
No. Tomahawk notes this saw is specifically designed for early entry on green concrete. For fully cured concrete, a standard walk-behind or floor saw is more appropriate.
What makes this saw suitable for fresh concrete?
The TFS10H uses polyurethane wheels and upcut blade rotation to help protect freshly poured concrete while making clean, controlled cuts.
Does the TFS10H have electric depth adjustment?
Yes. Tomahawk lists electric blade depth adjustment for this model.
Does the TFS10H have electric start?
Yes. Tomahawk lists easy electric key start and electric start for the TFS10H.
How much does the TFS10H weigh?
Tomahawk lists the maximum uncrated weight at 320 lb and the maximum crated weight at 380 lb.
What are the dimensions?
Tomahawk lists the dimensions at 45 inches by 27 inches by 36 inches.
What warranty does the TFS10H have?
Tomahawk lists a 3-year engine warranty and 2-year product warranty.
How does this item ship?
Tomahawk notes this is an oversized item that requires freight truck shipment.
Can I run this saw indoors?
No. Gas-powered saws must only be used in well-ventilated areas. Never run a gas engine indoors, in a garage, basement, enclosed building, or partially enclosed space because of carbon monoxide danger.
Why We Like It:
The Tomahawk Power TFS10H is a larger early-entry concrete saw built for crews cutting control joints on medium to large green concrete pours. The 13 HP Honda GX390 engine, 9"-10" blade capacity, 7/8"-1-1/2" cut depth, 3,000 RPM blade shaft speed, triangular arbor, electric blade depth adjustment, electric start, hydrostatic transmission, polyurethane wheels, enclosed blade guard, adjustable handlebar, and 320 lb uncrated build make it a strong fit for concrete contractors, commercial flatwork crews, rental fleets, and finishers working on parking lots, driveways, sidewalks, garages, patios, and large residential or commercial slabs.
