Product Overview

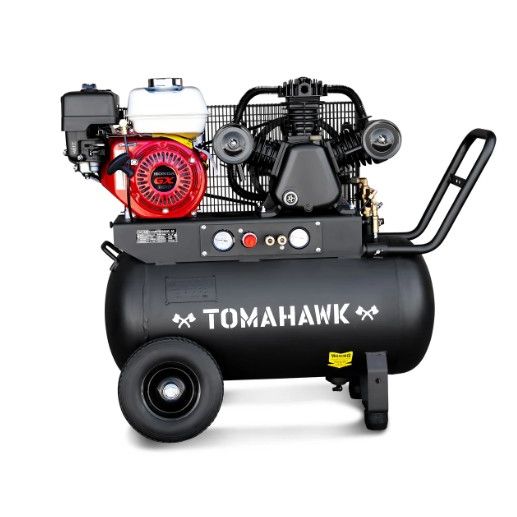

The Tomahawk Power TAC20H-200 is a 20 gallon gas-powered portable air compressor built for contractors, framers, roofers, service trucks, field repairs, farms, road crews, and jobsite crews that need compressed air away from electrical power. Powered by a 6.5 HP Honda GX200 engine, this compressor delivers high-output air for pneumatic tools such as framing nailers, roofing guns, siding staplers, air hammers, pavement tools, impact tools, blow-out systems, paint sprayers, and surface prep equipment. With a 20 gallon horizontal steel tank, 2-stage cast iron pump, 200 PSI max pressure, 13.7 CFM at 90 PSI, and 100% duty cycle, the TAC20H-200 is designed for demanding professional use where portable air power matters.
Key Features:
-
6.5 HP Honda GX200 Engine: Commercial-grade Honda GX200 gas engine provides reliable jobsite power without relying on electrical outlets.
-
20 Gallon Horizontal Steel Tank: Large receiver capacity helps provide consistent airflow and reduce cycling during heavy-duty jobs.
-
13.7 CFM at 90 PSI: Tomahawk lists volume rating at 13.7 CFM at 90 PSI in the specification table for demanding pneumatic tools.
-
200 PSI Max Pressure: High max pressure rating supports a wide range of air tools and professional applications.
-
2-Stage Cast Iron Pump: Cast iron 2-stage pump is built for durability and high-output air delivery.
-
100% Duty Cycle: Designed for continuous professional use on demanding jobsites.
-
Low RPM Performance: Tomahawk notes low RPM operation for quieter, cooler running with less wear and reduced maintenance needs.
-
Automatic Idle Control: Throttles down when idle to reduce noise and save fuel.
-
Low Vibration Technology: Balanced pump design helps reduce vibration, noise, and wear over time.
-
Low Oil Shutdown: Helps protect the Honda engine by shutting down when oil level is too low.
-
After Cooler Included: Helps cool compressed air before it reaches the tank and outlet system.
-
Sight Glass Oil Window: Allows quick oil level checks for easier maintenance on the job.
-
Rugged Portability: Pneumatic tires roll over gravel, dirt, and uneven terrain for easier jobsite movement.
Technical Specifications:
-
Model: TAC20H-200
-
Product Type: Gas-Powered Portable Air Compressor
-
Brand: Tomahawk Power
-
Receiver Capacity: 20 gallons
-
Tank Style: Horizontal steel tank
-
Max Pressure Rating: 200 PSI
-
Volume Rating at 90 PSI: 13.7 CFM listed in specifications
-
Product Title / Description Airflow Note: 13.5 CFM at 90 PSI listed in product title and description
-
Engine: Honda GX200
-
Engine Displacement: 196cc
-
Horsepower: 6.5 HP
-
RPM: 900
-
Compressor Stage: 2-stage
-
Pump Material: Cast iron
-
Fuel Capacity: 1.6 gallons
-
Air Outlet Size: 3/4" x 1" / 19 x 25 mm
-
Low Oil Shutdown: Yes
-
After Cooler Included: Yes
-
Drain Type: Manual
-
Duty Cycle: 100%
-
Weight: 210 lb
-
Product Dimensions: 42" x 22" x 40" / 1066 x 558 x 1016 mm
-
Shipping Note: Oversized item; ships by freight truck
Package Includes:
-
20 Gallon Air Compressor: Gas-powered portable air compressor with Honda GX200 engine, horizontal tank, 2-stage cast iron pump, and pneumatic tires.
-
Manuals & Guides: Follow Tomahawk’s specification sheet and operation instructions for fuel, oil, startup, pressure settings, draining, storage, and maintenance.
Applications:
-
Remote Construction Sites: Powers framing nailers, roofing guns, siding staplers, air hammers, and other pneumatic tools where electrical power is limited.
-
Framing & Roofing Crews: Provides portable air for framing, sheathing, roofing, siding, trim, and jobsite fastening work.
-
Farm & Agricultural Operations: Supports equipment repair, tire inflation, barn maintenance, and pneumatic service tools.
-
Service Trucks & Field Repairs: Can be mounted to a truck bed or trailer for mobile mechanic work, tire service, and heavy-duty maintenance.
-
Road Work & Pavement Crews: Supports jackhammers, pavement breakers, grinders, and pneumatic road repair tools.
-
Oilfields, Pipelines & Mining: Provides portable air power for remote and rugged work locations where grid power is unavailable.
-
Sandblasting & Surface Prep: High-CFM air delivery can support compatible abrasive blasting and industrial cleaning setups.
-
HVAC, Electrical & Plumbing Jobs: Supports pneumatic press tools, impact drivers, blow-out systems, and field service applications.
-
Paint Sprayers: Can support compatible paint sprayers when the tool’s air consumption and pressure requirements match the compressor output.
-
General Jobsite Air: Useful for cleaning, inflation, pneumatic tools, equipment maintenance, and mobile air needs.
Operation & Use Notes:
-
Gas-Powered Equipment: This compressor uses a gasoline engine and must only be operated outdoors or in well-ventilated areas. Never run it indoors, in a garage, trailer, enclosed building, basement, crawlspace, or partially enclosed area because of carbon monoxide danger.
-
Fuel & Oil: Add the correct fuel and engine oil before operation. Follow Tomahawk and Honda GX200 instructions for startup, shutdown, maintenance, and storage.
-
Low Oil Shutdown: Low oil shutdown helps protect the engine, but operators should still check oil levels before each use.
-
Tank Pressure Safety: Never exceed rated pressure. Use appropriate regulators, hoses, fittings, and tools rated for the compressor’s pressure output.
-
Tool Matching: Match air tool CFM and PSI requirements to compressor output. Tools with high continuous air demand may require larger air capacity or intermittent use.
-
Manual Drain: Drain moisture from the tank as directed after use to reduce corrosion and maintain air quality.
-
Hot Surface Safety: Keep hands, clothing, hoses, and debris away from the engine, muffler, pump, belt area, and hot components during and after operation.
-
Compressed Air Safety: Never point compressed air at people, skin, eyes, animals, or loose debris. Use proper eye protection when working with compressed air.
-
Hose & Fitting Inspection: Inspect air hoses, couplers, fittings, regulators, and pressure gauges before each use. Do not use damaged hoses or leaking fittings.
-
Pneumatic Tool PPE: Wear eye protection, hearing protection, gloves, and tool-specific PPE when using nailers, breakers, air hammers, grinders, sandblasters, or sprayers.
-
Sandblasting & Dust Safety: Abrasive blasting and surface prep can create hazardous dust. Use approved respiratory protection, containment, ventilation, and dust controls as required.
-
Transport Safety: At 210 lb, use ramps, team lifting, lift gates, or approved equipment when loading or unloading. Secure the compressor during transport.
-
Freight Shipping: Tomahawk notes this is an oversized item that requires shipment by freight truck. A business delivery address may help reduce transit time.
-
California Proposition 65: This product carries a California Proposition 65 warning.
Frequently Asked Questions
What is the Tomahawk TAC20H-200 used for?
The TAC20H-200 is used to power pneumatic tools on jobsites, farms, service trucks, road work, surface prep, sandblasting, HVAC, electrical, plumbing, framing, roofing, and field repair applications.
What engine does the TAC20H-200 use?
Tomahawk lists the compressor with a Honda GX200 engine rated at 6.5 HP with 196cc displacement.
What size tank does it have?
Tomahawk lists the receiver capacity at 20 gallons.
What is the max pressure?
Tomahawk lists the max pressure rating at 200 PSI.
What is the airflow at 90 PSI?
Tomahawk lists 13.7 CFM at 90 PSI in the specification table. The product title and description also reference 13.5 CFM at 90 PSI.
Is this a single-stage or two-stage compressor?
Tomahawk lists the compressor as a 2-stage unit.
What is the pump made from?
Tomahawk lists the pump material as cast iron.
Does it have low oil shutdown?
Yes. Tomahawk lists low oil shutdown as included.
Does it include an after cooler?
Yes. Tomahawk lists an after cooler as included.
What is the duty cycle?
Tomahawk lists the duty cycle at 100%.
How much does it weigh?
Tomahawk lists the weight at 210 lb.
What are the product dimensions?
Tomahawk lists the product dimensions at 42" x 22" x 40", or 1066 x 558 x 1016 mm.
Can this compressor be used indoors?
No. This is a gas-powered compressor and must only be operated outdoors or in well-ventilated areas. Never run a gasoline engine indoors or in an enclosed or partially enclosed space because of carbon monoxide danger.
Why We Like It:
The Tomahawk Power TAC20H-200 is a strong portable air option for crews that need dependable compressed air away from power outlets. The 6.5 HP Honda GX200 engine, 20 gallon horizontal steel tank, 13.7 CFM at 90 PSI rating, 200 PSI max pressure, 2-stage cast iron pump, 100% duty cycle, low oil shutdown, after cooler, pneumatic tires, automatic idle control, and 210 lb jobsite build make it a practical fit for contractors, framers, roofers, service trucks, farm maintenance, road crews, surface prep, sandblasting, and mobile repair work.
