Quick Guide

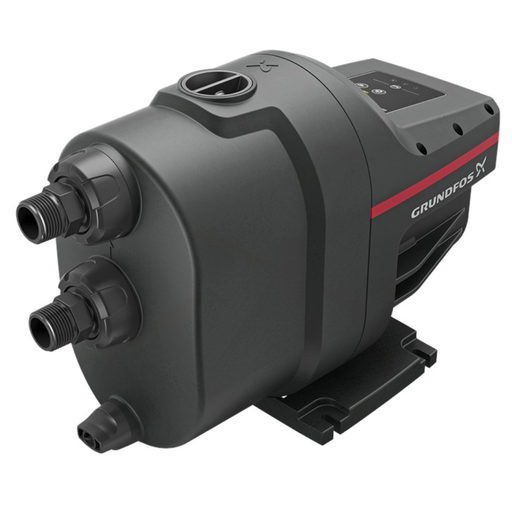

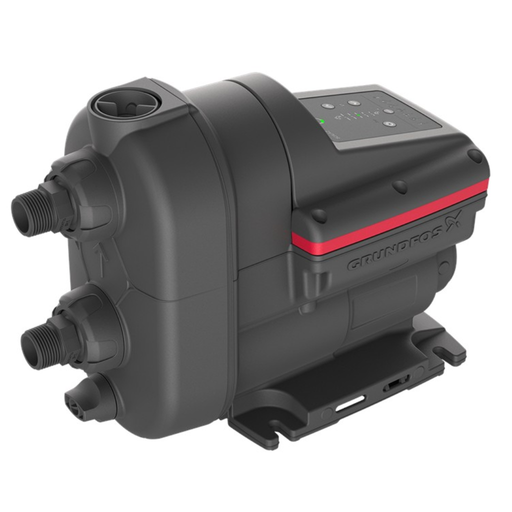

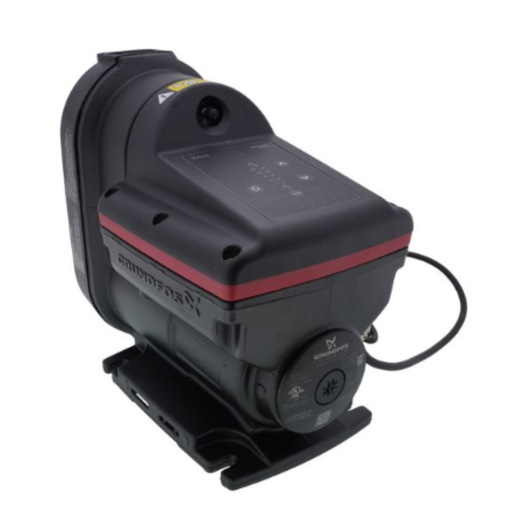

With the new GRUNDFOS SCALA2 water booster pump, perfect water pressure is finally available in an all-in-one unit. Now you can enjoy the luxury of a perfectly comfortable shower any time of day – even when your family is using the many other taps in your home, for instance in the bathroom, the kitchen and the garden. And the SCALA2 is so compact and quiet, you won’t even know it’s there.

SCALA2 comes equipped with intelligent pump control, which means that it automatically adjusts operation to deliver the water pressure you like. The integrated sensor detects if the inlet pressure varies or if there are several taps open and immediately tells the pump to boost the pressure. And it happens so fast that you won’t notice any change in your water pressure at all

93013251 SCALA2 3-45

1 Phase

115 V

60Hz

550 Power Input P1

Power Plug US Plug 115V

Features

Intelligent pump control
Water-cooled, permanent magnet motor
Dry running protection
Self-priming
User friendly control panel
Outdoor-ready

Product name

SCALA2 3-45

Product No.

93013251

EAN

5715122954968

Price

Technical

Rated flow

13.2 US gpm

Maximum flow

20.3 US gpm

Rated head

88.59 ft

Maximum head

147.6 ft

Primary shaft seal

Carbon/Ceramic

Approvals

cULus

Approvals for drinking water

cULus NSF372,cULus DW NSF61

Curve tolerance

ISO9906:2012 3B

Model

2

Max. pump speed

5200 rpm

Materials

Pump housing

Composite

NORYL FE1630PW PPE+PS-GS30

Impeller

Composite

NORYL FE1630PW PPE+PS-GS30

Material code

A

Installation

Range of ambient temperature

32 .. 113 °F

Maximum operating pressure

145.04 psi

Maximum permissible inlet pressure

87 psi

Pipe connection standard

ANSI B1.20.1

Type of inlet connection

NPT(M)

Type of outlet connection

NPT(M)

Size of suction port

1 inch

Size of outlet port

1 inch

Liquid

Pumped liquid

Water

Liquid temperature range

32 .. 113 °F

Selected liquid temperature

68 °F

Density

62.29 lb/ft³

Electrical data

Power input P1

550 W

Rated power - P2

0.603 HP

Main frequency

60 Hz

Rated voltage

1 x 115 V

Minimum current consumption

0.2 A

Maximum current consumption

4.9 A

Enclosure class (IEC 34-5)

XX

Enclosure type

3

Insulation class (IEC 85)

F

Length of power cable

6.56 ft

Power plug

US plug 115V

Controls

Type of connector

Type B (NEMA 5-15)

Others

Net weight

21.4 lb

Gross weight

26.5 lb

Shipping volume

1.52 ft³

Sales region

United States

Storage temperature range

-40 .. 158 °F

Country of origin

RS

Custom tariff no.

8413.70.2040
