Rain Bird - 075ASVF 3/4 in. Plastic Residential Anti-Siphon Irrigation Valve w/ Flow Control

Spec Sheet Install Manual

*One Solenoid Handle Per Order

Rain Bird manufactures only the highest quality valves. Use ASVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.

• 3/4 in. (20/27) plastic residential irrigation valve
• Combination reliable DVF valve and atmospheric backflow preventer in one unit
• Incorporates all features of DV/DVF Series valves
• I.A.P.M.O. and A.S.S.E listing approved
• City of Los Angeles listing approved
• All of our valves work with any standard sprinkler timer

*One Solenoid Handle Per Order

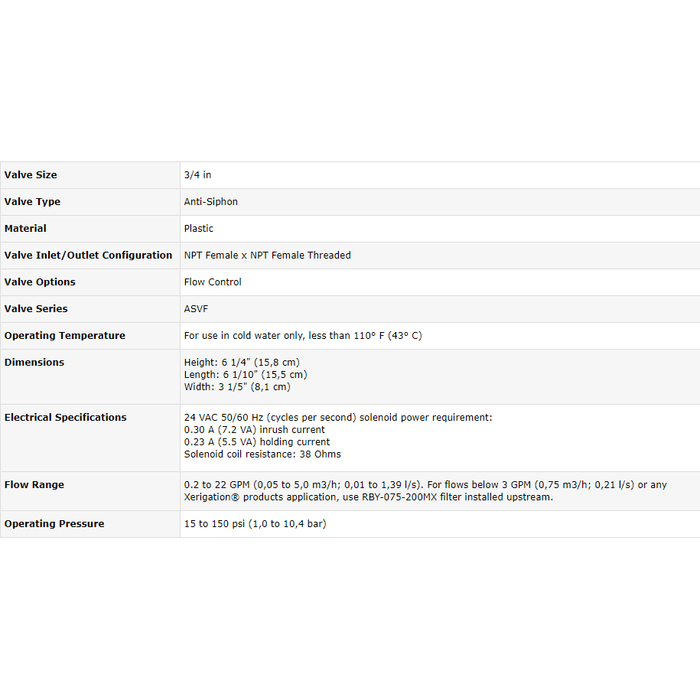

Model 075ASVF
Valve Size 3/4 in
Valve Type Anti-Siphon
Material Plastic
Valve Inlet/Outlet Configuration NPT Female x NPT Female Threaded
Valve Options Flow Control
Valve Series ASVF
Operating Temperature For use in cold water only, less than 110° F (43° C)
Dimensions
Height: 6 1/4" (15,8 cm)
Length: 6 1/10" (15,5 cm)
Width: 3 1/5" (8,1 cm)

Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
0.30 A (7.2 VA) inrush current
0.23 A (5.5 VA) holding current
Solenoid coil resistance: 38 Ohms

Flow Range 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® products application, use RBY-075-200MX filter installed upstream.
Operating Pressure 15 to 150 psi (1,0 to 10,4 bar)

Height: 6 1/4" (15,8 cm)
Length: 6 1/10" (15,5 cm)
Width: 3 1/5" (8,1 cm)
