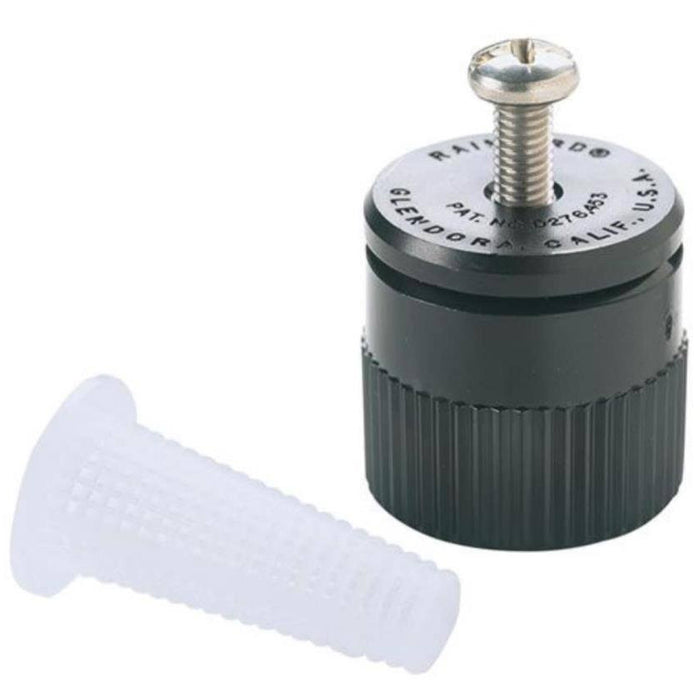

Rain Bird - 1300AF - Adjustable Full Circle Bubbler Nozzle

Spec Sheet

Rain Bird 1300 Series Flower Bubblers provide a controlled, gentle umbrella of water for irrigating trees, flowers and shrub areas.

Mount these bubblers on 1/2" male risers to effectively water areas from 1' to 3'.

• Full circle pattern only.
• Stainless Steel adjustment screw regulates flow and radius for spacing between from 1 to 3 feet (0.3 m to 0.9 m) apart.
• Fully adjustable flow.
• Shipped with SR-050 1/2" (15/21) inlet filter screen for easy installation and resistance to debris.
• Operates over a wide range of pressures.
• Non-corrosive plastic and stainless steel construction for long life.

• Flow-by:
• 0 at 8 psi (0,6 bar) or greater.
• 0.10 gpm (0,02 m3/h; 0,006 l/s) otherwise.

Specifications:

• Inlet Size: 0.5
• Inlet Thread: Female Threaded
• Flow Control: 1.0 - 2.3 GPM
• Pressure Rating/Range: 10 - 60 PSI

Flow-by:
0 at 8 psi (0,6 bar) or greater.
0.10 gpm (0,02 m3/h; 0,006 l/s) otherwise.

Inlet Size: 0.5
Inlet Thread: Female Threaded
Flow Control: 1.0 - 2.3 GPM
Pressure Rating/Range: 10 - 60 PSI
