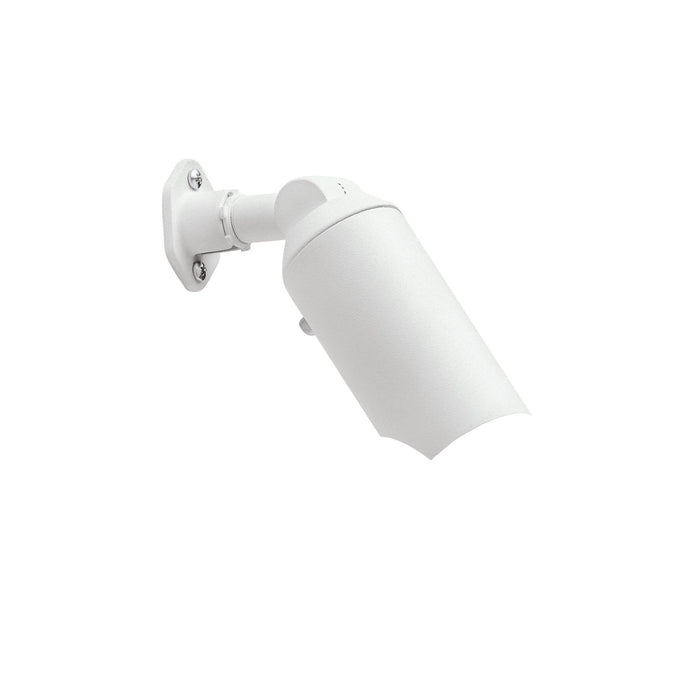

Kichler 15093WHT 12V MR16 Downlight
Brand: Kichler | SKU: 15093WHT
Product Overview
The Kichler 15093WHT is a 12V MR16 downlight for tree or surface mounting where downward illumination is needed for walkways, patios, seating areas, and outdoor transitions. The Textured White finish works well on lighter structures, posts, soffit areas, and exterior surfaces where a dark fixture would stand out.
This fixture uses one MR16 lamp rated up to 50W and includes open stainless steel light source protection. The lamp is not included. A 35-inch lead wire supports connection to a compatible 12V low-voltage landscape lighting system.
Key Features
-
Tree or Surface Mount Downlight: Designed for low-voltage outdoor downlighting applications.
-
MR16 Lamp Format: Accepts one MR16 lamp for flexible beam spread and color temperature selection.
-
50W Maximum Rating: Supports one MR16 lamp up to the listed wattage.
-
Textured White Finish: Coordinates with light exterior surfaces, trim, posts, and structures.
-
Aluminum Housing: Lightweight housing for compatible landscape lighting installations.
-
35-Inch Lead Wire: Provides wiring length for connection to low-voltage cable.
-
Lamp Sold Separately: Choose a compatible MR16 lamp for the desired output and beam angle.
Technical Specifications
-
Model: 15093WHT
-
Product Type: Low-Voltage Landscape Downlight
-
Voltage: 12V
-
Operating Voltage Range: 12 VAC
-
Lamp Type: MR16
-
Maximum Wattage: 50W
-
Number of Lamps: 1
-
Lamp Included: No
-
Finish: Textured White
-
Primary Material: Aluminum
-
Lead Wire Length: 35 inches
-
Location Rating: CUL_12V
-
UPC: 783927029582
Dimensions
-
Length: 5.88 inches
-
Height: 4 inches
-
Width: 2.50 inches
Common Uses
- Tree-mounted downlighting
- Surface-mounted outdoor downlighting
- Walkways, patios, and seating areas
- Outdoor transition and accent lighting
Compatibility & Installation Notes
- Use only with a compatible 12V low-voltage landscape lighting transformer.
- Do not connect this fixture directly to 120V line voltage.
- Select a compatible MR16 lamp within the listed wattage rating.
- Confirm transformer capacity, cable length, voltage drop, mounting surface, and aiming angle before installation.
- Use outdoor-rated low-voltage cable connectors and follow Kichler instructions and local electrical requirements.
Frequently Asked Questions
Does the Kichler 15093WHT include a lamp?
No. A compatible MR16 lamp is sold separately.
Can this downlight be tree mounted?
Yes. The fixture is intended for tree or surface-mounted downlight applications when installed correctly.
Why choose the Textured White finish?
The white finish is useful when the fixture is mounted on lighter surfaces, posts, trim, or structures where a darker finish would be more visible.
Why Buy From Big Frog Supply?
The 15093WHT gives customers a clean white MR16 downlight option for tree or surface mounting. It is a useful choice when the lighting effect matters, but the fixture also needs to blend with lighter exterior surfaces.
Mounting/Installation
Lead Wire Length: 35 in.
Location Rating: CUL_12V
Light Source
Lamp Included: Not Included
Lamp Type: MR16
Max or Nominal Watt: 50.00
# of Bulbs/LED Modules: 1
Product/Ordering Information
SKU: 15093WHT
Finish: Textured White
UPC: 783927029582
Electrical
Operating Voltage Range: 12 VAC
Voltage: 12 V
Housing
Primary Material: ALUMINUM
