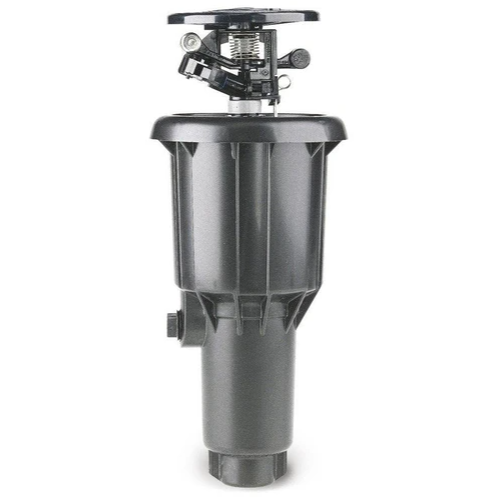

Rain Bird - 2045ASAM Maxi-Paw Impact Rotor Pop-Up Sprinklers With SAM

Specification

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.

Seal-A-Matic prevents run-off, puddling, and erosion caused by low head drainage. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.

• Deluxe Impact Rotor with Seal-A-Matic
• Proven impact drive
• Straight-through flow for superior performance in dirty water
• Blue #8 nozzle included
• Easy to adjust, easy to service
• No tools required to change nozzles
• Heavy-duty plastic case with sturdy, reinforced ribbed design
• Double-weighted arm for slower rotation and increased distance of throw
• Self-flushing inner trip with improved inner trip lever

• Powerful reverse action.
• Adjustable arm spring for low-pressure and low-gallonage operation.
• Energy efficient, low pressure and low-gallonage operation.
• 360° Full-circle OR arc adjustable from 20° to 340°.
• Precision Jet tube (PJ™) minimizes side splash.
• Hooded bearing for longer life.
• Distance control diffuser pin.
• Multi-function, pressure-activated wiper seal.
• Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
• Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet.
• Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
• FP trip for full- or part-circle operation.
• Side or combination bottom inlet for design flexibility.
• Side inlet installation is not recommended in freezing climates.
• Serviceable through the top of the case.
• Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
• Optional nonpotable cover(sold separately)

Model 2045ASAM
Rotor Series Maxi-Paw / Mini-Paw
Coverage Radius 22-45 ft
Inlet 1/2 or 3/4 in
Features Impact Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles, Low Angle Nozzles
Pop-Up Height 3 in
Dimensions
Overall height: 9 3/10" (23,6 cm)

Pop-up height: 3" (7,6 cm)

Exposed surface diameter: 5" (12,7 cm)

Specifications
Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)

Radius: 22 to 45 feet (6,7 to 13,7 m)

Radius with Radius Reduction Screw: 18 ft (5,4 m)

Pressure: 25 to 60 psi (1,7 to 4,1 Bars)

Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)

Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet; 1/2" (15/21) FPT side inlet

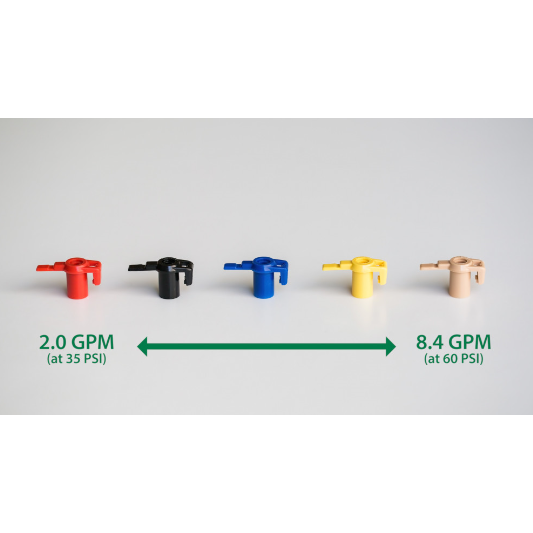

Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige

Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow

Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles

LA nozzle outlet trajectory is 11°

Coverage Arc 40° - 360° Reversing Full and Part-Circle

Pop-Up Height 3 in
Dimensions
Overall height: 9 3/10" (23,6 cm)

Pop-up height: 3" (7,6 cm)

Exposed surface diameter: 5" (12,7 cm)
