Rain Bird - 5004+PCSAM - Part-Circle Pattern 4" Pop-up Rotor with SAM Check Valve

Spec Sheet Install Manual

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Shrub Rotors are ideal for medium to large-size shrub areas and hillsides and evenly distribute water from 25 to 50 feet.

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows plants to grow healthy with no matting or bending.

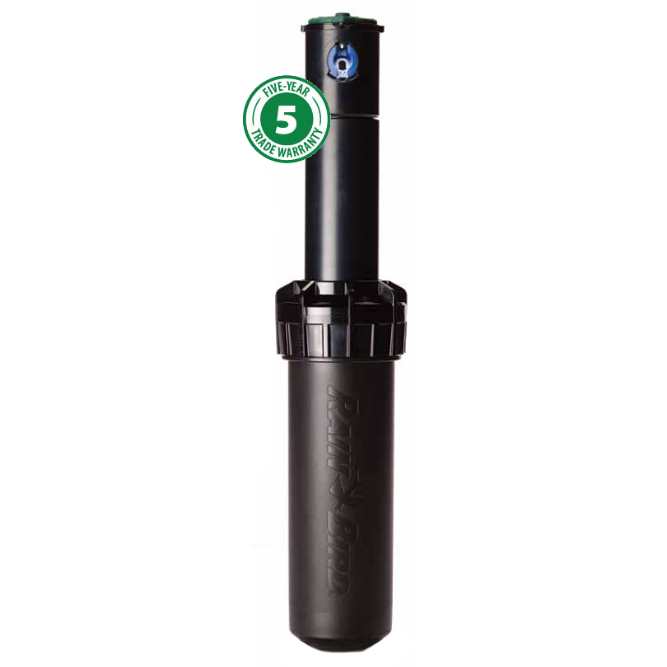

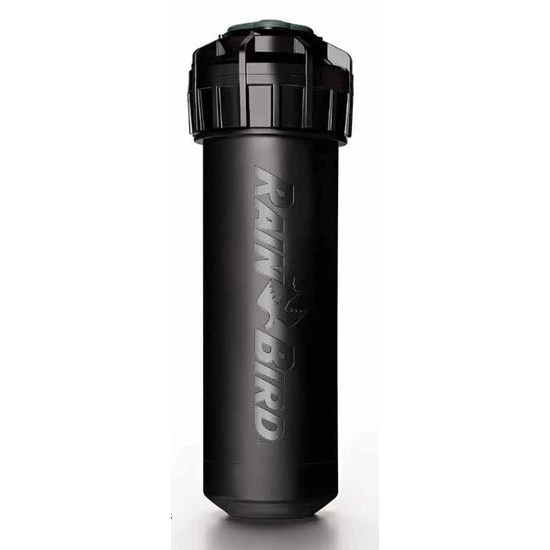

4 in. 5000 Series Part/Full-Circle Pattern Pop-up Rotor with Flow Shut-Off

• Faster maintenance with a new self-cleaning arc adjustment screw
• Heavy-duty cover assembly for extra durability

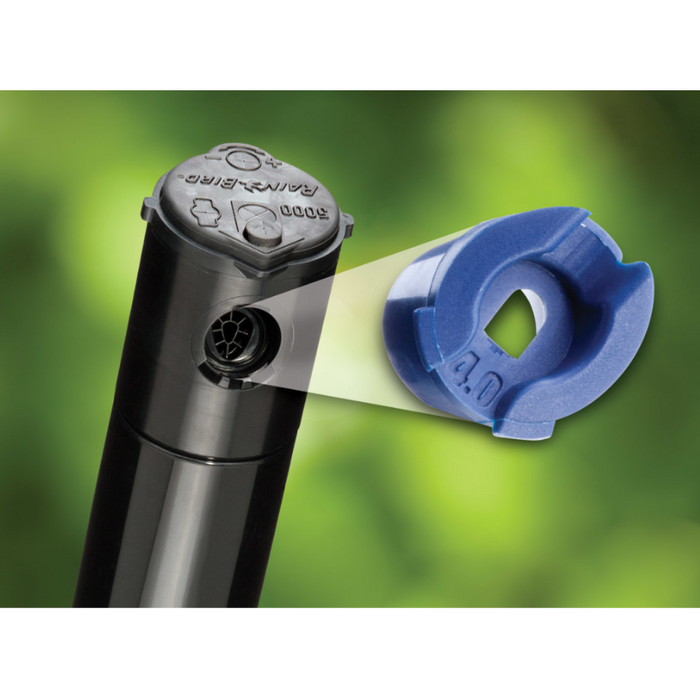

• Rain Curtain™ Nozzles
• Slip clutch mechanism for quick adjustment on installation
• Heavy-duty retract spring assures positive pop-down
• Top-adjust arc adjustment requiring only a flat-blade screwdriver
• 40 - 360° arc rotation and reversing full circle rotation in one
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
• Reinforced flow path for additional side load strength
• Additional O-rings and seals for extra protection in "gritty" water
• Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage

Related Articles

Pop-Up Height
4 in.
Check Valve
Check Valve
Flow Control
Flow Shut-off
Riser Material
Plastic
Type
Rotor
Application
Residential And Commercial
Body Height
7-3/8
Inlet Size
3/4 in.

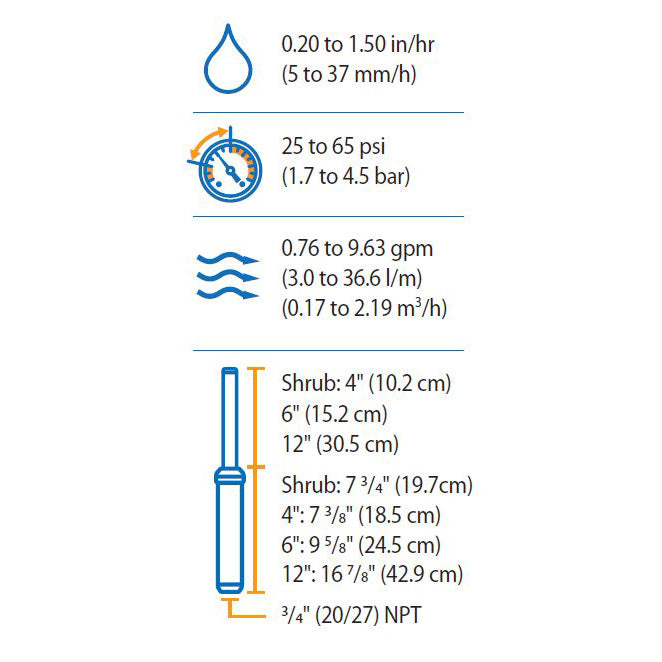

Pressure Range (PSI)
25-65
Warranty
5 Years
Spray Pattern
Part Circle Adjustable (40 - 360)
Spray Radius
25 ft. - 50 ft.
Advanced Features
Check Valve, Flow Shut-Off

Pop-Up Height
4 in.
Body Height
7-3/8
Inlet Size
3/4 in.
