Rain Bird - 4" 5004+FCSAMPRS Series Full-Circle Pattern Pop-up Rotor with PRS Pressure Regulation and SAM Check Valve

SKU 5004+FCSAMR
Original price $ 25.99 - Original price $ 25.99
Original price
$ 25.99
$ 25.99 - $ 25.99
Current price $ 25.99

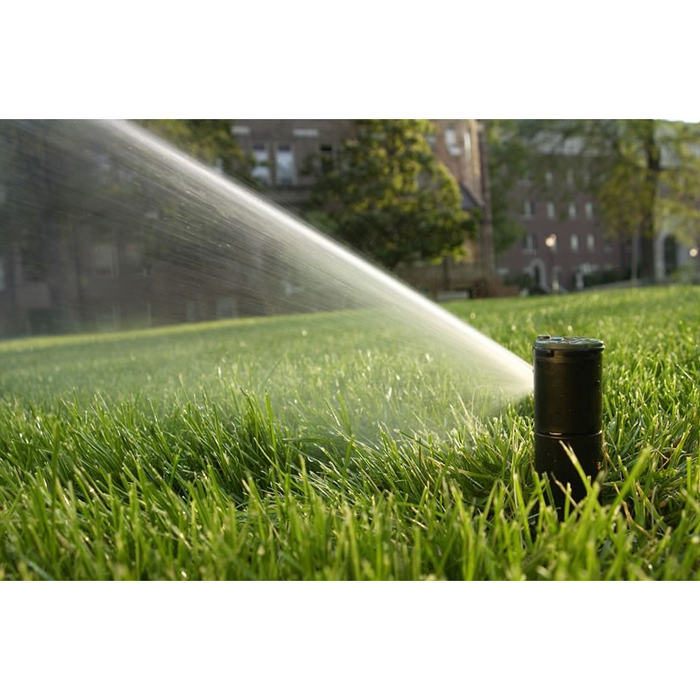

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding Results
Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance
The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering
Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

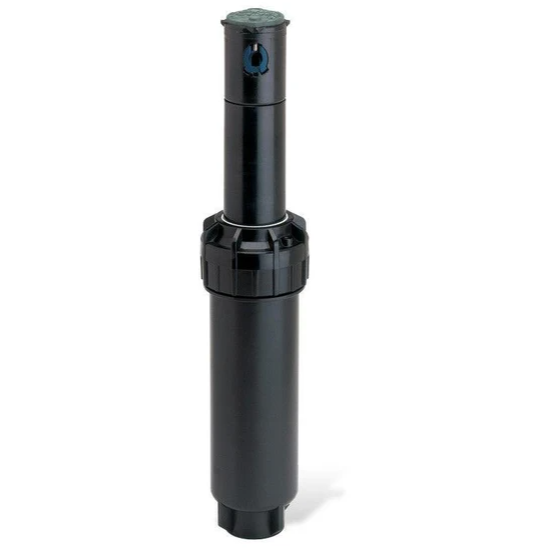

  • 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with PRS Pressure Regulation and SAM Check Valve
  • Flow Shut-Off
  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Heavy-duty cover assembly for extra durability
  • Rain Curtain™ Nozzles
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in "gritty" water
  • Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance
  • Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage


Related Articles

More Information
Model 5004+FCSR
Rotor Series 5000 / 5000 Plus
Coverage Radius 25-50 ft
Inlet 3/4 in
Features Gear Drive, PRS Pressure Regulating, Flow Shut-Off, Rain Curtain Nozzles
Pop-Up Height 4 in
Operating Range
Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
3/4" (20/27) NPT female bottom threaded inlet

Coverage Arc 360° Full Circle

Pop-Up Height 4 in
