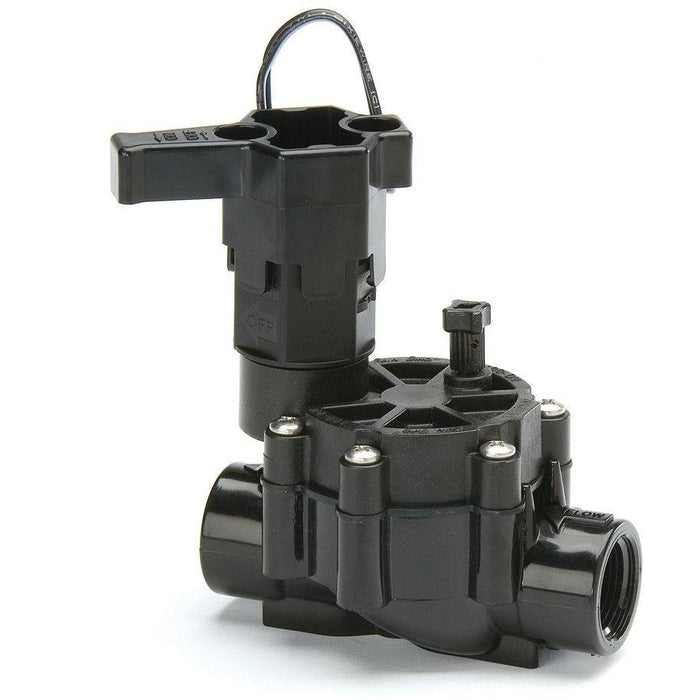

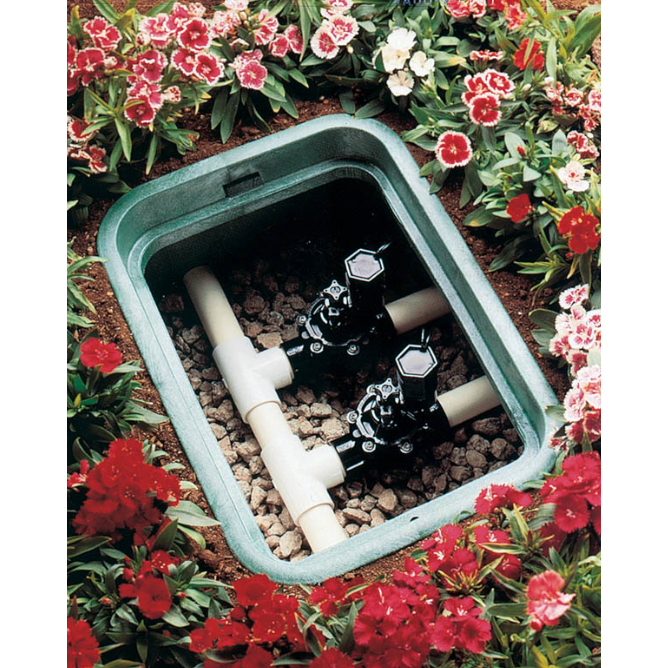

Rain Bird - 75DV 3/4" DV Series Inline Plastic Residential Irrigation Valve - Female Pipe Threads

Spec Sheet Install Manual

• 3/4 in. (20/27) standard in-line configuration
• Double-filtered pilot-flow design for maximum reliability
• Balanced-pressure diaphragm for long life
• External bleed to manually flush system of dirt and debris during installation and system start-up
• Internal bleed for spray-free manual operation
• Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

Additional features:

• All of our valves work with any standard sprinkler timer.
• Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
• Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
• 1.25 in. (3,2 cm) stainless steel phillips head screws.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers.

• Valve Size: 3/4 in
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Series: DV/DVF
• Operating Temperature: Up to 110° F (43° C)
• Dimensions:
• Height: 4 1/2" (11,4 cm)
• Width: 3 1/3" (8,4 cm)
• Length: 4 3/8" (11,1 cm)
• Electrical Specifications:
• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
• 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
• Solenoid coil resistance: 38 Ohms
• Flow Range: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream.
• Operating Pressure: 15 to 150 psi (1,0 to 10,4 bar)

Model 75DV
Valve Size 3/4 in
Valve Type Inline
Material Plastic
Valve Inlet/Outlet Configuration NPT Female x NPT Female Threaded
Valve Series DV/DVF
Operating Temperature Up to 110° F (43° C)
Dimensions
Height: 4 1/2" (11,4 cm)
Width: 3 1/3" (8,4 cm)
Length: 4 3/8" (11,1 cm)

Electrical Specifications
24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
Solenoid coil resistance: 38 Ohms

Flow Range 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream.
Operating Pressure 15 to 150 psi (1,0 to 10,4 bar)
