Spec Sheet

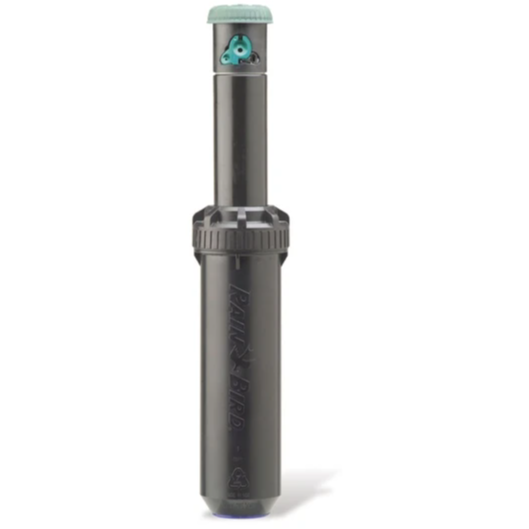

The Rain Bird® 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications.

It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications.

The Rain Bird® 8005 Rotor, with its extensive customer identified features and 80 foot radius, is ideal for watering sports fields, parks and other large turf applications.

8005 Rotors Feature

  • Memory Arc® returns the rotor to its original arc setting.
  • Non-strippable drive mechanism prevents damage from vandals.
  • Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
  • Optional stainless steel riser model helps deter vandalism on public turf areas.
  • Full and part circle operation in one unit to reduce inventory requirements.
  • Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle.
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection.
  • Seal-A-Matic™ (SAM) check device/riser to help prevent low head drainage.
  • Water-lubricated gear drive.
  • Rain Curtain™ nozzles for optimal distribution and close-in watering resulting in superior uniformity.
  • Nozzles are interchangeable from the front with no special tools.
  • Self-adjusting turbine stator allows nozzle replacement with no other adjustments required.
  • Heavy duty retract spring ensures positive pop-down.
  • Standard rubber cap. (Green)
  • Optional Purple rubber cover for nonpotable applications

Specifications:

  • Inlet Size: 1
  • Inlet Thread: Female NPT
  • Arc Adjustment Range: 50-360
  • Flow Control: 11.1 - 36.3 GPM
  • Pressure Rating/Range: 50 - 100
  • Precipitation Rate: 0.48 - 1.23


Over the years, a select few products have risen above the rest with their unparalleled performance. We're thrilled to share these gems with you. Whenever you spot the "From the Frog" badge, rest assured it's more than just a mark of quality—it's a symbol of our dedication and careful consideration in choosing the best for you.

Arc Adjustment Range: 50-360
Flow Control: 11.1 - 36.3 GPM
Pressure Rating/Range: 50 - 100
Precipitation Rate: 0.48 - 1.23

Inlet Size: 1
Inlet Thread: Female NPT
