Vu-Flow NT100-30P-NT1SC30 1 in. 30 Mesh Sediment Filter with Spare Screen
Brand: Vu-Flow | Supplier: American Granby | Bundle SKU: NT100-30P-NT1SC30
Product Overview
The Vu-Flow NT100-30P bundle pairs one complete 1 in. NT-series sediment filter with one additional NT30SC30 replacement screen. Both the installed element and the spare use 30-mesh polyester media, with an approximate 533-micron opening, so routine screen replacement keeps the same filtration rating.
The 30-mesh option provides a coarse, approximately 533-micron opening for larger suspended particles. Select it when downstream equipment permits coarse screening; finer sediment can pass through.
Key Features
- One NT100-30P filter plus one NT30SC30 spare element
- 30-mesh rating on both screens
- 1 in. slip connections
- Clear sump makes sediment buildup visible
- Bottom purge valve and reusable screens support routine service
What's Included
- 1 × NT100-30P complete filter with installed 30-mesh screen
- 1 × NT30SC30 additional 30-mesh standard-filter screen
Common Uses
- Water-system sediment pre-filtration where the specified mesh and flow range are suitable
- Protecting compatible irrigation valves and downstream equipment from suspended particles
- Keeping a matching spare screen available for filter service
Technical Specifications
- Filter model: NT100-30P
- Spare screen: NT30SC30
- Bundle quantity: One complete filter plus one additional screen
- Inlet/outlet: 1 in. slip
- Installed and spare screen rating: 30 mesh
- Approximate opening: 533 microns
- Screen media: Polyester
- Style: NT T-style standard screen filter
- Catalog flow range: 1–25 GPM; lower limit is the minimum for spin-out action
- Maximum pressure: 150 PSI at 73°F
- Maximum temperature: 100°F at 40 PSI
- Cleanout: 1/2 in. with purge valve
- Service: Water only
Dimensions
- Complete filter: 11-3/8 in. L × 5 in. W
Compatibility & Installation Notes
- Use NT30SC30 for like-for-like replacement of the standard screen. Match the filter family and body size as well as mesh.
- Install after the pump pressure switch; do not install a filter with a purge valve on the suction side of a pump.
- Observe flow direction and leave clearance below the sump for removal. Isolate and depressurize before opening the housing.
- Sediment screening does not remove dissolved contaminants or disinfect water.

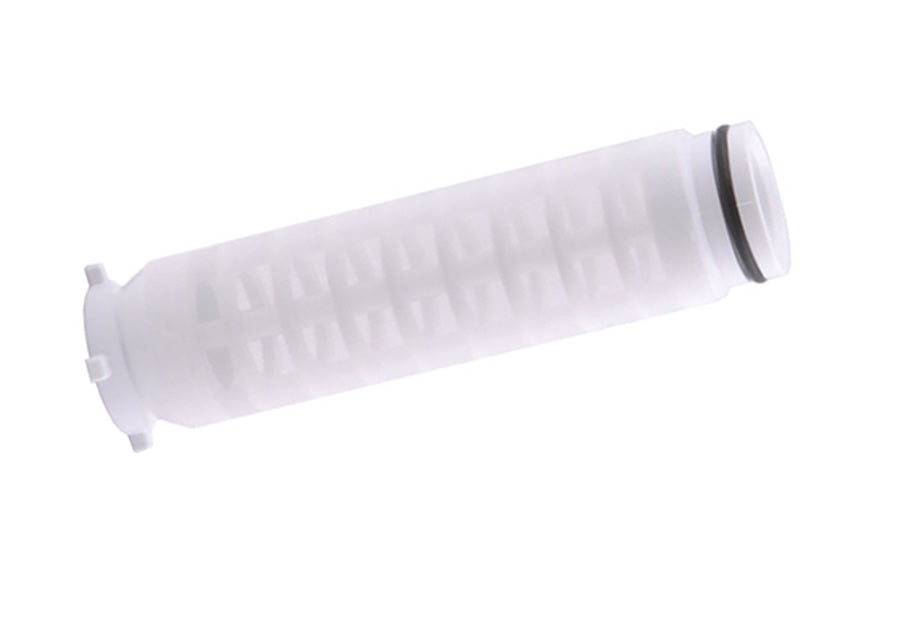

- Supplier photographs show the NT filter and replacement-screen families. This bundle supplies one filter and one additional screen; the photographs are not a picture of the packed kit.
Frequently Asked Questions
What is included?
One complete NT100-30P filter with its installed 30-mesh screen, plus one additional NT30SC30 30-mesh replacement screen. There are two screen elements in total.
What pipe connections does the filter use?
The NT100-30P has 1 in. slip inlet and outlet connections.
What does the mesh rating mean?
The 30-mesh screen has an approximate 533-micron opening. Choose it for the suspended sediment you need to screen and the requirements of downstream equipment.
Can the screens be cleaned and reused?
Yes. Use the purge valve for routine flushing. When further cleaning is needed, isolate and depressurize the system before removing the sump and element.
Why Buy from Big Frog Supply?
The NT100-30P offers 1 in. slip connections and coarse 30-mesh screening, helping you avoid selecting a finer element than your application requires. Its included NT30SC30 spare maintains the same approximately 533-micron opening when you replace the installed element.
Filter model: NT100-30P
Spare screen: NT30SC30
Bundle quantity: One complete filter plus one additional screen
Inlet/outlet: 1 in. slip
Installed and spare screen rating: 30 mesh
Approximate opening: 533 microns
Screen media: Polyester
Style: NT T-style standard screen filter
Catalog flow range: 1–25 GPM; lower limit is the minimum for spin-out action
Maximum pressure: 150 PSI at 73°F
Maximum temperature: 100°F at 40 PSI
Cleanout: 1/2 in. with purge valve
Service: Water only
