Vu-Flow NT75-100P-NT1SC100 3/4 in. 100 Mesh Sediment Filter with Spare Screen
Brand: Vu-Flow | Supplier: American Granby | Bundle SKU: NT75-100P-NT1SC100
Product Overview
The Vu-Flow NT75-100P bundle pairs one complete 3/4 in. NT-series sediment filter with one additional NT30SC100 replacement screen. Both the installed element and the spare use 100-mesh polyester media, with an approximate 152-micron opening, so routine screen replacement keeps the same filtration rating.
Choose the 100-mesh option when its approximately 152-micron opening suits your suspended sand and grit. The threaded 3/4 in. ports suit matching threaded water piping.
Key Features
- One NT75-100P filter plus one NT30SC100 spare element
- 100-mesh rating on both screens
- 3/4 in. female pipe thread connections
- Clear sump makes sediment buildup visible
- Bottom purge valve and reusable screens support routine service
What's Included
- 1 × NT75-100P complete filter with installed 100-mesh screen
- 1 × NT30SC100 additional 100-mesh standard-filter screen
Common Uses
- Water-system sediment pre-filtration where the specified mesh and flow range are suitable
- Protecting compatible irrigation valves and downstream equipment from suspended particles
- Keeping a matching spare screen available for filter service
Technical Specifications
- Filter model: NT75-100P
- Spare screen: NT30SC100
- Bundle quantity: One complete filter plus one additional screen
- Inlet/outlet: 3/4 in. female pipe thread
- Installed and spare screen rating: 100 mesh
- Approximate opening: 152 microns
- Screen media: Polyester
- Style: NT T-style standard screen filter
- Catalog flow range: 1–25 GPM; lower limit is the minimum for spin-out action
- Maximum pressure: 150 PSI at 73°F
- Maximum temperature: 100°F at 40 PSI
- Cleanout: 1/2 in. with purge valve
- Service: Water only
Dimensions
- Complete filter: 11-3/8 in. L × 5 in. W
Compatibility & Installation Notes
- Use NT30SC100 for like-for-like replacement of the standard screen. Match the filter family and body size as well as mesh.
- Install after the pump pressure switch; do not install a filter with a purge valve on the suction side of a pump.
- Observe flow direction and leave clearance below the sump for removal. Isolate and depressurize before opening the housing.
- Sediment screening does not remove dissolved contaminants or disinfect water.

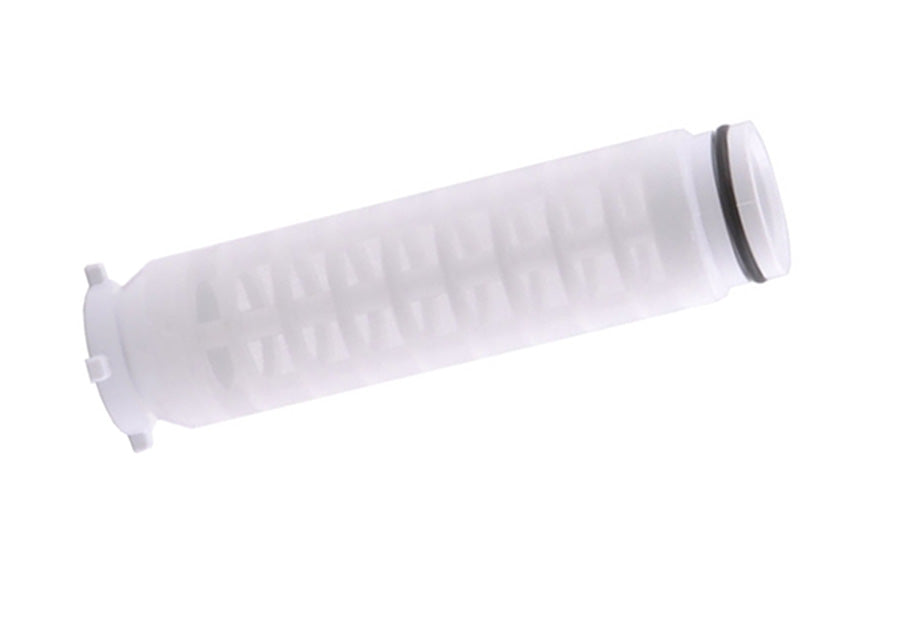

- Supplier photographs show the NT filter and replacement-screen families. This bundle supplies one filter and one additional screen; the photographs are not a picture of the packed kit.
Frequently Asked Questions
What is included?
One complete NT75-100P filter with its installed 100-mesh screen, plus one additional NT30SC100 100-mesh replacement screen. There are two screen elements in total.
What pipe connections does the filter use?
The NT75-100P has 3/4 in. female pipe thread inlet and outlet connections.
What does the mesh rating mean?
The 100-mesh screen has an approximate 152-micron opening. Choose it for the suspended sediment you need to screen and the requirements of downstream equipment.
Can the screens be cleaned and reused?
Yes. Use the purge valve for routine flushing. When further cleaning is needed, isolate and depressurize the system before removing the sump and element.
Why Buy from Big Frog Supply?
The NT75-100P combines 3/4 in. female pipe thread ports with 100-mesh screening, making it a defined choice for matching threaded piping and approximately 152-micron sediment screening. The included NT30SC100 keeps a matching element on hand when the installed screen needs replacement.
Filter model: NT75-100P
Spare screen: NT30SC100
Bundle quantity: One complete filter plus one additional screen
Inlet/outlet: 3/4 in. female pipe thread
Installed and spare screen rating: 100 mesh
Approximate opening: 152 microns
Screen media: Polyester
Style: NT T-style standard screen filter
Catalog flow range: 1–25 GPM; lower limit is the minimum for spin-out action
Maximum pressure: 150 PSI at 73°F
Maximum temperature: 100°F at 40 PSI
Cleanout: 1/2 in. with purge valve
Service: Water only
