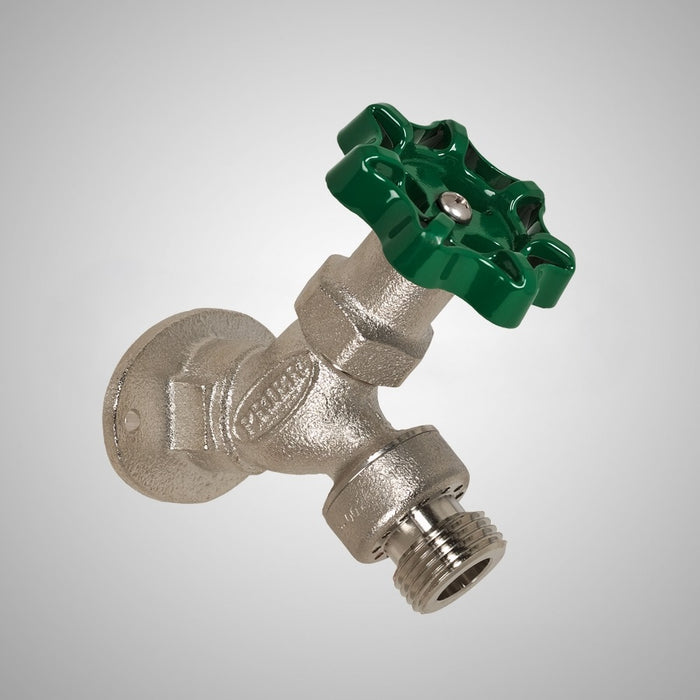

Prier C-157 Satin-Nickel Sweat-Inlet Anti-Siphon Angle Sill Faucet
Brand: Prier | Model: C-157 | SKUs: C-157NP.50, C-157NP.50-SGH
Product Overview
Connect a protected hose faucet to a copper supply in a non-freezing location. The Prier C-157NP.50 uses a sweat inlet and satin-nickel finish, with a standard or SGH soft-grip handle option. Match the copper size and joining arrangement before selecting it for a basement, garage or mild-climate exterior connection.
Key Features
- Cast-brass body and mounting flange.
- Satin-nickel finish.
- Vacuum breaker and backflow check.
- Standard and soft-grip handle options.
Common Uses
Non-freezing copper-pipe hose connections requiring anti-siphon protection.
Technical Specifications
- C-157NP.50: Sweat inlet, satin nickel, standard handle
- C-157NP.50-SGH: Sweat inlet, satin nickel, soft-grip handle
- Inlet: 1/2-inch sweat; 3/4-inch sweat use requires Type M copper
- Outlet: 3/4-inch garden hose thread
- Protection: P-002 vacuum breaker/backflow check, ASSE 1011
- Body: Cast brass
Dimensions
- Inlet: 1/2 inch SWT
- Secondary 3/4-inch sweat compatibility: Type M copper only
- Hose outlet: 3/4 inch garden hose thread
Compatibility & Installation Notes
Confirm the copper connection before soldering. The manufacturer's three-quarter-inch sweat option applies only to Type M copper. Orient the handle up and hose outlet down; keep the valve open when applying soldering heat. Flush the supply and test for leaks. Select a freezeless hydrant for freezing exposure.
Frequently Asked Questions
Is the C-157 inlet female threaded?
No. C-157 uses a sweat connection.
Can it be used with 3/4-inch copper?
Prier limits the 3/4-inch sweat connection to Type M copper.
Is it freezeless?
No. Install it in a non-freezing location.
