Arlington GP19B Gard-N-Post 19.5 in. Outdoor Fixture and GFCI Post, Black

Product Overview

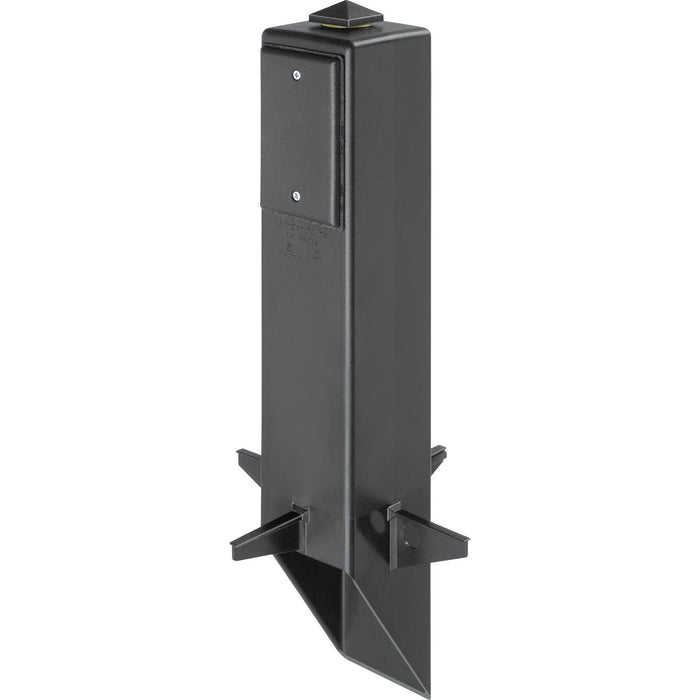

The Arlington GP19B Gard-N-Post is a 19.5 in. black outdoor post that creates a supported mounting point for a compatible landscape light fixture, GFCI device, or combined power and low-voltage installation. It is designed for locations where an outlet or fixture is needed away from a building wall, such as gardens, walkways, patios, and landscaped areas. Side openings support back-to-back device arrangements or separated power and low-voltage wiring.

Built-in stabilizers help keep the post rigid in the ground, and the angle-cut base provides access for underground wiring. The included components support several installation configurations, but the selected fixture or device, conductors, separation method, and weatherproofing must meet applicable electrical requirements. The post supports compatible fixtures up to 18 lb with 1/2 in. or 3/4 in. NPT threads.

Key Features:

• Black 19.5 in. outdoor post
• For compatible fixtures or GFCI devices
• Power and low-voltage separation options
• Built-in stabilizers
• Angle-cut wiring access

Technical Specifications:

• Height: 19.470 in.
• Width: 3.361 in.
• Weight: 2.926 lb
• Knockouts: Four 1/2 in.
• Fixture Capacity: Up to 18 lb

Installation Notes:

Confirm fixture threads, device type, wiring separation, burial method, and local electrical requirements. Installation should be completed by a qualified person where required.

FAQ:

Can it support a light fixture?
Yes, a compatible fixture up to 18 lb with the stated thread size.

Can power and low voltage share the post?
They may be separated using the included components when the installation permits.
