Unique Lighting Systems - Bishop 12V Up-Light, No Lamp


  • $ 9500

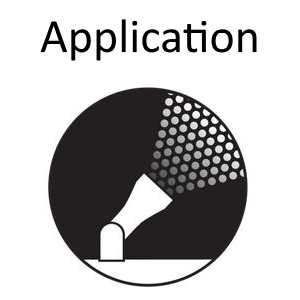

The Bishop is perfect when illuminating trees, tall structures and vast spaces. The Bishop can be used in numerous applications like back, shadow or graze lighting. It is also the perfect directional light to use when up lighting columns.

Body:

Precision extruded from brass . Features an integral knuckle for maximum mechanical strength.

Gasket:

High temperature silicone o-ring for water-tight seal.

Knuckle:

Machined brass knuckle with a solid brass adjustable thumb screw. Vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.

Shroud:

Precision extruded from brass.

Lamp:

For use with FLEX GOLD Series PAR36 LED lamps, available in 5W, 7W, and 13W, in both 2700K and 3000K color temperatures. Also suitable for use with halogen PAR36 lamp up to 50W.

Electrical Requirements:

A remote 12V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX GOLD Series PAR36 LED lamps is 10V-15V.

Lamp Connection:

PAR 36: Screw terminal.

Wiring:

Exclusive UF Intelli-Flex wire with anti-moisture migration connections.

Mounting Stake

Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
