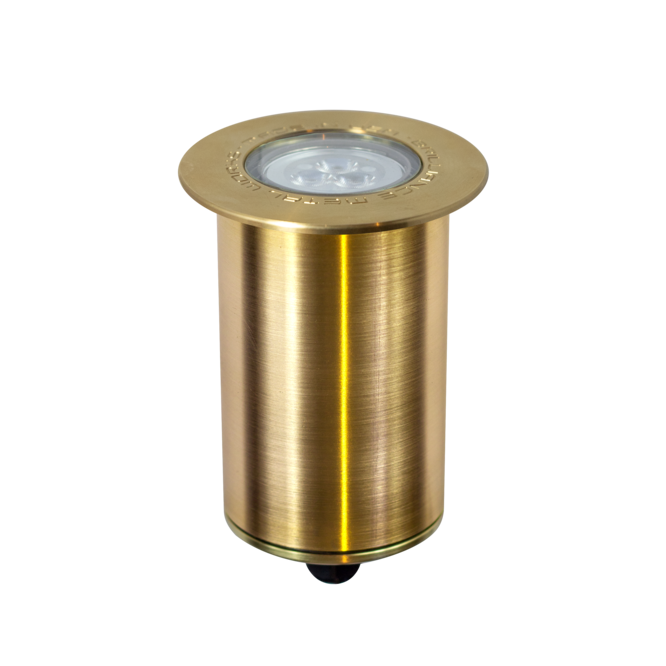

The Carlsbad Well Light is fitted for any MR16 lamp and comes to life with the Brilliance Chameleon MR16. The flat top comes in a brass finish.
CARLSBAD WELL LIGHT | |
---|---|
Use | Well Lighting & Underground Up Lighting |
Lamp | MR16, 4W, 2700K, 30° |
Includes | LightingShrink Professional Crimp and Heat Shrink Cable Connector |
Finish | Brass, Copper, or Blackened Brass |
Fixture Finish Maintenance
The Carlsbad fixture is available in the following finishes: machined copper, brass, or blackened brass. These metals offer a beautiful living finish that weathers over time to a unique patina. If you prefer to maintain the original finish, we recommend wiping down the fixture periodically with a light oil, such as WD-40.
INSTALLATION
INSTALLING THE LAMP
-
Remove the rear cap and pull out the spring.
-
Set the MR16 on top of the spring and plug into the socket.
-
Insert this assembly into the fixture body with the front of the lamp toward the lens.
-
Screw the back cap onto the fixture body and hand tighten.
INSTALLING THE FIXTURE
-
Dig a hole in the ground approximately 8” wide by 10” deep.
-
Connect the power cable to the fixture, leaving 2 feet of wire coiled in the bottom of the fixture for future service.
-
Pour 5” of pea gravel in the hole.
-
Place the fixture in the center of the hole.
-
Add more pea gravel to fill the hole 1” before the fixture lip. This will allow for proper drainage around the fixture.
-
Apply glass wax on top of the lens to protect against standing water.
