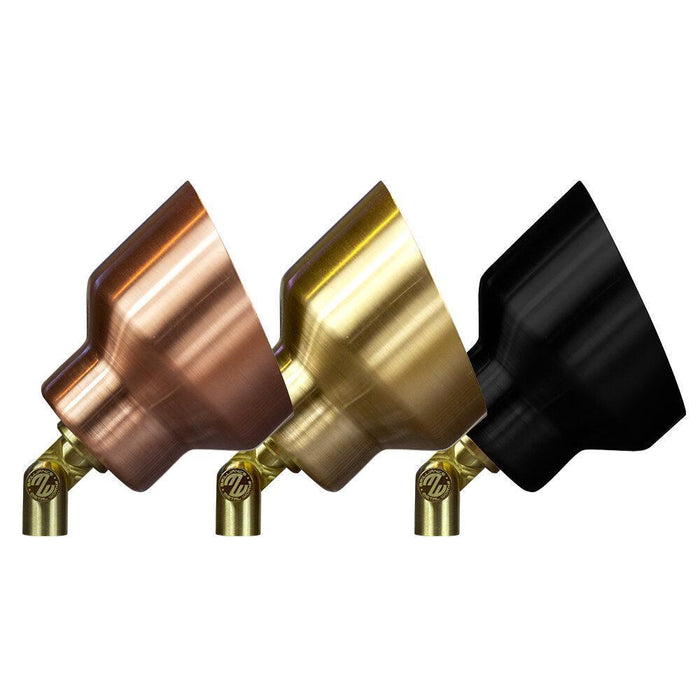

Brilliance Grand Canyon Directional Light

Original price $ 277.79 - Original price $ 368.36
Original price
$ 277.79
$ 277.79 - $ 368.36
Current price $ 277.79
Choose a Options

The Brilliance Grand Canyon Directional Light comes complete with a built-in glare shield, Brilliance Metal Works signature adjusting system with 22 points of articulation in 10-degree increments, ABS mounting stake, and Lighting Shrink professional crimp and heat shrink cable connector. For loose soil applications, pair the Grand Canyon with the Impaler accessory.

USE: Uplighting, grazing, backlighting, and wall washing (when used with 120 lamps only)

PAR36, 4W, 2700K, 30

FINISH: Machined copper, brass, or blackened brass

Fixture Finish Maintenance

The Grand Canyon fixture is available in the following finishes: machined copper, brass, or blackened brass. These metals offer a beautiful living finish that weathers over time to a unique patina. If you prefer to maintain the original finish, we recommend wiping down the fixture periodically with a light oil, such as WD-40.



Installing the Lamp

  1. Loosen the terminal screws on the PAR36 lamp.

  2. Slide the “U” terminal connector under each terminal screw and tighten.

  3. Set the edge of the lamp onto the first 2 stainless steel flex fingers. Pull back on the remaining flex finger and snap the lamp into the fixture.

Installing the Ground Stake

  1. Dig a hole in the ground approximately 4” wide by 10” deep.  A rubber mallet may be used to drive the stake into the ground when working with soft soil.

  2. Lay the power cable from the fixture into the slotted relief on the stake.

  3. Screw the fixture into the stake.

  4. Use a level to assure the top of the stake is level with the ground.

Adjusting the Fixture

  1. Turn the knuckle counter-clockwise to loosen the knuckle.

  2. Rotate the fixture vertically to the desired position.

  3. Turn the knuckle clockwise to hold it in the desired position.

    Adjusting the fixture allows for dark sky ordinances applications.

Beam Spread: 30°
Color: red, green, blue, amber (7w & 11w only) Silver Green
Kelvin Temperature: 2200, 2700, 3000, 5700
Operating Range: 8-25VAC
Replaces: 20/35/50W Halogen
CRI: 85
IP: 68
Chipset: CREE
Lamp life (hours): 50,000
Warranty (years): 5
