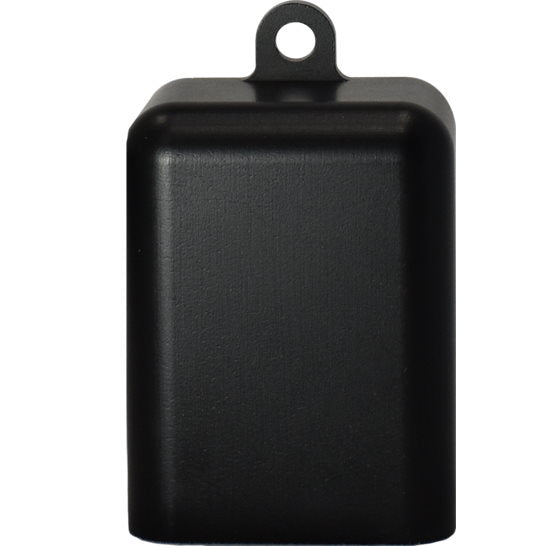

Brilliance GUADALUPE-2700-BR-BLK Guadalupe Wall Light Black w/Integrated 200lm, 2700K, 90DEG, 8-15VAC, IP65
|GUADALUPE WALL LIGHT|
|Use||Walls, Fence Posts, Around Pools, and Other Outdoor Living Areas|
|Includes||12 ft Lead, 2 #8 Mounting Screws for Wood or Sheet Metal, Mounting Template|
2700K, 3.8W, 200 Lumens, 90°, CRI 80, IP65, 8-15VAC, 3 year warranty, 35,000 hours
3000K, 3.8W, 210 Lumens, 90°, CRI 80, IP65, 8-15VAC, 3 year warranty, 35,000 hours
The Guadalupe fixture is available in the following finishes: machined brass or blackened brass.
Machined brass offers a beautiful living finish that weathers over time to a unique patina.
To clean the fixture, periodically wipe it down with a mild soap and water.
INSTALLING THE FIXTURE
Using a torpedo level and the mounting template provided, align and mark the screw and cable holes.
Drill the appropriate holes for the building materials to which the fixture will be mounted. Pre drill if necessary.
Insert and thread in the bottom mounting screw.
Pass the fixture cable through the larger center hole.
Hang the fixture on the bottom screw.
Align the top mounting tab with the top pilot hole and insert the mounting screw.
Tighten the top mounting screw until snug and then finish tightening the bottom screw until snug.
Connect the fixture wires to the main cable coming from the transformer.
