Product Overview

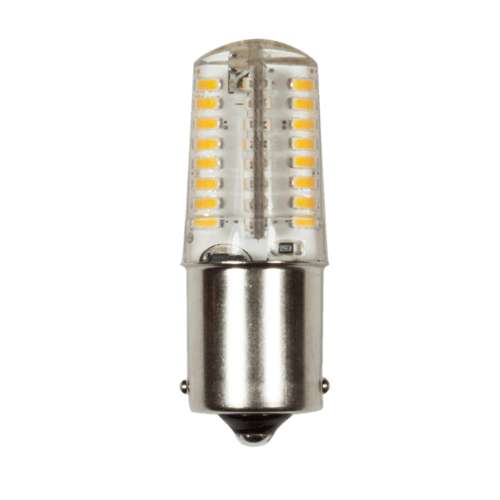

The Brilliance SCB Ecostar 3W LED Lamp family provides compact low-voltage replacement lamps for compatible fixtures that accept a single-contact bayonet lamp. Available in 2700K and 3000K, each lamp produces 240 lumens with an omni-directional beam for pathway, step, and area-lighting applications.
Key Features:
- 3W SCB Ecostar LED lamp family
- 2700K and 3000K color temperature options
- 240 lumen output
- Omni-directional beam pattern
- 8-14VAC operating range
- IP65 rating and 25,000-hour rated life
Common Uses:
- Compatible pathway and area light fixtures
- Step and deck lighting
- Low-voltage fixture retrofits using an SCB lamp
Technical Specifications:
-
Brand: Brilliance LED
-
Variant SKUs: BRI-SCB-ECO-3-2700 and BRI-SCB-ECO-3-3000
-
Wattage: 3W
-
Lumens: 240
-
Beam Spread: Omni-directional
-
Color Temperature Options: 2700K and 3000K
-
Operating Range: 8-14VAC
-
Halogen Replacement: 20W
-
CRI: 95
-
IP Rating: IP65
-
Rated Life: 25,000 hours
-
Warranty: 3 years
Installation & Compatibility Note:
Confirm the fixture accepts a compatible SCB lamp and verify transformer voltage, socket fit, fixture clearance, and selected color temperature before installation.
FAQ
Which color temperatures are available?
The active variants include 2700K and 3000K.
What voltage range does the lamp use?
It operates on compatible 8-14VAC low-voltage systems.
What type of socket should I confirm?
Confirm that the fixture accepts the compatible single-contact bayonet lamp style.
