Product Overview

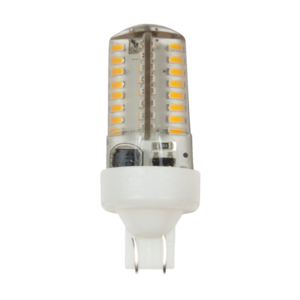

The Brilliance T5 Ecostar 3W LED Lamp family provides compact low-voltage replacement lamps for compatible pathway, step, and landscape fixtures that accept a T5 wedge lamp. The 2700K and 3000K options deliver omni-directional light while using 3W.
Key Features:
- 3W T5 Ecostar LED lamp family
- 2700K and 3000K color temperature options
- 240 lumens at 2700K and 245 lumens at 3000K
- Omni-directional beam pattern
- 8-14VAC/DC operating range
- IP65 rating and 25,000-hour rated life
Common Uses:
- Compatible pathway and step lights
- Low-voltage landscape fixture retrofits
- Replacing compatible 20W halogen T5 lamps
Technical Specifications:
-
Variant SKUs: BRI-T5-ECO-3-2700 and BRI-T5-ECO-3-3000
-
Wattage: 3W
-
Color Temperature Options: 2700K and 3000K
-
Lumens: 240 at 2700K; 245 at 3000K
-
Beam Spread: Omni-directional
-
Operating Range: 8-14VAC/DC
-
CRI: 95
-
IP Rating: IP65
-
Rated Life: 25,000 hours
-
Warranty: 3 years
Installation & Compatibility Note:
Confirm the fixture accepts a compatible T5 wedge lamp and verify voltage, socket fit, lamp clearance, and selected color temperature before installation.
FAQ
Which color temperatures are available?
The family includes 2700K and 3000K variants.
What voltage range does it use?
It operates on compatible 8-14VAC/DC systems.
What halogen wattage can it replace?
It is designed to replace a compatible 20W halogen lamp.
