Brilliance LED - Tee Wall Washer

Spec Sheet

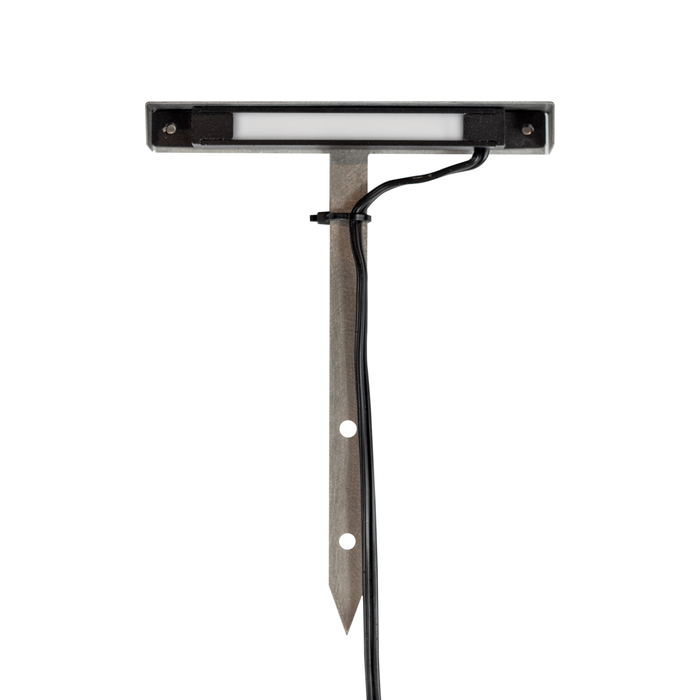

The Tee Wall Washer Light comes complete with a one-piece stainless-steel ground stake, glare shield and integrated LED. For ease of installation, the power cable comes zip tied to the ground stake. Dimmable with Brilliance Dimmer and most magnetic transformers. Light source UL Certified E511083.

Features:

• Use: Up Lighting/Back Lighting & Grazing Low Profile Pathway Lighting
• Finish:  Brass, Copper, or Brass w/ Black Cerakote®
• Includes:
• LightingShrink Professional Crimp
• Heat Shrink Cable Connector

Specifications 2700K:

• Lamp Type:  Integrated
• Wattage:  1.5W
• Kelvin Temperature:  2700K
• Lumens:  110
• CRI:  85
• IP:  65
• Operating Range:  8-15VAC
• Warranty (years):  5

Specifications 3000K:

• Lamp Type:  Integrated
• Wattage:  1.5W
• Kelvin Temperature:  3000K
• Lumens:  110
• CRI:  85
• IP:  65
• Operating Range:  8-15VAC
• Warranty (years):  5

INSTALLING THE FIXTURE

1. Dig a hole in the ground approximately 1” wide by 4” deep.

2. Insert the built-in stake into the hole and aim the fixture in the preferred direction and angle.

3. For soft soil, gently push the stake into the ground.

4. Lay the power cable from the fixture into the existing cable trench and use the LightingShrink cable connector to join the fixture cable to the main cable.

Specifications 2700K:

Lamp Type: Integrated
Wattage: 1.5W
Kelvin Temperature: 2700K
Lumens: 110
CRI: 85
IP: 65
Operating Range: 8-15VAC
Warranty (years): 5
Specifications 3000K:

Lamp Type: Integrated
Wattage: 1.5W
Kelvin Temperature: 3000K
Lumens: 110
CRI: 85
IP: 65
Operating Range: 8-15VAC
Warranty (years): 5
