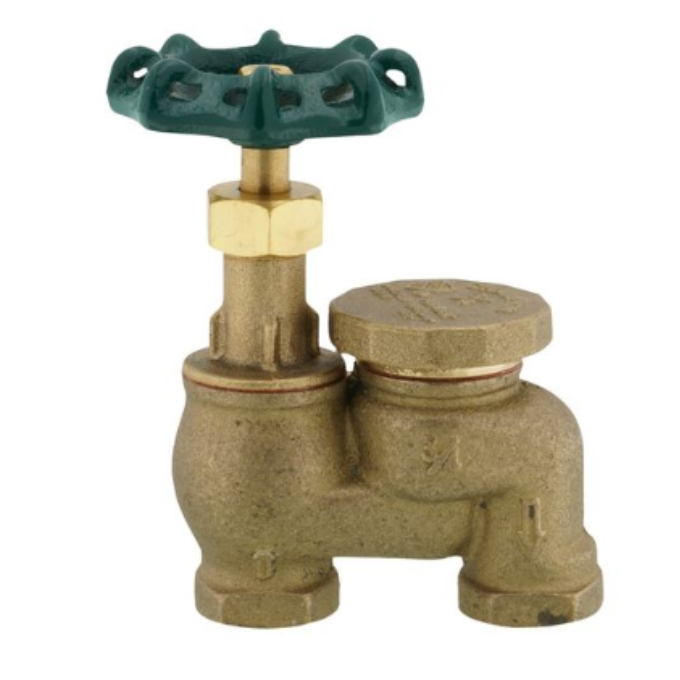

Champion Irrigation 466-075Y 3/4-Inch Manual Brass Anti-Siphon Valve
Brand: Champion Irrigation | SKU: 466-075Y
Product Overview
The Champion 466-075Y is a 3/4-inch manual brass anti-siphon valve for controlling an outdoor irrigation zone while helping protect the water supply from backsiphonage. Its union connection allows the valve to be disconnected more easily for service.
Choose this model for a manually operated irrigation zone that requires a 3/4-inch valve and above-ground anti-siphon protection. Confirm the pipe size, flow direction, installation height, and local backflow requirements before ordering.
Key Features
- Manual irrigation-zone control
- Integrated anti-siphon valve body
- Durable brass construction
- Union connection simplifies installation and service
- Full-size waterway helps limit pressure loss
- Repairable with compatible Champion Irrigation parts
Common Uses
- Manual control of residential irrigation zones
- Above-ground lawn and landscape watering systems
- Replacement of a compatible 3/4-inch Champion 466 Series valve
Technical Specifications
-
Connection size: 3/4 in.
-
Operation: Manual
-
Valve series: 466
-
Body material: Brass
-
Connection feature: Union
Compatibility & Installation Notes
Install above ground in the correct flow direction and at the height required by applicable irrigation and backflow codes. Confirm 3/4-inch piping and adequate service clearance. Champion Irrigation products are intended for irrigation use and are not designed for potable-water delivery.
Frequently Asked Questions
Does this valve require an irrigation controller?
No. The 466-075Y is manually operated.
Does it include a union?
Yes. This model includes a union connection for easier installation and service.
Can it be converted to automatic operation?
Compatible Champion automatic actuators can convert supported manual valves, but the valve model, size, and actuator compatibility must be confirmed first.
Can this valve be installed below ground?
Anti-siphon valves are generally installed above ground according to local code and manufacturer requirements.
