Champion CL466-075 3/4-Inch Automatic Anti-Siphon Irrigation Valve
Brand: Champion Irrigation | SKU: CL466-075
Product Overview

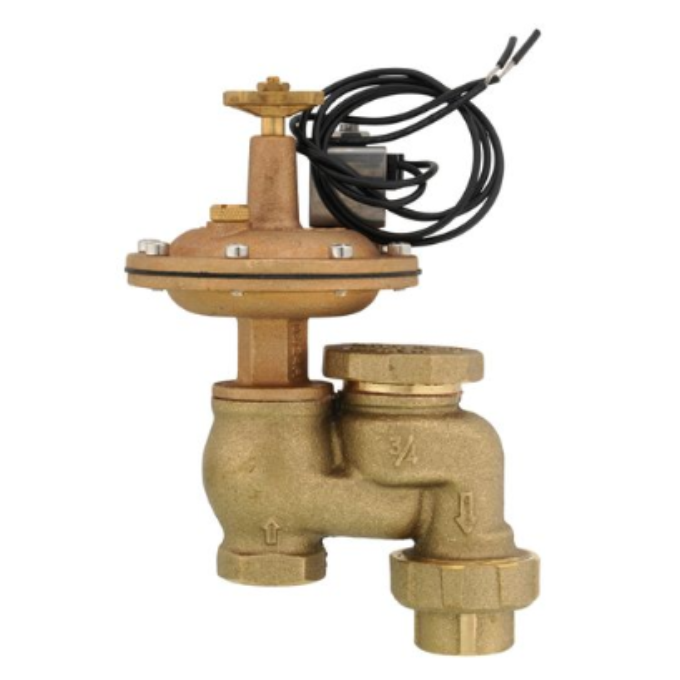

The Champion CL466-075 combines a 3/4-inch brass anti-siphon irrigation valve with a factory-installed Classic automatic actuator and union connection. It provides electrically controlled zone operation while helping prevent backsiphonage in compatible outdoor irrigation systems.
Choose this model when you need a complete 24VAC automatic valve assembly rather than a replacement actuator alone. Before ordering, confirm the 3/4-inch NPT connection size, available flow, controller voltage, installation orientation, and local backflow requirements.
Key Features
- Complete automatic anti-siphon irrigation valve assembly
- Classic actuator with manual bleed screw and flow control
- Durable brass construction
- Union connection simplifies installation and service
- Fully repairable with compatible Champion Irrigation repair kits
Common Uses
- Automatic control of residential or light-commercial irrigation zones
- Replacement of a compatible 3/4-inch Champion anti-siphon valve assembly
- Outdoor irrigation systems requiring an above-ground anti-siphon valve
Technical Specifications
-
Connection size: 3/4 in. NPT
-
Actuator style: Classic
-
Solenoid: 24VAC, 60 Hz
-
Lead wire length: 14 in.
-
Maximum pressure: 150 PSI
-
Minimum flow: 5 GPM
-
Material: Brass
Compatibility & Installation Notes
Install the valve above ground and in the correct flow direction according to applicable irrigation and backflow requirements. Confirm the irrigation controller supplies 24VAC and verify the 3/4-inch connections before ordering. Champion Irrigation products are intended for irrigation use and are not designed for potable-water delivery.
Frequently Asked Questions
Does this include both the valve and actuator?
Yes. CL466-075 is a complete 3/4-inch anti-siphon valve with a factory-installed Classic automatic actuator and union.
What type of controller does it require?
It uses a 24VAC, 60 Hz solenoid and should be connected to a compatible irrigation controller.
Can the actuator be operated manually?
Yes. The Classic actuator includes a manual bleed screw and flow control.
Can this be used for drinking water?
No. Champion Irrigation products are intended for irrigation systems, not potable-water delivery.
