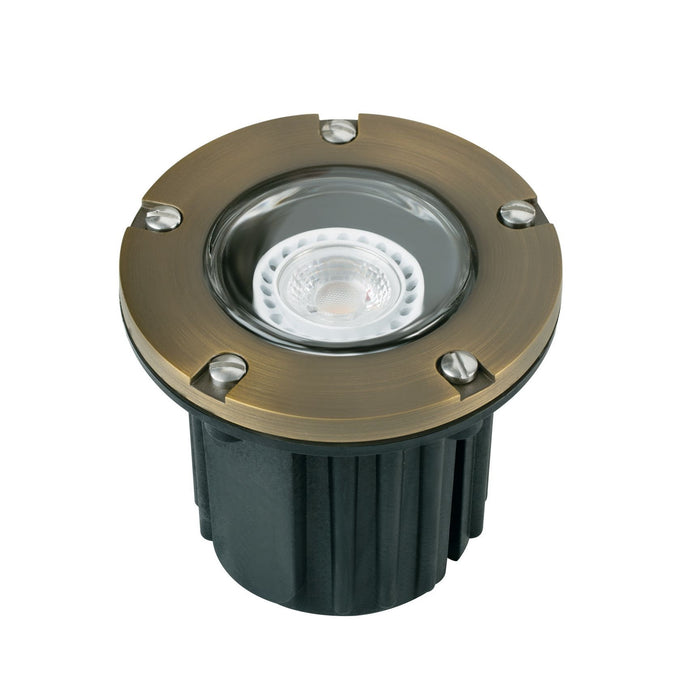

Corona Lighting CL-316B-AB Antique Bronze MR16 Well Light, No Lamp

Brand: Corona Lighting | SKU: CL-316B-AB

Product Overview

The Corona Lighting CL-316B-AB is an antique bronze MR16 well light that places a low-voltage accent-light source close to grade for uplighting trees, walls, columns, and landscape features. Its injection-molded composite housing supports a diecast brass faceplate and flat heat-resistant glass lens. The adjustable ceramic bi-pin socket accepts a compatible 12V MR16 lamp, sold separately, so the selected lamp establishes the final brightness, beam spread, and color temperature.

This fixture should be planned as one component of a complete landscape lighting system. Verify the lamp's size, voltage, wattage, beam angle, and outdoor suitability, and include its load when calculating transformer capacity. The installation also needs suitable drainage, direct-burial cable connections, service access, and an approved burial or concrete-encasement method. Where concrete mounting is planned, confirm the role and fit of the listed CX-237 pour kit before work begins. Account for cable length and voltage drop when selecting wire gauge and the transformer output tap.

Key Features:

  • Antique bronze MR16 well light
  • Injection molded composite housing
  • Diecast brass faceplate with silicone O-ring gasket
  • Clear heat-resistant flat glass lens
  • Adjustable ceramic bi-pin socket
  • Prewired with 3 ft 18-2 SJT-W direct burial cord
  • Lamp sold separately

Common Uses:

  • In-ground landscape uplighting
  • Tree and architectural accent lighting
  • Low-voltage outdoor lighting projects

Technical Specifications:

  • Brand: Corona Lighting
  • SKU: CL-316B-AB
  • Finish: Antique Bronze
  • Housing: Injection molded composite
  • Faceplate: Diecast brass
  • Lens: Clear heat-resistant flat glass
  • Accepted Lamp: 12V MR16, 50W maximum
  • Wiring: 3 ft 18-2 SJT-W direct burial cord

Dimensions:

  • Overall Height: 4-5/8 in.
  • Diameter: 4-7/8 in.

Installation & Compatibility Note:

Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, burial or concrete mounting method, and local electrical requirements before installation. Concrete pour kit CX-237 is listed for concrete mounting applications.

FAQ

Is a lamp included?

No, the compatible MR16 lamp is sold separately.

What lamp type does it accept?

It is listed for compatible 12V MR16 lamps, 50W maximum.

Can it be installed in concrete?

It is listed for in-ground direct burial or concrete encasement; the CX-237 concrete pour kit is noted for concrete mounting.

Why Buy From Big Frog Supply?

Big Frog Supply provides clear product details, helpful support, and fast online ordering.

Housing: Injection molded composite for high UV stability.
Faceplate: Diecast brass, fitted to housing with silicone "O" ring gasket.
Finish: AB- Antique Bronze. Natural toning process. AB finish will vary due to artistic process.
Lens: Clear and heat resistant flat glass.
Socket: Top grade adjustable ceramic bi-pin socket.
Lamp: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard.
Gasket: Silicone “0” ring seals faceplate to housing providing weather tight protection.
Wiring: Fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord.
Mounting: In-ground direct burial or concrete encasement. For best results when mounting in concrete, use the concrete pour kit (CX-237)
Warranty: Limited lifetime warranty on fixture stainless steel faceplate and ten (10) years on housing against manufacturer's defects.

Overall Height: 4-5/8"
Diameter: 4-7/8"
