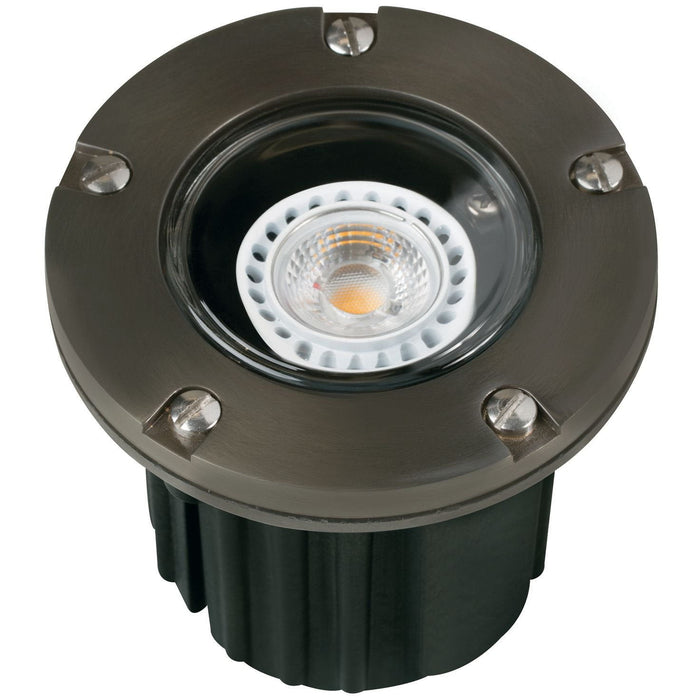

Corona Lighting CL-316B-GM Gun Metal MR16 Well Light, No Lamp

Brand: Corona Lighting | SKU: CL-316B-GM

Product Overview

The Corona Lighting CL-316B-GM is a gun metal MR16 well light that positions a low-voltage lamp at grade for directional landscape uplighting. Its composite housing is paired with a diecast brass faceplate and a flat, heat-resistant glass lens. An adjustable ceramic bi-pin socket accepts a compatible 12V MR16 lamp, sold separately, allowing the lighting designer to select the brightness, beam width, and color temperature that fit the tree, wall, column, or other feature being illuminated.

Plan the CL-316B-GM as part of a complete low-voltage system rather than as a self-contained light source. Confirm lamp dimensions, voltage, wattage, beam angle, and outdoor-fixture compatibility, and add the chosen lamp load to the transformer calculation. In-grade performance also depends on drainage, cable routing, service access, and the correct direct-burial or concrete installation method. For concrete applications, verify the listed CX-237 pour kit before construction. Select wire gauge and transformer taps with the cable run and expected voltage drop in mind.

Key Features:

  • Gun metal MR16 well light
  • Injection molded composite housing
  • Diecast brass faceplate with silicone O-ring gasket
  • Clear heat-resistant flat glass lens
  • Adjustable ceramic bi-pin socket
  • Prewired with 3 ft 18-2 SJT-W direct burial cord
  • Lamp sold separately

Common Uses:

  • In-ground landscape uplighting
  • Tree and architectural accent lighting
  • Low-voltage outdoor lighting projects

Technical Specifications:

  • Brand: Corona Lighting
  • SKU: CL-316B-GM
  • Finish: Gun Metal
  • Housing: Injection molded composite
  • Faceplate: Diecast brass
  • Lens: Clear heat-resistant flat glass
  • Accepted Lamp: 12V MR16, 50W maximum
  • Wiring: 3 ft 18-2 SJT-W direct burial cord

Dimensions:

  • Overall Height: 4-5/8 in.
  • Diameter: 4-7/8 in.

Installation & Compatibility Note:

Remote 12V transformer required. Confirm compatible lamp type, voltage range, transformer requirements, burial or concrete mounting method, and local electrical requirements before installation. Concrete pour kit CX-237 is listed for concrete mounting applications.

FAQ

Is a lamp included?

No, the compatible MR16 lamp is sold separately.

What lamp type does it accept?

It is listed for compatible 12V MR16 lamps, 50W maximum.

Can it be installed in concrete?

It is listed for in-ground direct burial or concrete encasement; the CX-237 concrete pour kit is noted for concrete mounting.

Why Buy From Big Frog Supply?

Big Frog Supply provides clear product details, helpful support, and fast online ordering.

Housing: Injection molded composite for high UV stability.
Faceplate: Diecast brass, fitted to housing with silicone "O" ring gasket
Finish: GM- Gun Metal. Natural toning process. GM finish will vary due to artistic process.
Lens: Clear and heat resistant flat glass.
Socket: Top grade adjustable ceramic bi-pin socket.
Lamp: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard.
Gasket: Silicone “0” ring seals faceplate to housing providing weather tight protection.
Wiring: Fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord.
Mounting: In-ground direct burial or concrete encasement. For best results when mounting in concrete, use the concrete pour kit (CX-237)
Warranty: Limited lifetime warranty on fixture stainless steel faceplate and ten (10) years on housing against manufacturer's defects.

Overall Height: 4-5/8"
Diameter: 4-7/8"
